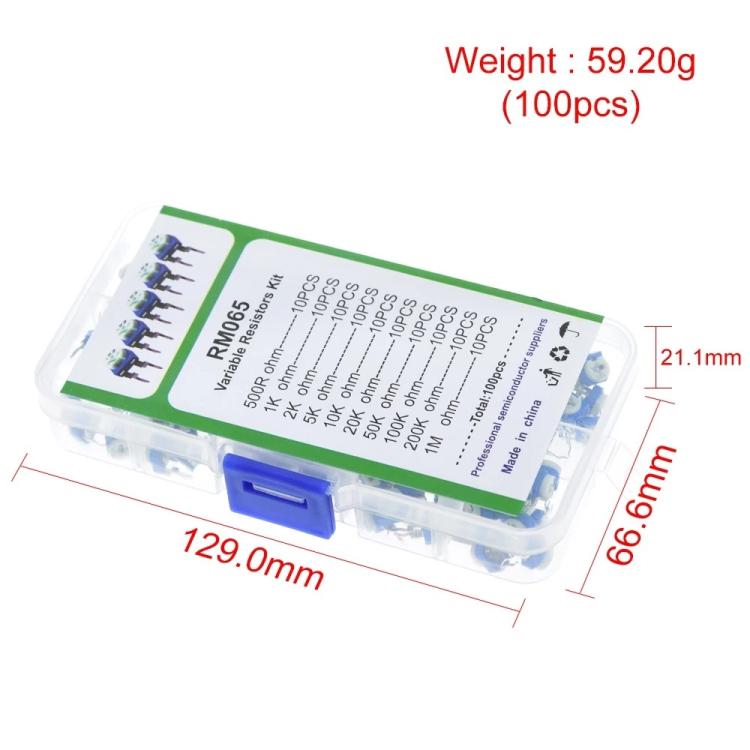

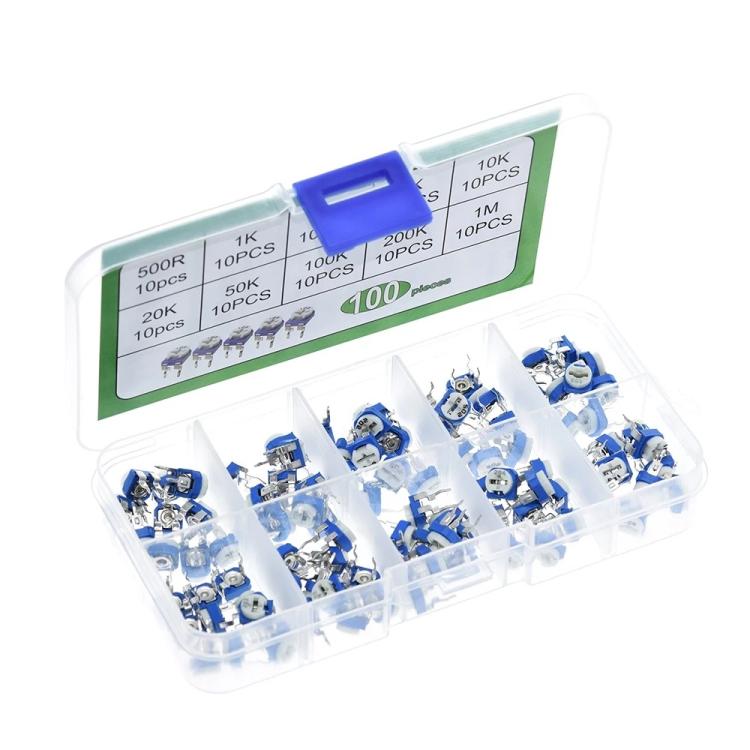

100pcs /Set Adjustable Resistor Box Kit(RM065)

The Adjustable Resistor Box Kit (RM065) is a set of 100 adjustable resistors designed for various electronic applications. It is suitable for use in home appliances and the electronic security industry, including televisions and induction cookers.

• Product Type: Adjustable Resistor Box Kit (RM065)
• Material: Bakelite
• Brush Material: Copper
• Resistance Range: 100 Ohms to 1 Mega Ohm
• Resistance Variation Characteristics: B
• Operating Voltage: 50V (Maximum)
• Rated Power: 0.1W
• Residual Resistance: No more than 5% of nominal resistance, maximum 30 Ohms
• Rotational Angle: 200 degrees
• Rotational Torque: 60-150 g/cm
• Stop Strength: 500 g/cm
• Mechanical Strength: Can withstand 1 kg of pressure without breaking
• Rotational Life: 15% resistance change after 100 rotations without load
• Load Life: 5% resistance change after 3 hours of rated power
• Applications: Suitable for home appliances and electronic security devices
