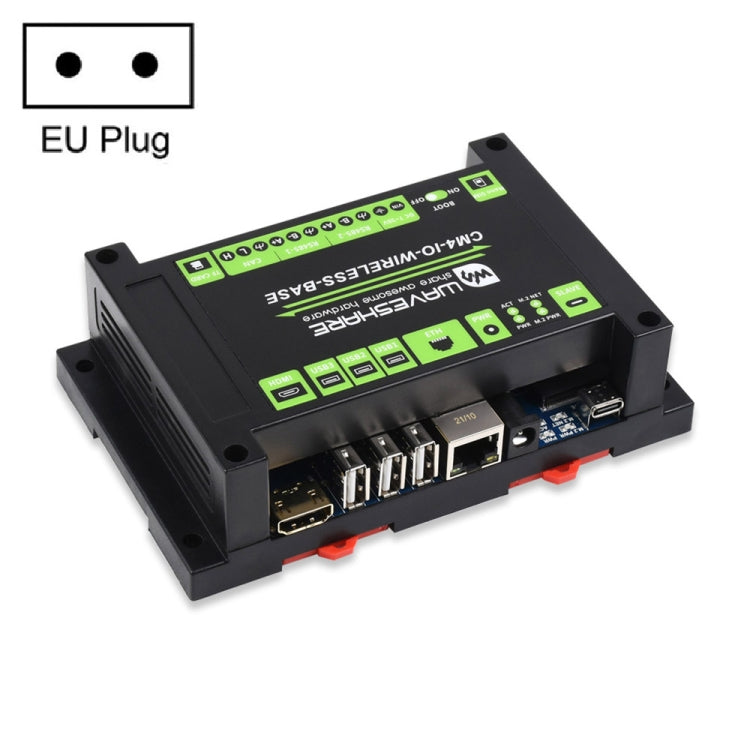

Waveshare Industrial IoT Wireless Expansion Module for Raspberry Pi CM4(EU Plug)
Waveshare Industrial IoT Wireless Expansion Module for Raspberry Pi CM4(EU Plug)
Available to order
Processing time: 1-3 days
Couldn't load pickup availability
Estimated delivery: 6-13 working days
Ships from China (Standard) • Import Taxes & Duties Excluded
Description
The Waveshare Industrial IoT Wireless Expansion Module is an industrial expansion module designed for the Raspberry Pi CM4. It is suitable for applications such as building IoT gateways, 4G/5G routers, and IoT data acquisition systems.
- Product Type: Mini PC Accessories

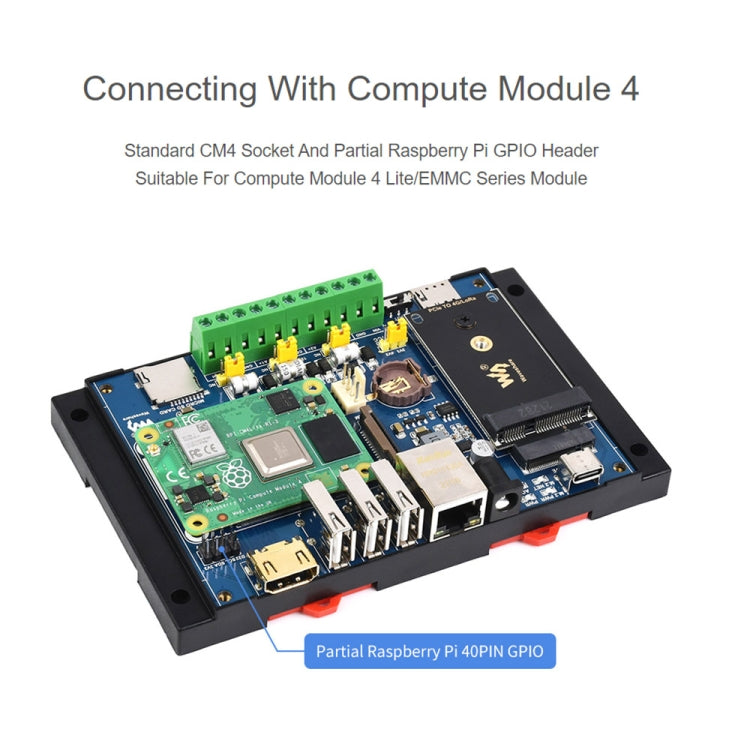

- Compatibility: Raspberry Pi CM4
- Key Feature: Industrial expansion module

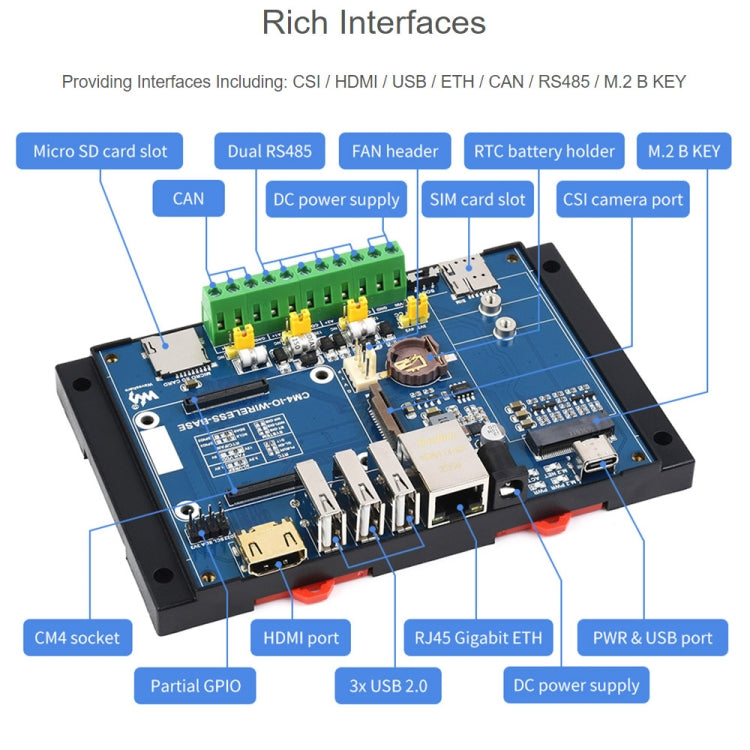

- Networking Interfaces: Gigabit Ethernet RJ45, M.2 B KEY / Mini-PCIe for 5G / 4G / LoRa wireless module, Nano-SIM card slot
- USB Ports: 3 x USB 2.0
- PIN Header: Non-isolated RS485 x 2, non-isolated CAN x 1, GPIO pins
- Camera Interface: MIPI CSI-2 x 1 (15pin 1.0mm FPC connector)
- Video Output: HDMI x 1, supports 4K at 30fps
- RTC: Real-time clock with battery socket
- Storage: MicroSD card socket for Compute Module 4 Lite variants
- Fan Header: 5V/12V with speed adjustment
- Power Input: 5V or 7~36V
- Dimensions: 145 x 90 x 40 mm
- Package Contents: CM4-IO-WIRELESS-BASE x 1, PCIe to 4G/LoRa adapter x 1, screwdriver x 1, screws pack x 1, 12V 2A power adapter x 1
