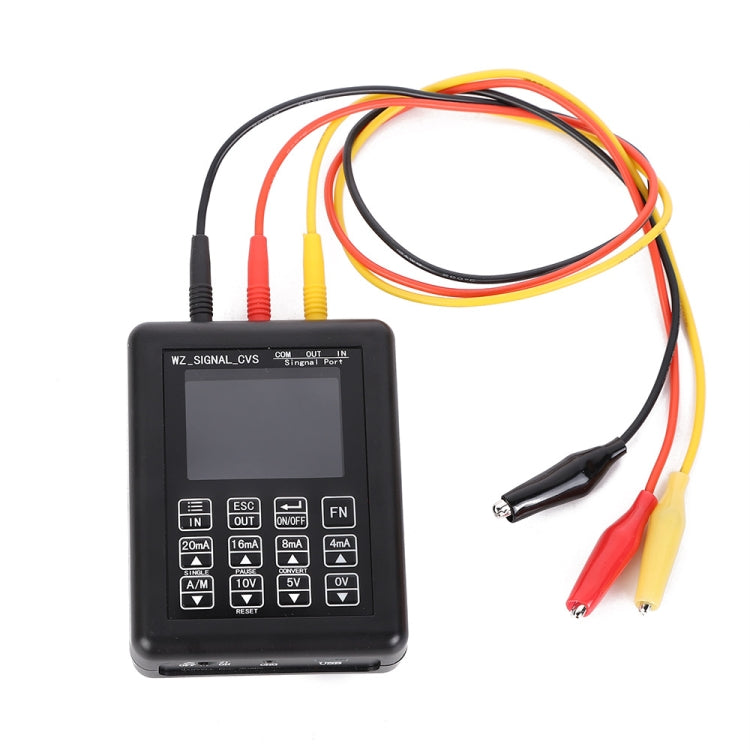

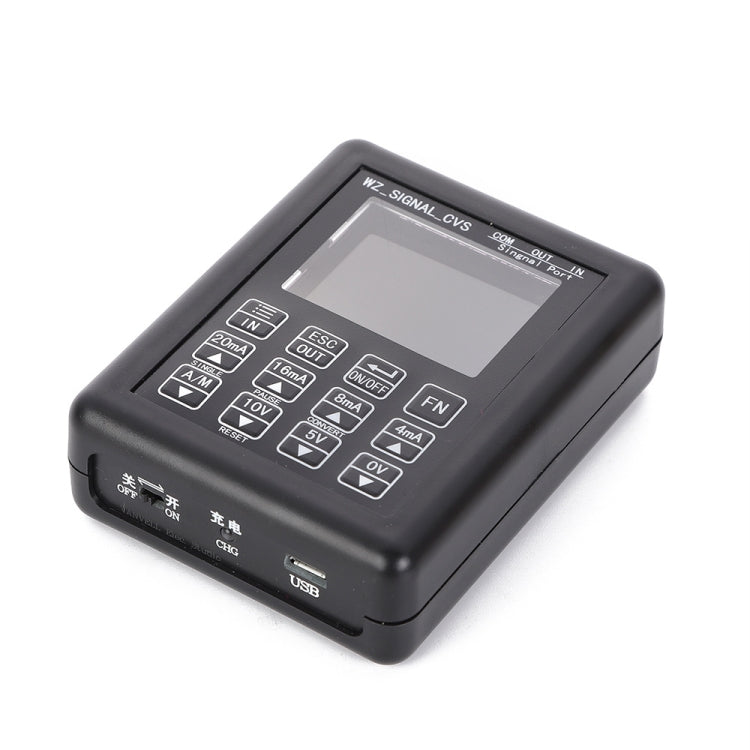

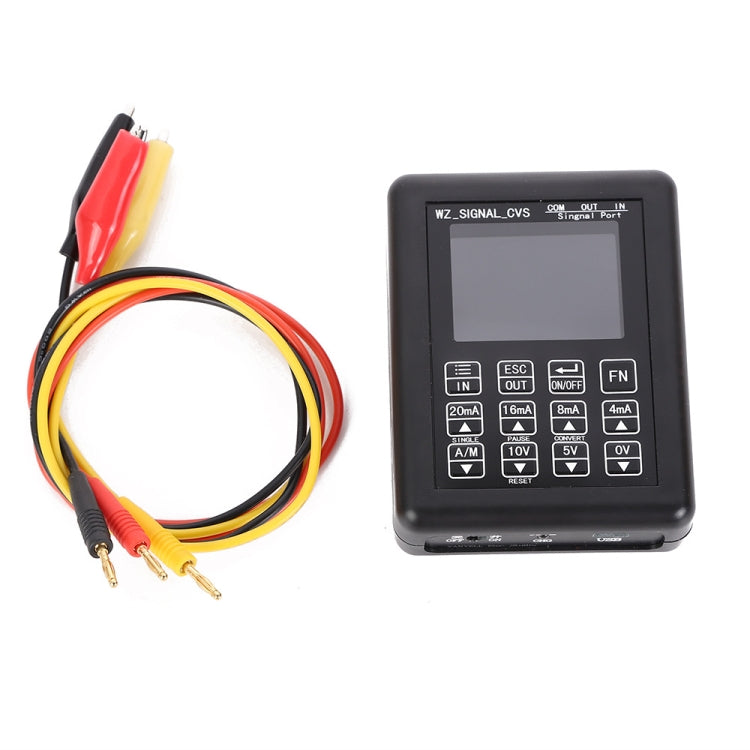

0-10V 4-20mA Signal Generator Adjustable Current Voltage Analog Simulator

Name: 0-10V 4-20mA Signal Generator Adjustable Current Voltage Analog Simulator
Brand: PMC Jewellery
SKU: TBD06022743
Price: 1179.00 ZAR
Availability: InStock

R 1,179.00

Sale Sold out

FREE DELIVERY on all orders.

⚫🖤🟡Add to Cart Now for Cyber Monday Discounts! Ends Today! 🟡🖤⚫

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Active current output: Range: 0-24mA; Resolution: 0.01mA; Load (max): 750 ohms
2. Passive current output: Range: 0-24mA; Resolution: 0.01mA; External power supply up to 30V.
3. Voltage output range: 0-12V; Resolution: 0.01V; Current (max) 30mA
4. 24V voltage output: drive current: 24mA.
5. Current input measurement: Range: 0-24mA; Resolution: 0.01mA; Input impedance: 100Ω
6. Voltage input measurement: Range: 0-30V; Resolution: 0.01V; Input impedance: 2.5MΩ
7. Working environment: 0-50 degrees Celsius
8. Protection voltage: 30V
9. Product size: 90 x 70 x 28mm
