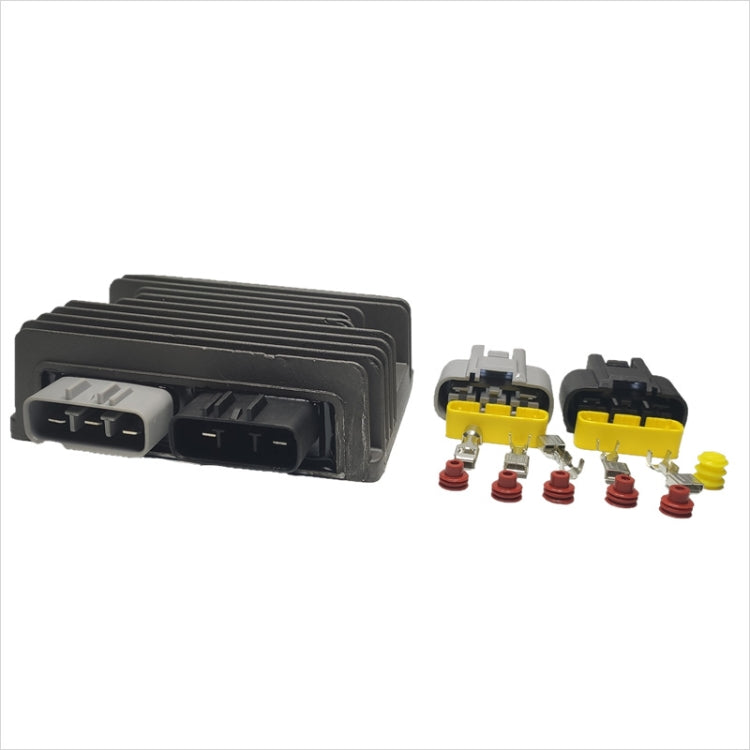

2001E.1 Motorcycle Rectifier For Can-Am Commander 800 4X4 710001191 Bombardier(Rectifier + Plug)
2001E.1 Motorcycle Rectifier For Can-Am Commander 800 4X4 710001191 Bombardier(Rectifier + Plug)
hurry! almost sold out...
Couldn't load pickup availability
FREE Shipping
FREE Shipping
FREE SHIPPING on all orders. Fully Insured.
Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time 7 - 15 working days.
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
1. Weight: 560g
2. Output voltage: 14.5v
3. Output current: 50A
Installation Precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is conducive to heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. Do not press other wires between the rectifier and the frame
5. There should be a fuse protection device between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged and the voltage is too high and other electrical components are burnt out
Applicable models:
For CAN-AM ATV Outlan r 800R EFI XT-P DPS FH019AA 710001191
For 2015 Can-Am Comman r 800 4X4
For 2015 Can-Am Comman r 800 4x4 DPS
For 2015 Can-Am Comman r 800 4x4 XT
For 2015 Can-Am Comman r 800 4x4 XT rear opening differential
For 2014 Can-Am Comman r 800 4X4
For 2014 Can-Am Comman r 800 4x4 DPS
For 2014 Can-Am Comman r 800 4x4 XT
For 2014 Can-Am Comman r 800 4x4 XT rear opening differential
For 2011 Can-Am Comman r 800 4x4 XT
For 2017 Can-Am Comman r 800R 4X4
For 2017 Can-Am Comman r 800R 4x4 DPS
For 2017 Can-Am Comman r 800R 4x4 XT DPS
For 2016 Can-Am Comman r 800R 4X4
For 2016 Can-Am Comman r 800R 4x4 DPS
For 2016 Can-Am Comman r 800R 4x4 XT Camouflage DPS
For 2016 Can-Am Comman r 800R 4x4 XT DPS
For 2015 Can-Am Comman r 800R 4X4
For 2015 Can-Am Comman r 800R 4x4 DPS
For 2015 Can-Am Comman r 800R 4x4 XT
For 2013 Can-Am Comman r 800R 4x4 DPS EFI
