BENETECH GM3125 High Voltage Insulation Tester Resistance Tester
BENETECH GM3125 High Voltage Insulation Tester Resistance Tester
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R1459.37/mo 3 months
- R737.94/mo 6 months
- R389.46/mo 12 months
- From R1459.37/month over 3 months, or as low as R389.46/month over 12. Total repayable over 12 months: R4673.52. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Excluded
Delivery: 6-13 working days
Available To Order CHNThis item is shipped from China. Learn More
Processing time: 1-3 days
Couldn't load pickup availability
Ships from International Fulfilment Center (Standard)
Description

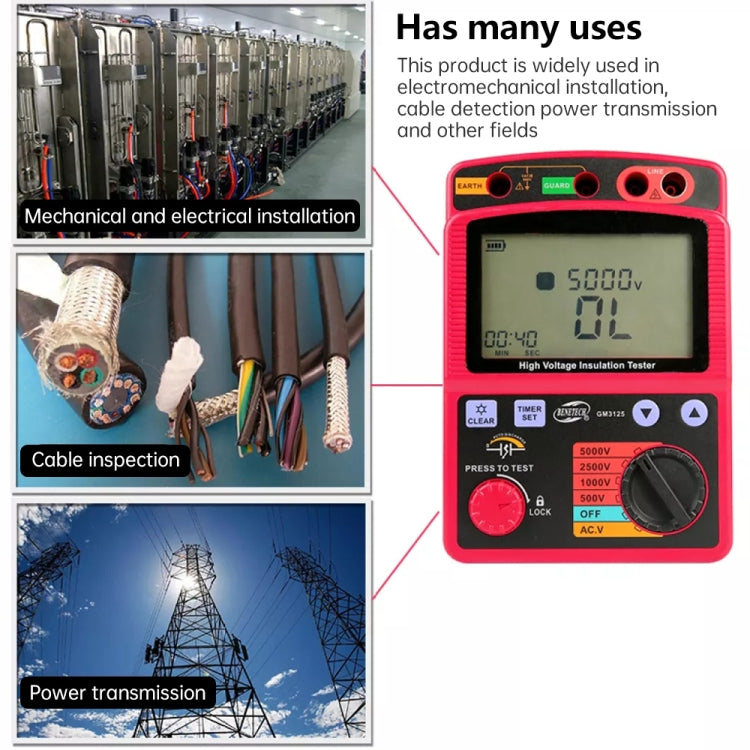

High Voltage Insulation Tester designed to measure insulation resistance in electrical systems. It is suitable for testing insulation in various applications, including electrical maintenance and troubleshooting.
- Auto discharge function for safe operation
- LCD backlight function
- Digital display with maximum 999 counts
- Live circuit warning symbols with audio alerts
- Automatic shutdown after 10 minutes of inactivity
- Set test time function for automatic measurements
- Low battery indicator
- PI test for Polarization Index measurement
- Automatic resistance ratio measurement at two points in time
- External DC power supply (DC12V, 1A power adapter) compatible
- Over range indication: OL mark for insulation resistance, LO mark for voltage
- Auto-ranging feature with upper range shift to 1000 counts
- Sample rate: 0.5-10 times per second
- Operable altitude: ≤ 2000m (indoor use)
- Operating temperature: 0-40°C, humidity ≤ 85%
- Storage temperature: -20-60°C, humidity ≤ 90%
- Overload protection: Insulation resistance AC 1200V / 10s, Voltage AC 720V / 10s
- Voltage resistance: AC 8320 (50/60Hz) for 5 seconds
- Insulation resistance: ≥ 1000M ohms / DC 1000V

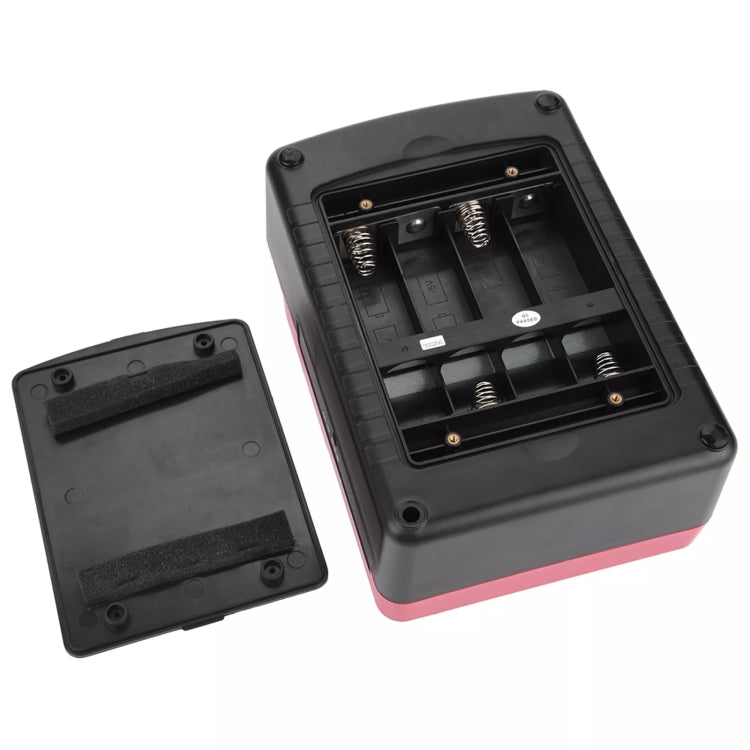

- Power supply: DC 12V (8 x 1.5V LR14 batteries included)
- Dimensions: 153mm x 96mm x 220mm
- Weight: 1032g (without batteries and test wires)
