Description

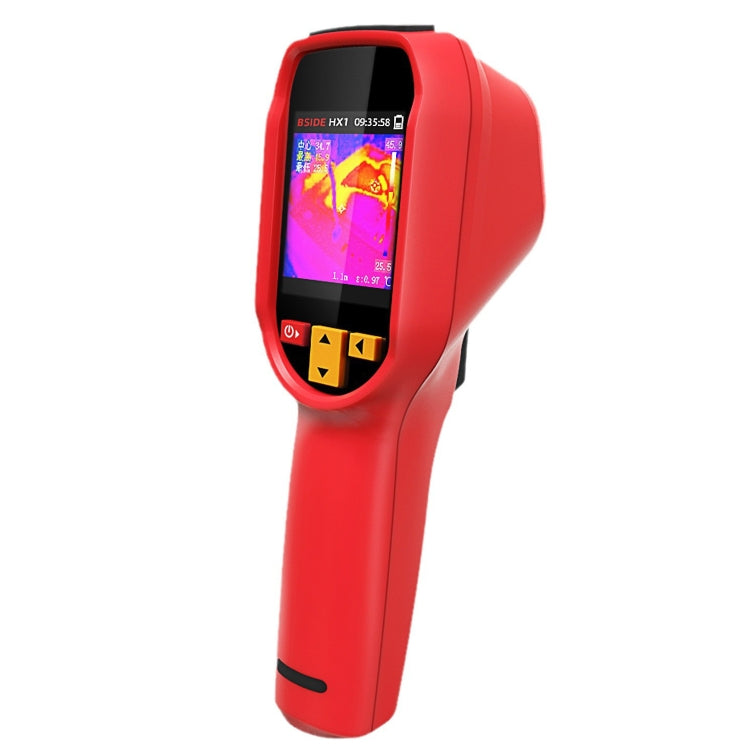

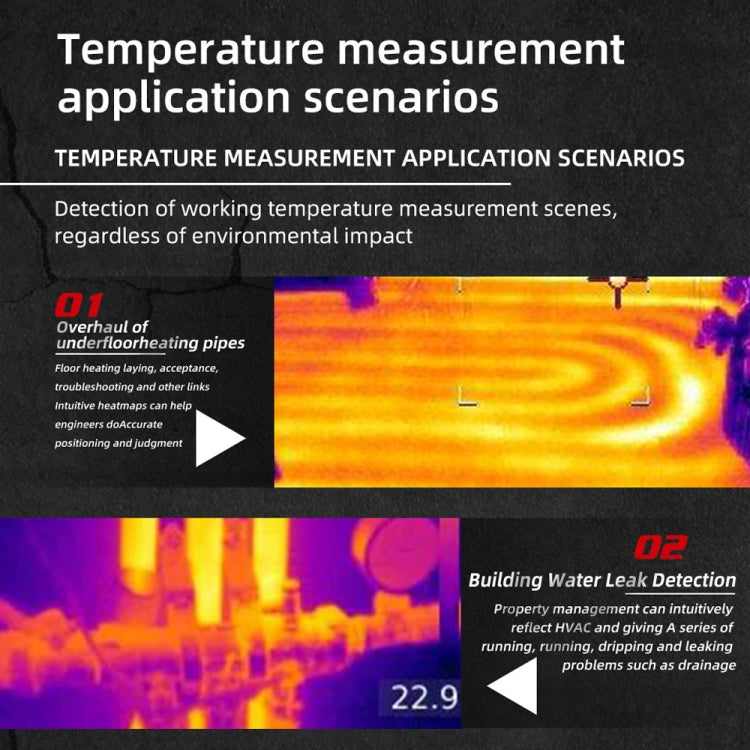

The BSIDE HX1 Handheld Thermal Imaging Device is a non-contact thermometer designed for temperature measurement and thermal imaging. It is suitable for applications such as electrical inspections, HVAC diagnostics, and building inspections.

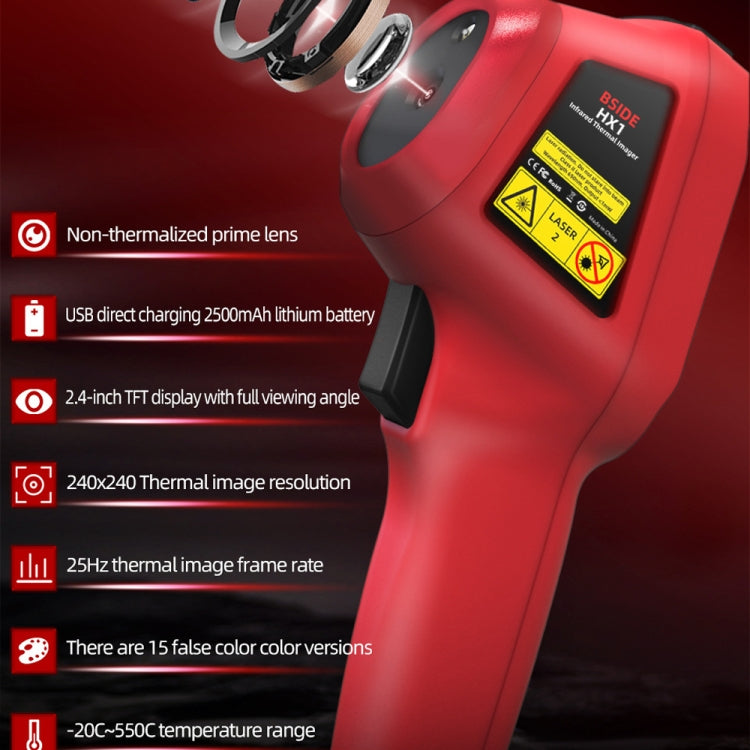

- Sensor type: vanadium oxide (VOx) microbolometer
- Response band: 8-14um
- Thermal image resolution: 240 x 240 pixels
- Noise equivalent temperature difference: within 60mK (25 degrees Celsius, F 1.0)
- Field of view (FOV): 50.0 degrees (H) x 50 degrees (V) / 72.1 degrees (D)
- Spatial resolution: 8.89 mrad
- Frame rate: 25Hz
- Focal length of imaging lens: 1.35mm
- Temperature measurement focal length: adjustable from 0.3m to 3m
- Temperature measurement range: -20 to 550 degrees Celsius
- Temperature measurement accuracy: ±2 degrees Celsius or ±2% of the reading
- Temperature measurement units: degrees Celsius, degrees Fahrenheit, Kelvin
- Temperature measurement resolution: 0.1 degrees Celsius
- Emission rate: adjustable from 0.01 to 1.00

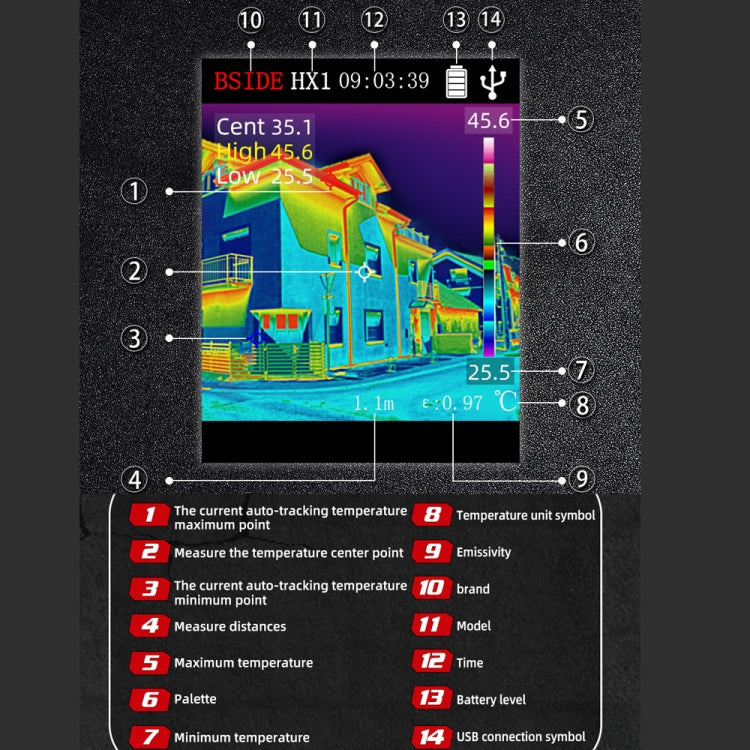

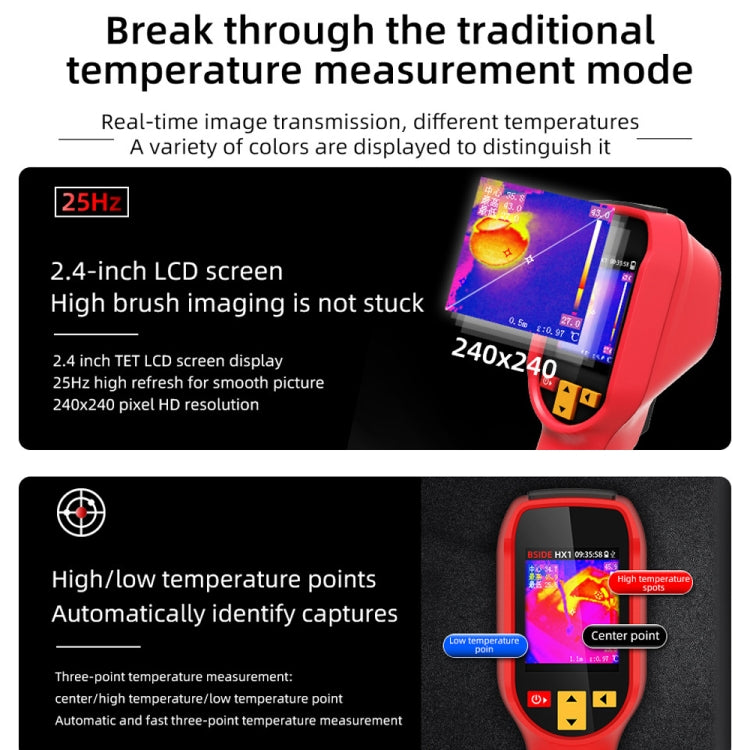

- Temperature measurement display: center point temperature measurement, high and low temperature tracking

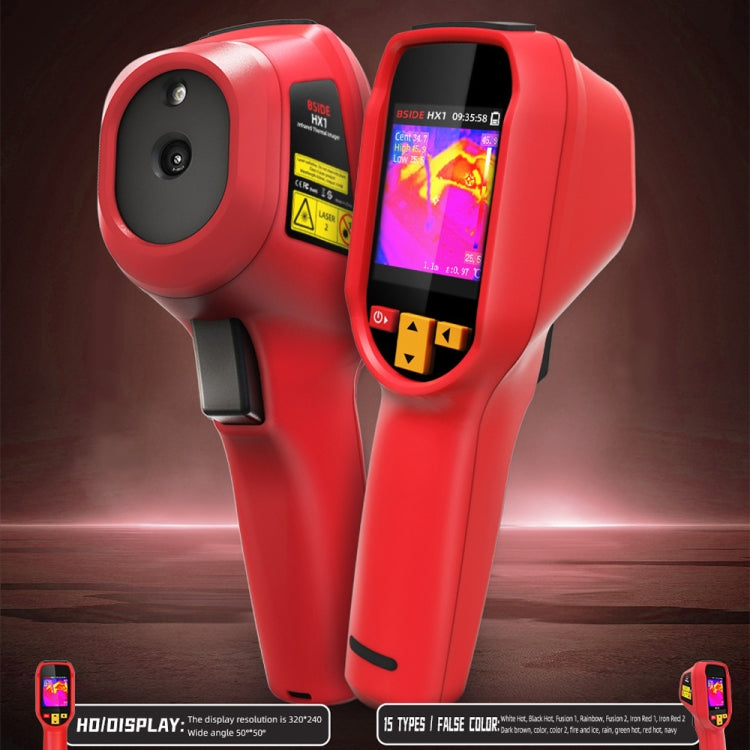

- Display: 2.4 inch TFT LCD
- Display resolution: 320 x 240
- Laser indication: supported

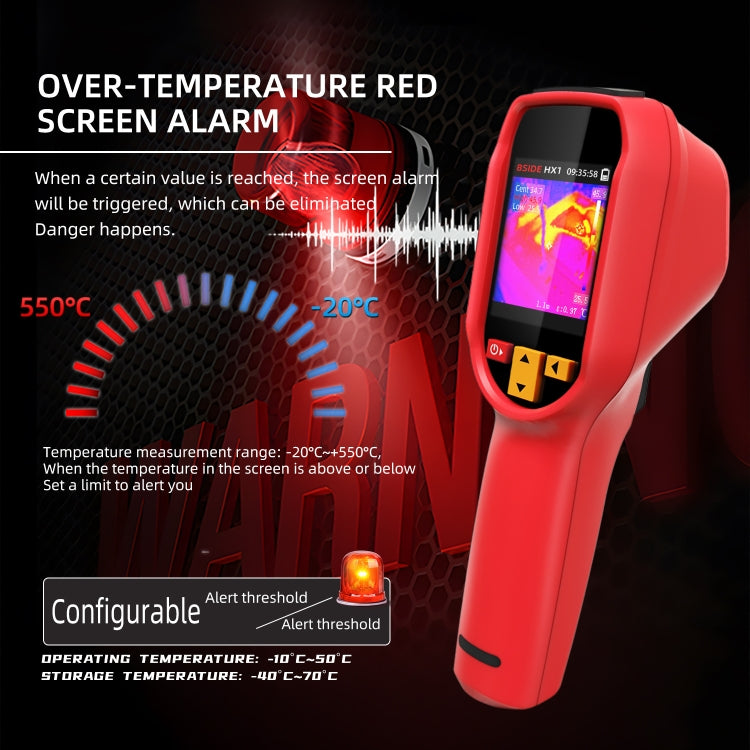

- Temperature alarm: screen font color alarm

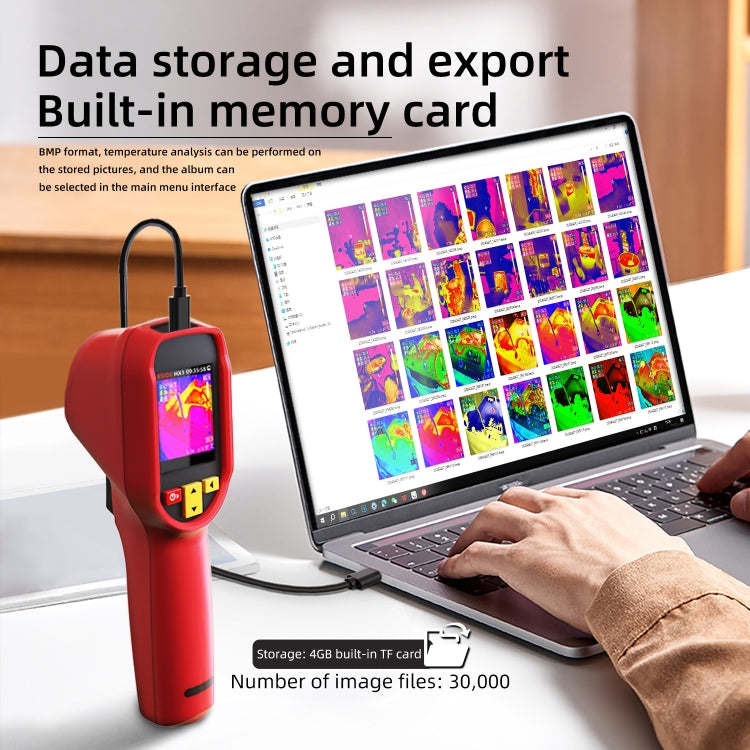

- Image storage: built-in memory card
- Number of image files: 30000
- Image format: BMP
- Focus mode: focus-free
- Hardware interface: Type-C USB

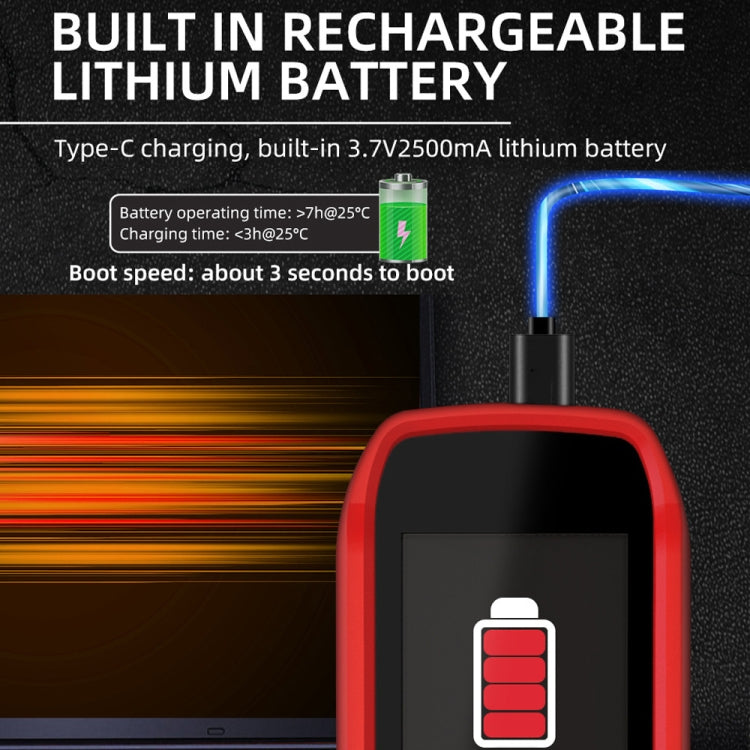

- Battery type: rechargeable lithium battery (3.7V/2500mAh)
- Battery operating time: more than 7 hours (at 25 degrees Celsius)
- Charging time: less than 3 hours (at 25 degrees Celsius)
- Charging voltage/current: 5V/2A
- Auto shutdown: configurable (10/20/30/40/50/60 minutes)
- Operating temperature: -10 to 50 degrees Celsius
- Storage temperature: -40 to 70 degrees Celsius
- Operating humidity: within 85% RH (non-condensing)

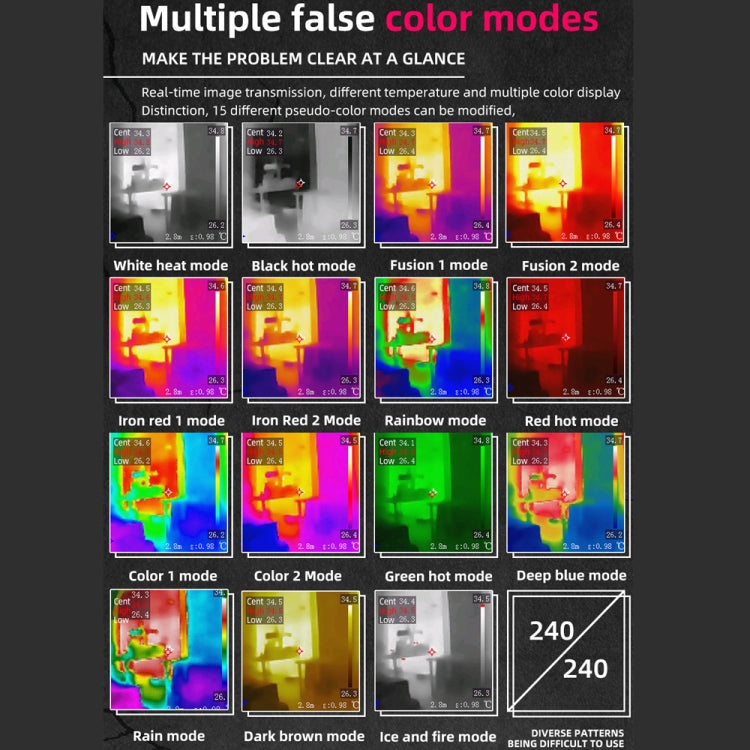

- Color palette options: white hot, black hot, fusion 1, rainbow, fusion 2, iron-red 1, iron-red 2, sepia, color 1, color 2, ice and fire, rain, green hot, red hot, dark blue

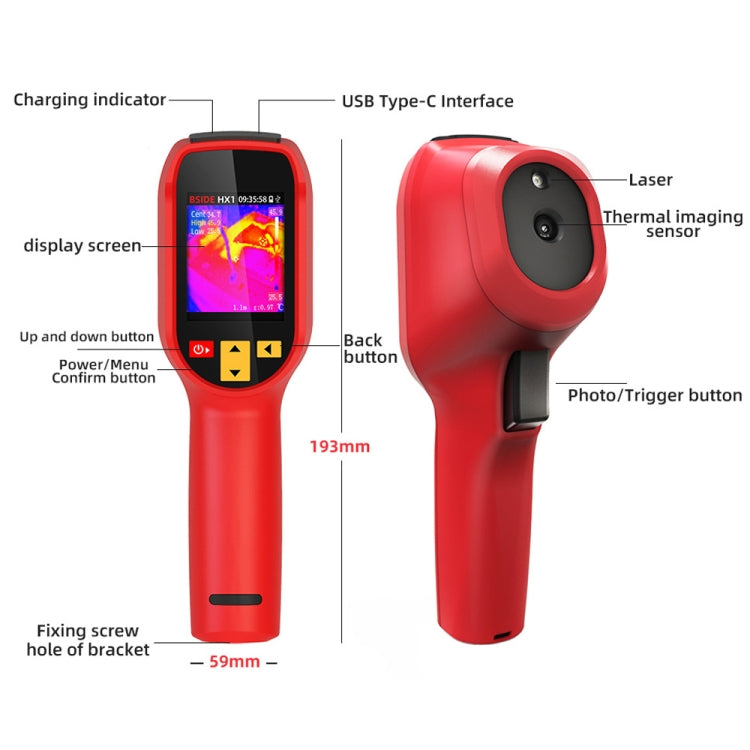

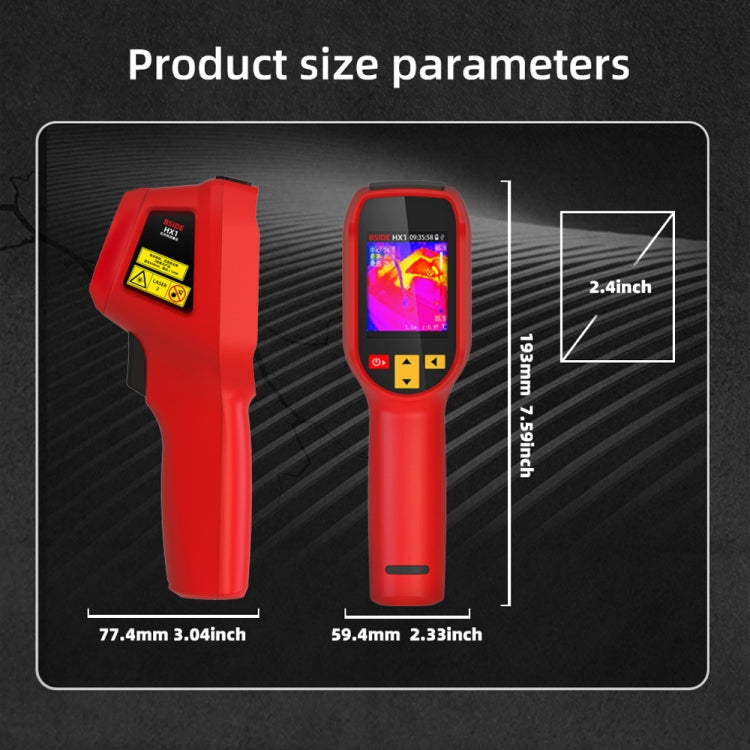

- Dimensions: approximately 19.3 x 5.94 x 7.74 cm
- Weight: approximately 277 g

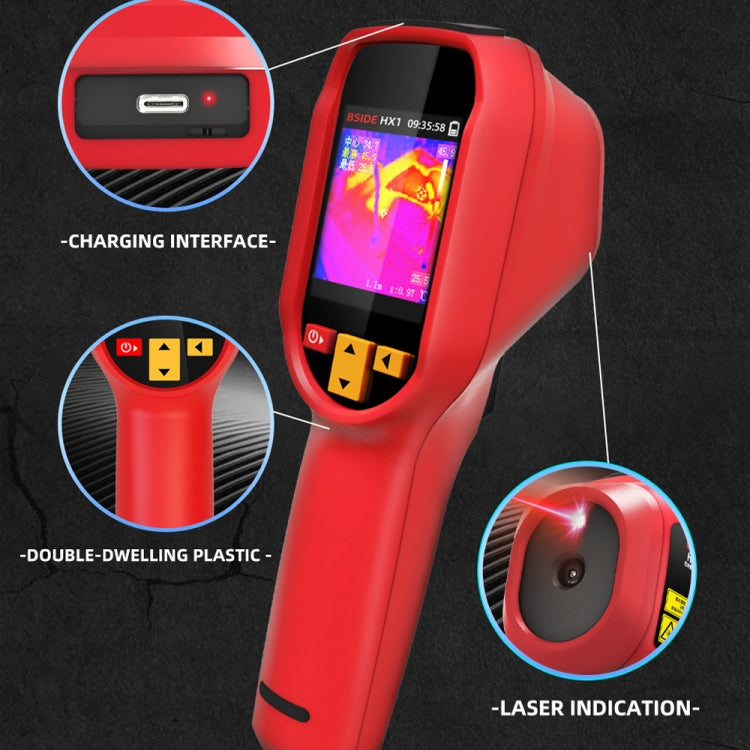

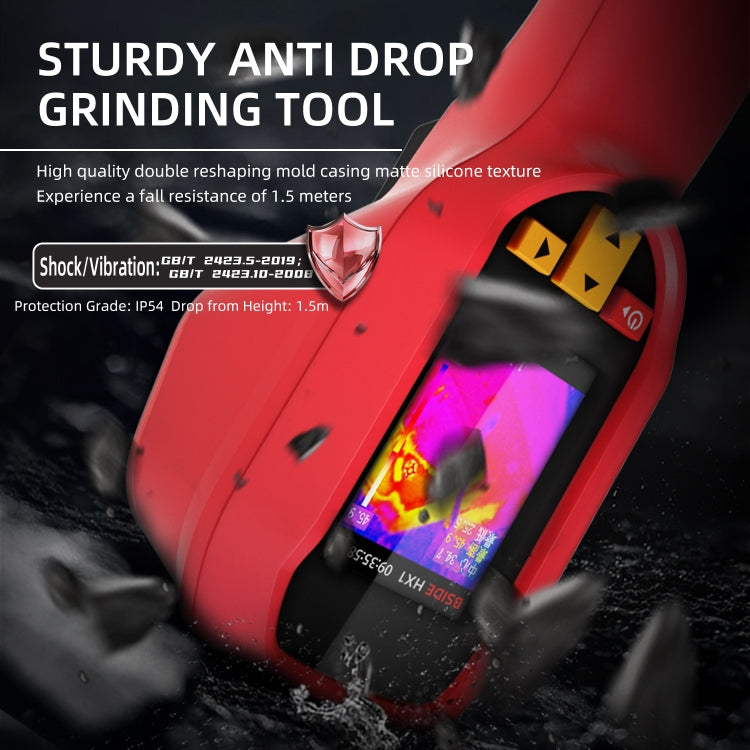

- Features: infrared thermal camera for surface temperature detection, full-viewing angle TFT color LED screen, real-time image transmission, over-temperature red screen alarm, double plastic mold case with frosted silicone texture
