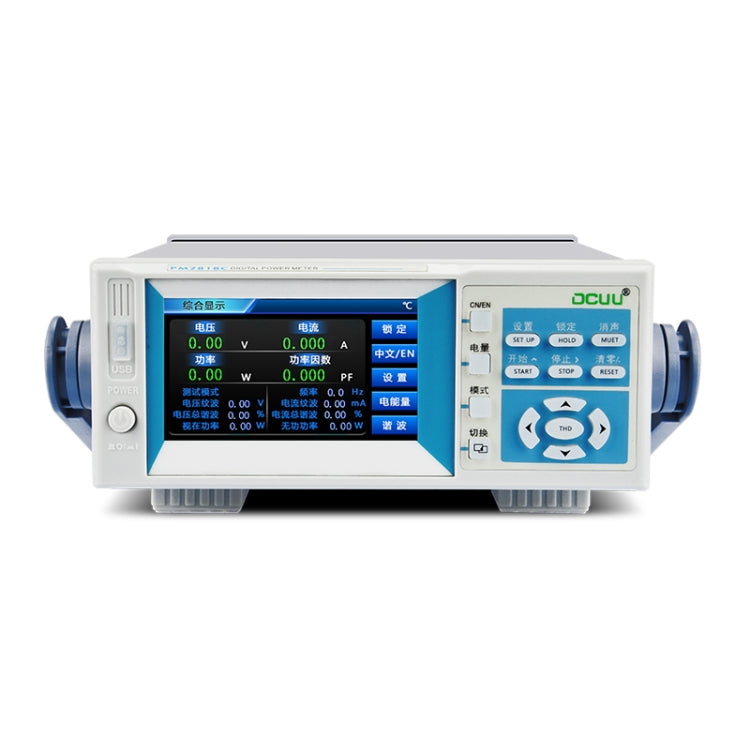

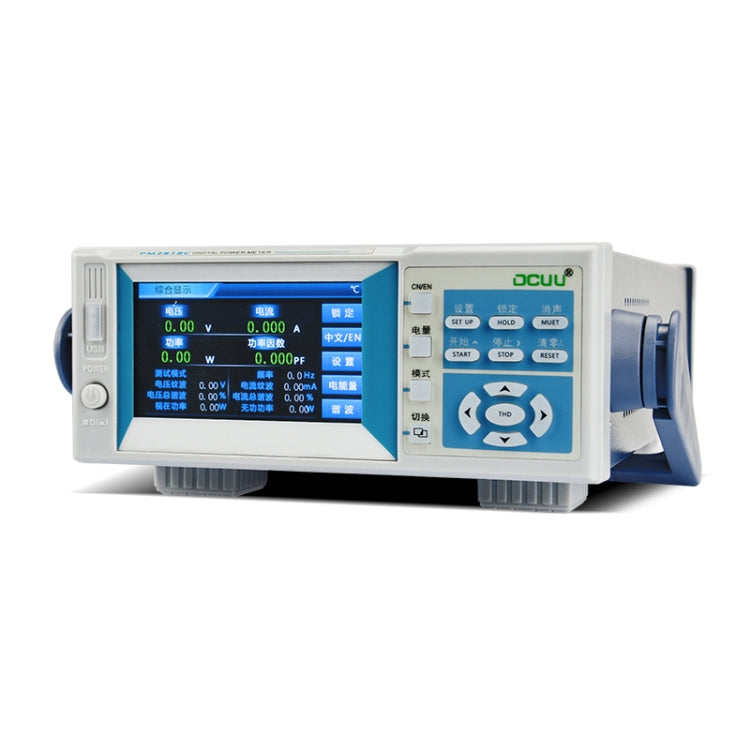

DCUU PM2818C AC 20A Intelligent Electrical Parameters Measuring Instrument (US Plug)

The DCUU PM2818C AC 20A Intelligent Electrical Parameters Measuring Instrument is a current and voltage tester. It is designed for everyday use to measure various electrical parameters including voltage, current, and power.

• Product Type: Current & Voltage Tester
• Display: 4.3-inch color liquid crystal display
• Measurement Data: Voltage, current, power, power factor, frequency, harmonics, electric energy, voltage ripple, current ripple, apparent power, reactive power, peak voltage, peak current, average power
• Input Voltage: 3.0V~600V
• Current Range: 5mA~20A

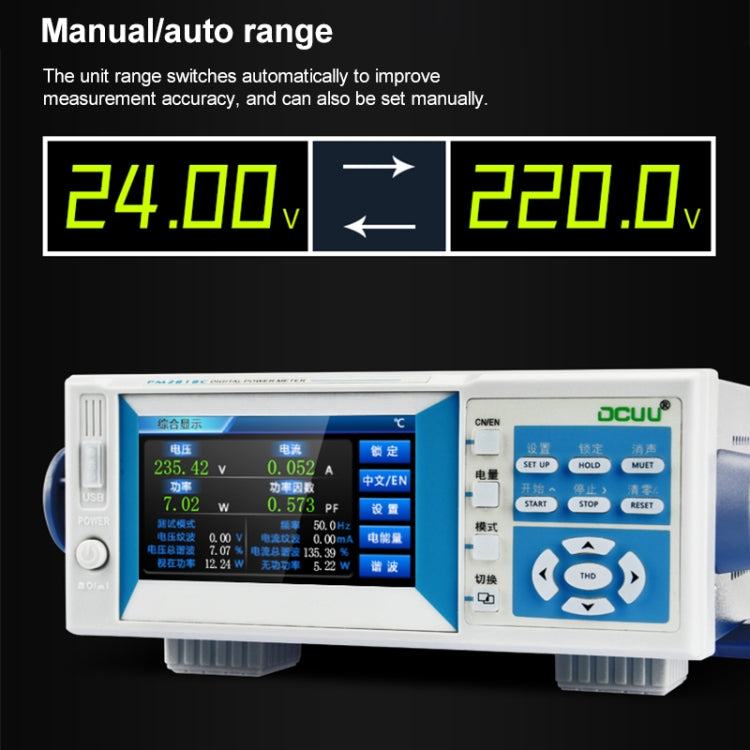

• Range Switching: Automatic
• Measurement Mode: AC
• Power Factor: -1.000~1.000
• Frequency Range: AC: 45Hz~65Hz, bandwidth 5Khz

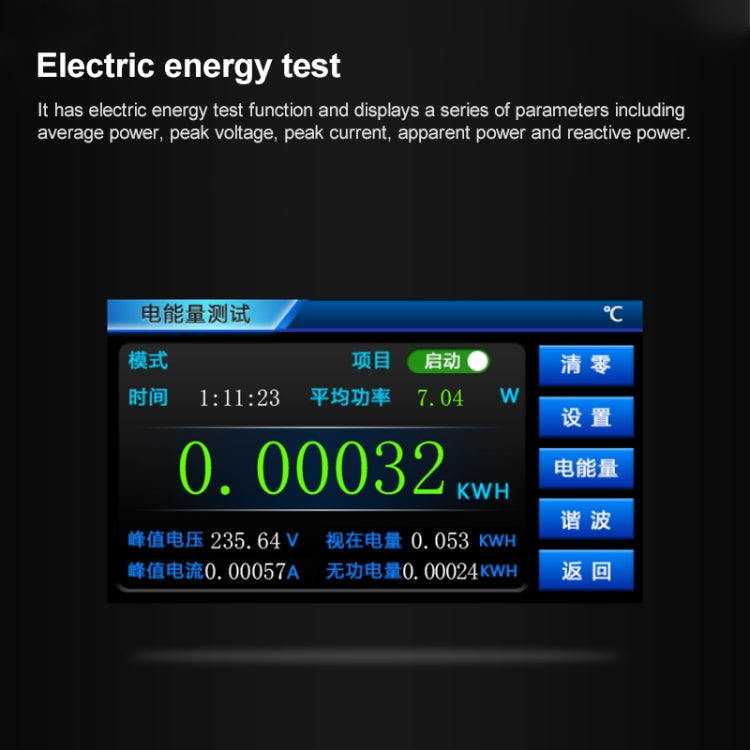

• Electric Energy Measurement: +/-0-999.999kWh

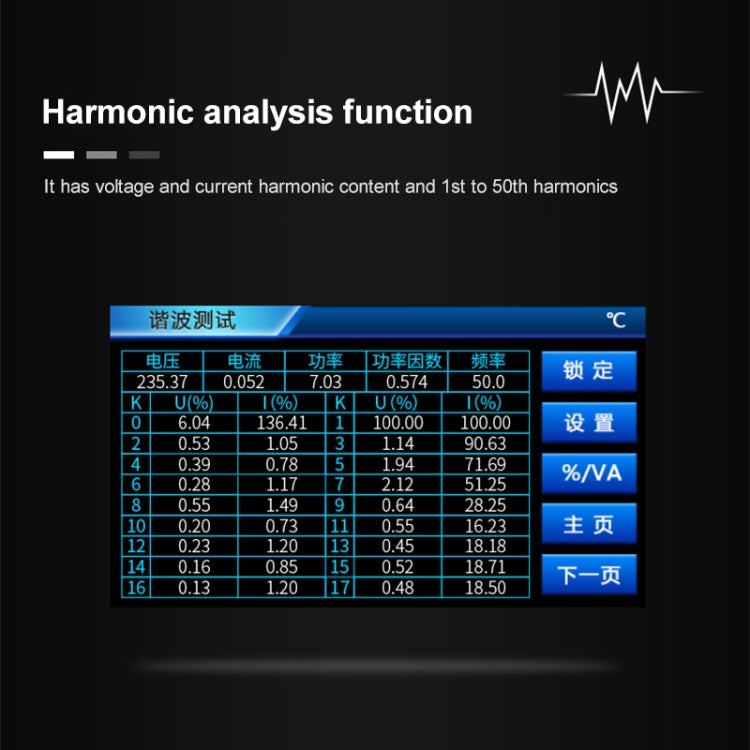

• Harmonic Analysis: Displays total harmonics and 2~50th harmonic components
• Measurement Accuracy: +/- (0.4% reading + 0.1% range + 1 word)

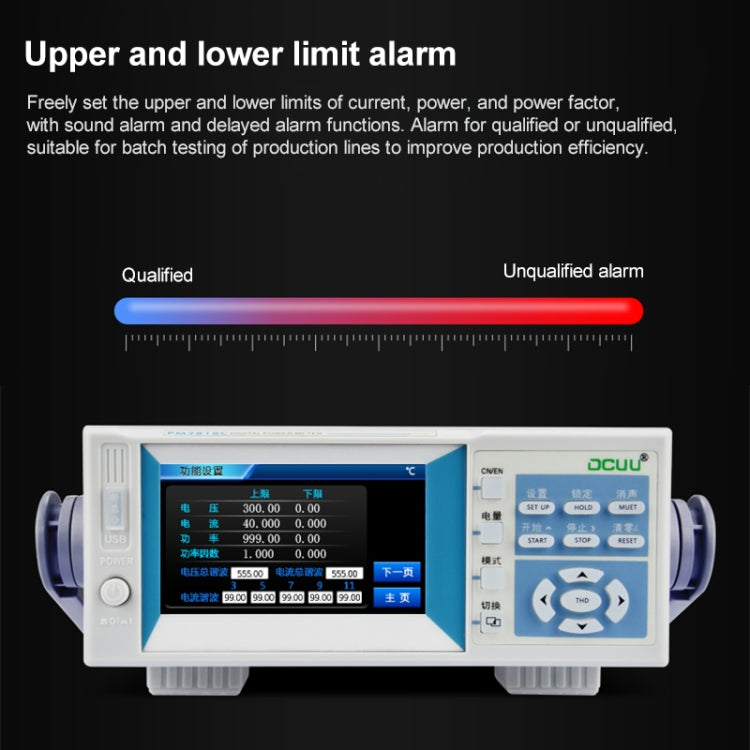

• Upper and Lower Limit Judgment: Current and power upper and lower limit setting, judgment and alarm functions
• Latch Function: Data fluctuations for easy reading
• Measurement Speed: 5 times/second
• Dimensions: Width x Height x Depth: 213 x 104 x 470mm
• Weight: 3KG
• Package List: Host x 1, Power cord x 1, Product manual x 1, Product certificate x 1
