Description

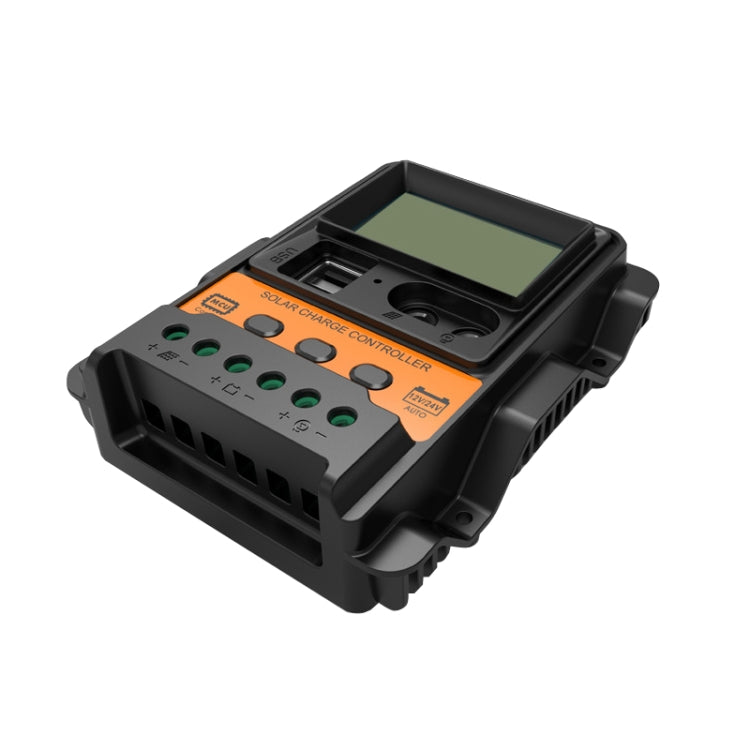

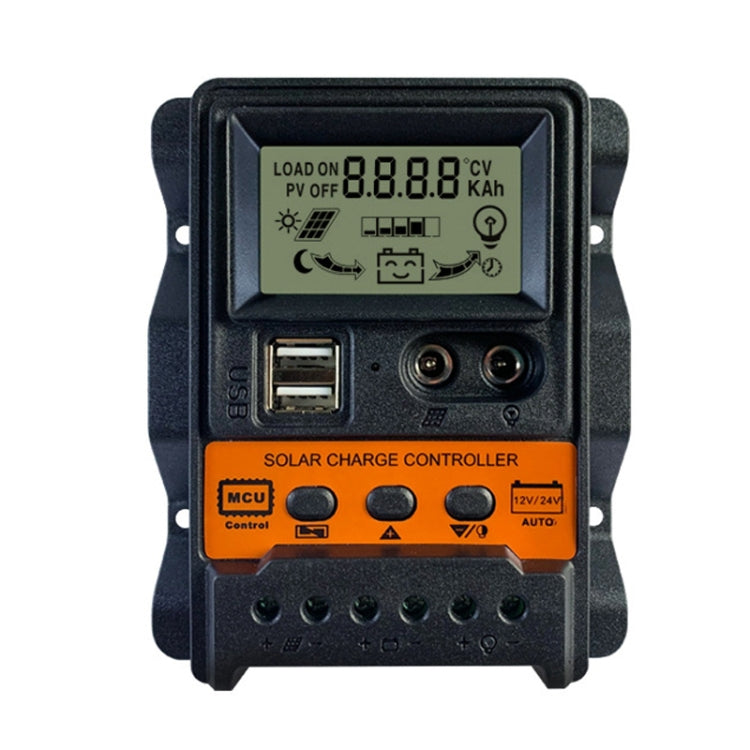

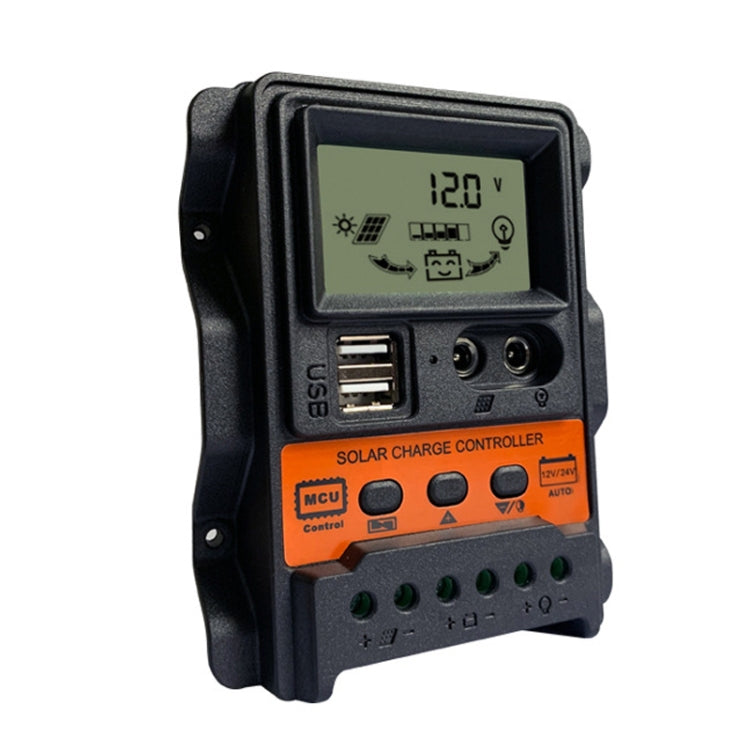

The Dual DC Current 12V/24V Solar Controller is designed for managing solar power generation systems. It automatically adapts to 12V or 24V systems, ensuring efficient charging and discharging of batteries.
- Product Type: Solar Controller
- Compatibility: 12V/24V systems
- Material: Industrial-grade components
- System Voltage: 12V/24V automatic adaptation
- Rated Charging Current: 20A
- Rated Discharge Current: 10A
- Photovoltaic Voltage: 23V for 12V battery; 46V for 24V battery
- Boost Charging Voltage: 14.4V
- Float Voltage: 13.7V (default, adjustable)
- Discharge Cut-off Voltage: 10.7V (default value, adjustable)
- Discharge Recovery Voltage: 12.6V (default value, adjustable)
- Charging Recovery Voltage: 13V
- Photovoltaic Panel Light-Controlled Threshold: 8V for light-on and light-off (with delay)
- USB Output: 2 USB outputs, 5V/2.5A
- Standby Current: Less than 10mA
- Working Temperature: -35 to 60 degrees Celsius
- Size: 125x112x34mm
- Weight: 179g

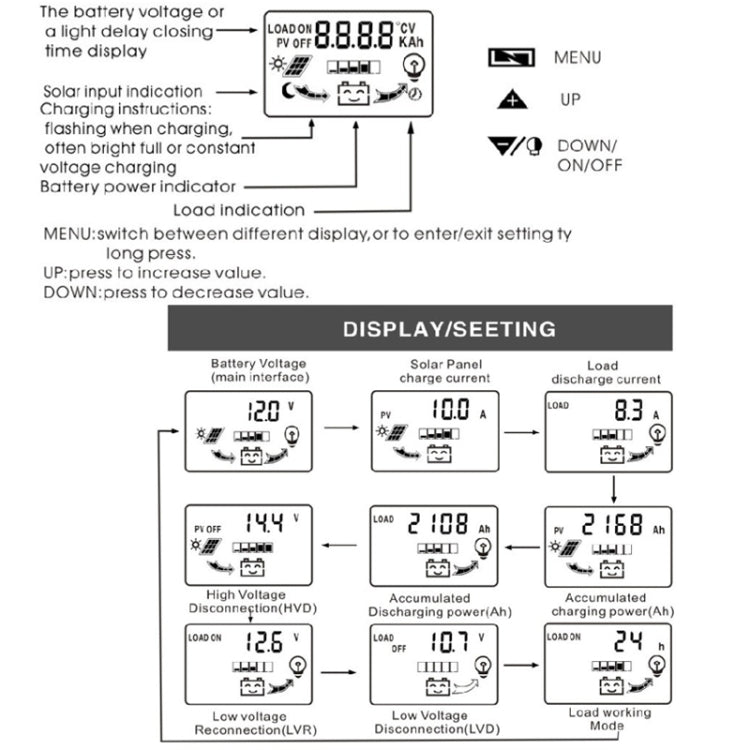

- Features: Industrial-grade main control chip, large-screen LCD display, charging and discharging current display, cumulative power generation and discharge power query, temperature display, light control with delay, adjustable charging and discharging parameters, power-off memory, dual USB output supporting Apple mobile phone charging, complete 3-stage charging management, built-in over-current, short-circuit protection, open-circuit protection, reverse connection protection, anti-backflow circuit, ultra-low heat generation.

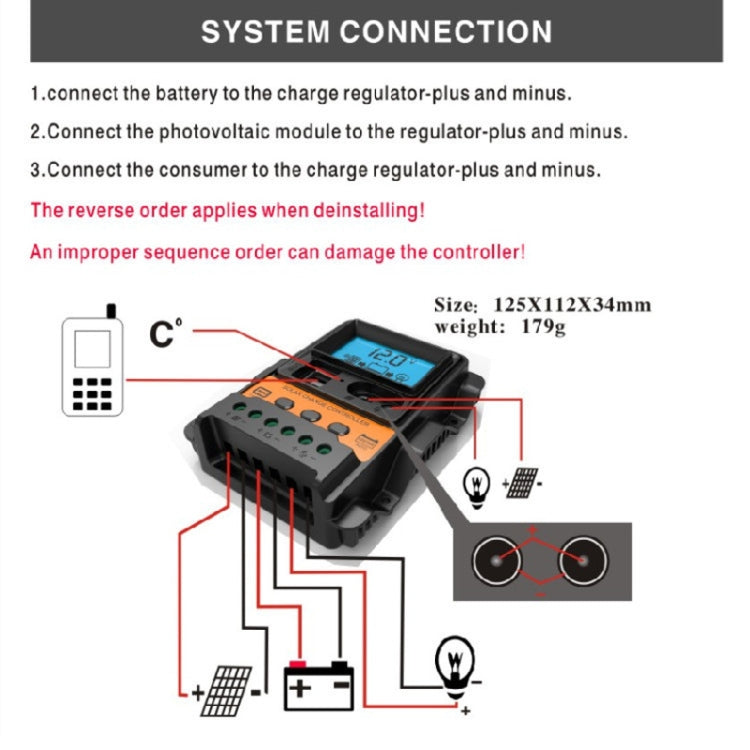

- Safe Use Advice: Suitable for various lead-acid batteries (open, sealed, gel, etc.), use only photovoltaic panels as charging source, install close to battery to avoid voltage drop, ensure adequate battery voltage for recognition, install on a flat and well-ventilated surface.
