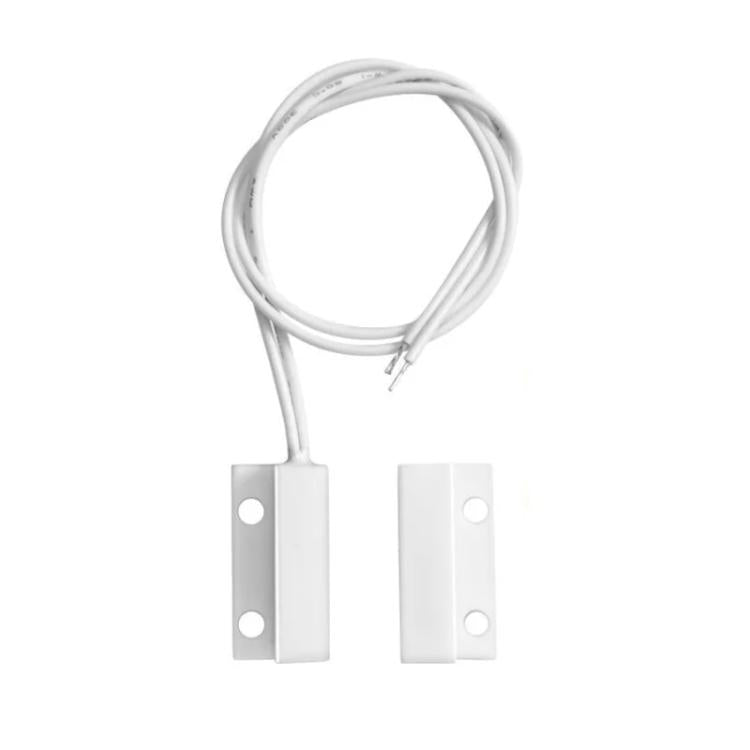

Embedded NC Model Door Magnetic Sensor Switch

• Product type: Door Window Alarm
• Compatibility: Embedded NC Model
• Material: ABS
• Key feature: Normally open switch
• Color/Variant: N/A
• Intended use: Security alarm
• Category: Security

1. Material: ABS imported reed switch; 1007#/26#360mmUL wire
2. Action distance: 18mm
3. Switch withstand voltage: 100VDC
4. Load current: 300mA

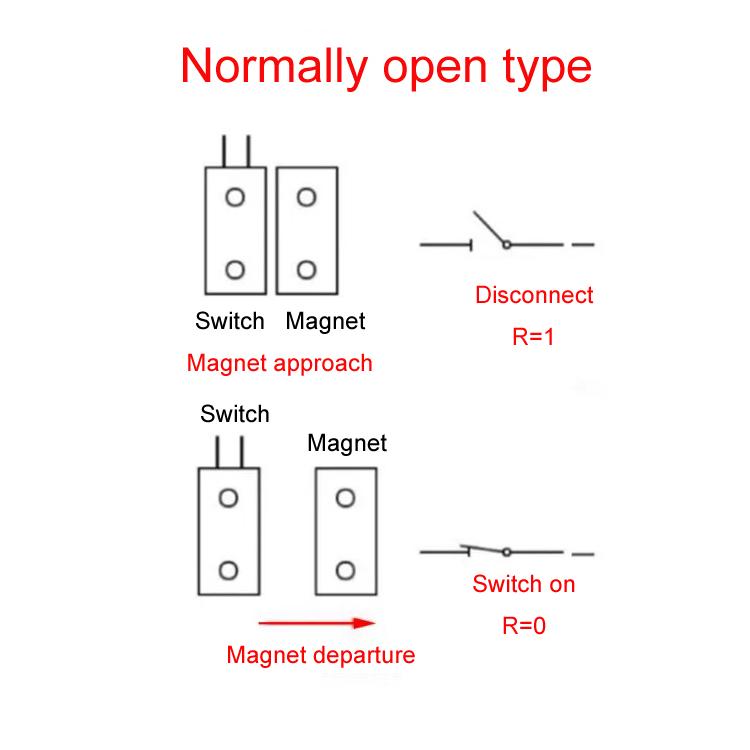

5. Switch output: normally open (the normally open door magnetic switch means that the switch signal is disconnected when the switch and the magnet are close together, and the switch signal is closed when the switch and the magnet are separated, commonly known as the passage)
6. Surface-mounted, suitable for installation on non-iron doors or windows
7. If the door magnetic is to be powered, the voltage is controlled at DC0V-24V, the power supply current cannot exceed 1A, and the load current is 120mA
8. Size: 27x14x8mm
9. Warm reminder: the door magnetic is not equipped with screws when it leaves the factory
