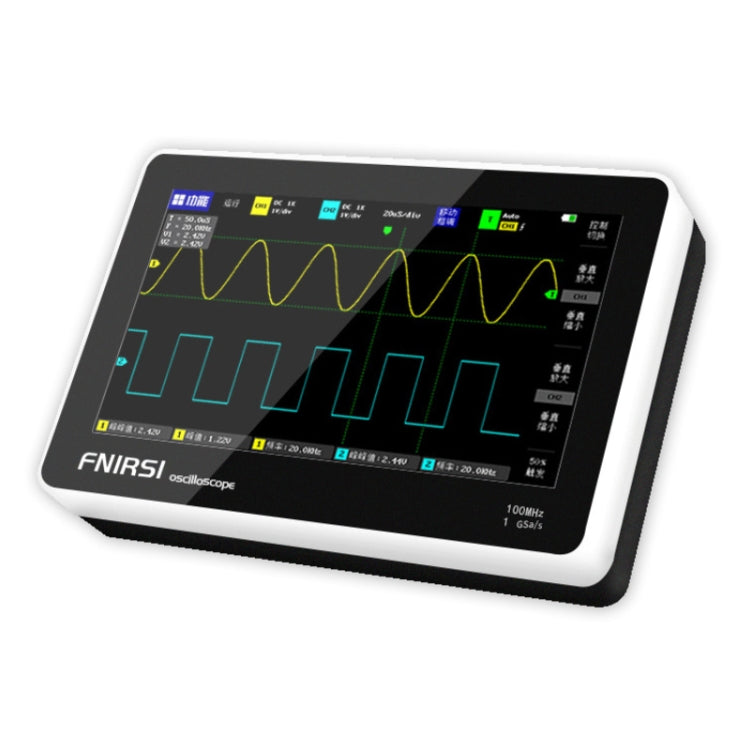

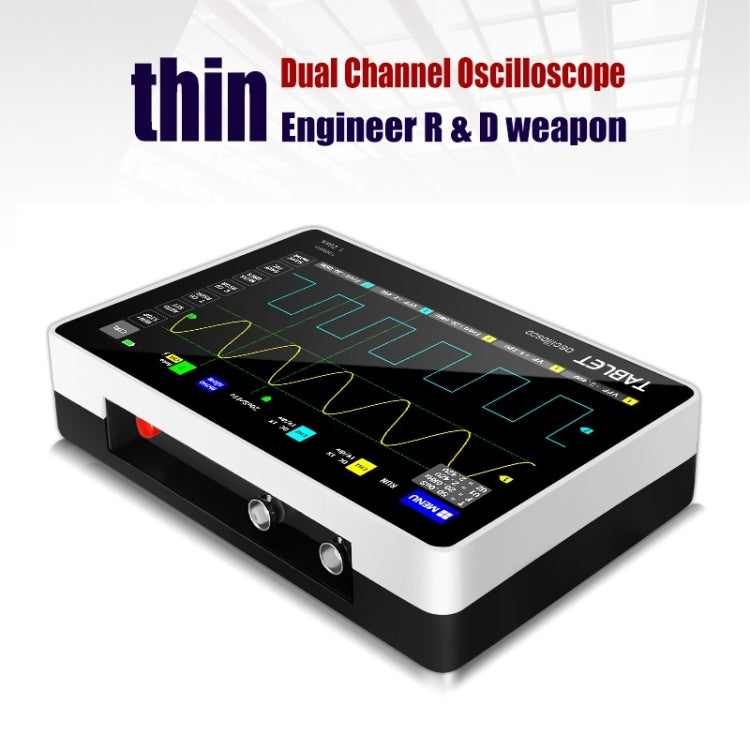

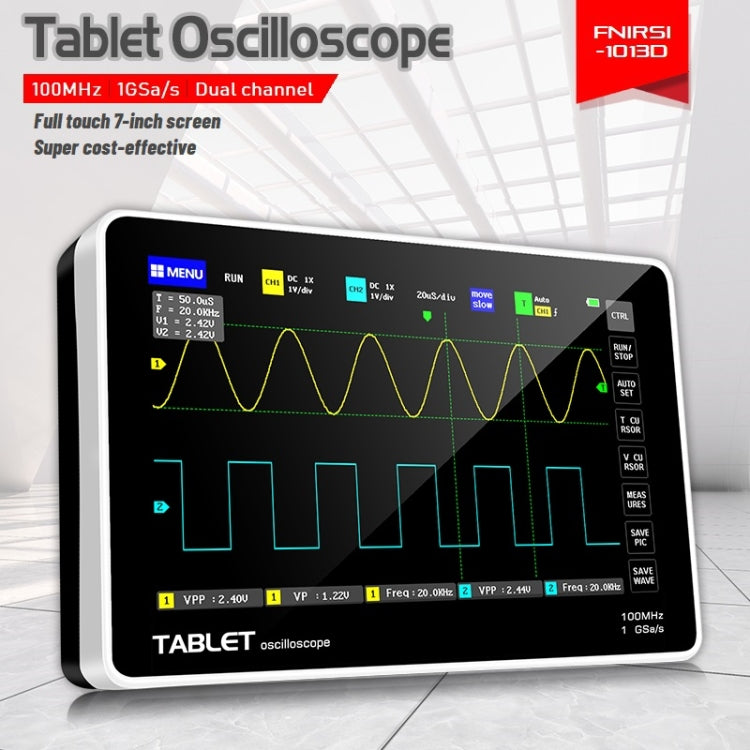

FNIRSI 1013D 1GS Sampling Dual Channel 100M Bandwidth Digital Oscilloscope, US Plug(English)

Name: FNIRSI 1013D 1GS Sampling Dual Channel 100M Bandwidth Digital Oscilloscope, US Plug(English)
Brand: FNIRSI
SKU: TBD0603564901A
Price: 3509.00 ZAR
Availability: InStock

R 3,509.00

Sale Sold out

FREE DELIVERY on all orders.

🔥 Buy 2 items, get 25% off 3rd item 🔥 Today only!

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Material: ABS
2. Analog bandwidth: 100MHzx2
3. Number of channels: 2 channels
4. Real-time sampling rate: 1GSa/s
5. Vertical sensitivity: 50mV/div~500V/div
6. Horizontal time base range: 50S/div~10nS/div
7. Test voltage: 40V (1X probe), 400V (10X probe)
8. Storage depth: 240Kbit
9. Input resistance: 1M
10. ADC precision: 8bits
11. Coupling method: AC/DC
12. Trigger mode: single, normal, automatic
13. Trigger edge: rising edge/falling edge
14. External trigger voltage: 0~40V
15. Operation method: capacitive touch screen + gesture
16. Expansion port: USB image export

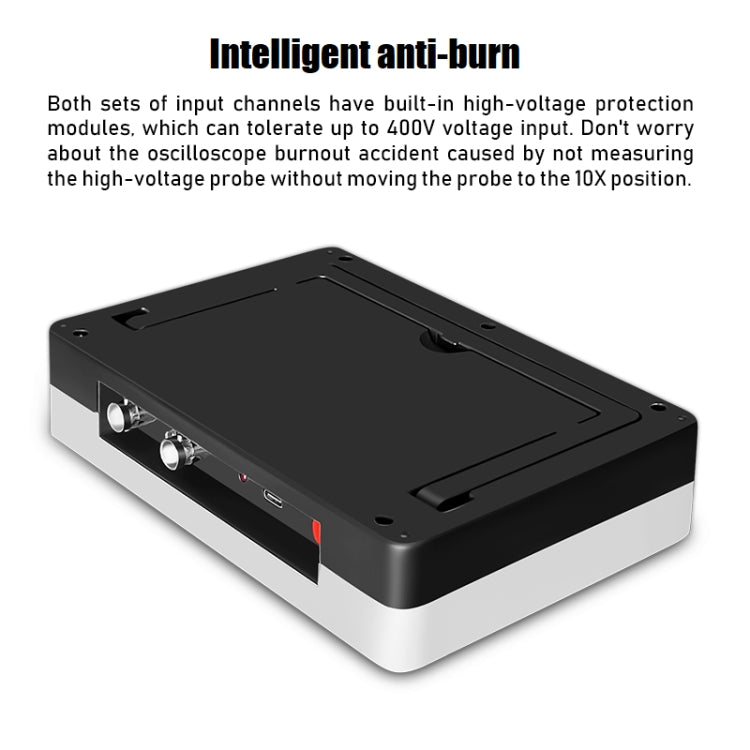

17. Intelligent anti-burnout, 1X can withstand up to 400V withstand voltage
18. 100MHz analog bandwidth @ 1GSa/s sampling rate (1X=5MHz, 10X=100MHz)

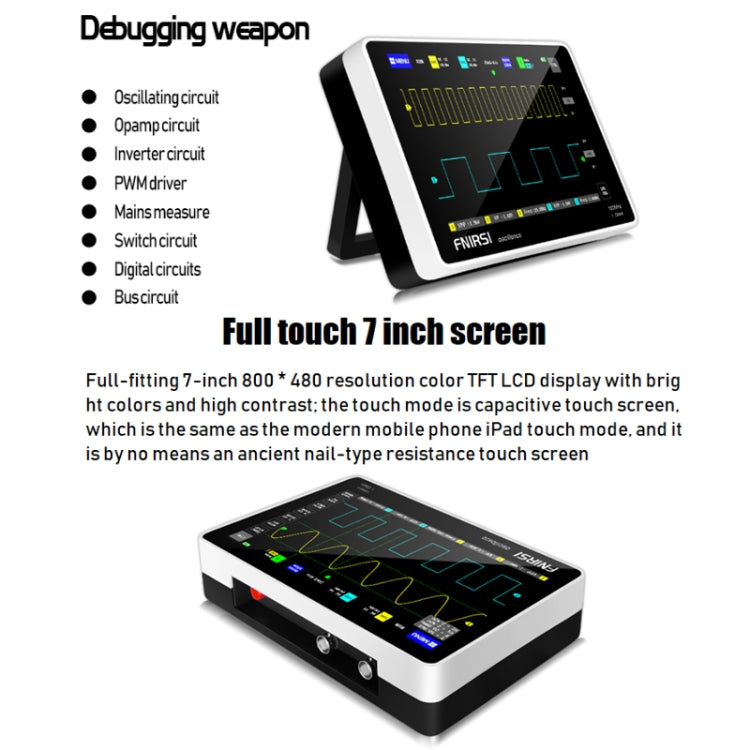

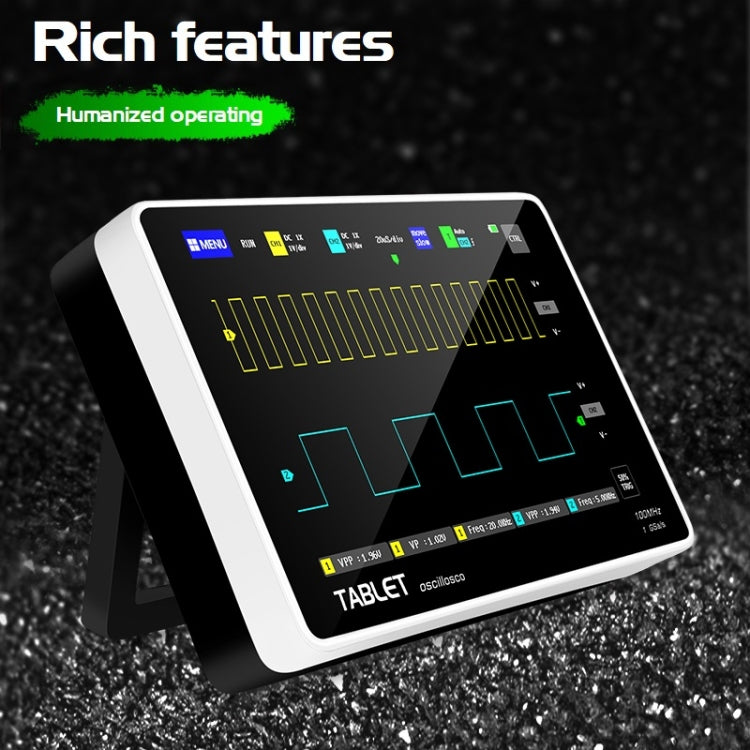

19. Fully fit the 7-inch 800x480 resolution color TFT LCD screen with bright colors and high contrast
20. Capacitive touch screen, the same way that modern mobile phones and tablets are touched, not the ancient fingernail operated resistive touch screen
21. High measuring voltage range, 1X can measure 0~40V, 10X can measure 0~400V, 100X can measure 0~4000V
22. Up to 12 parameters measurement: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Period

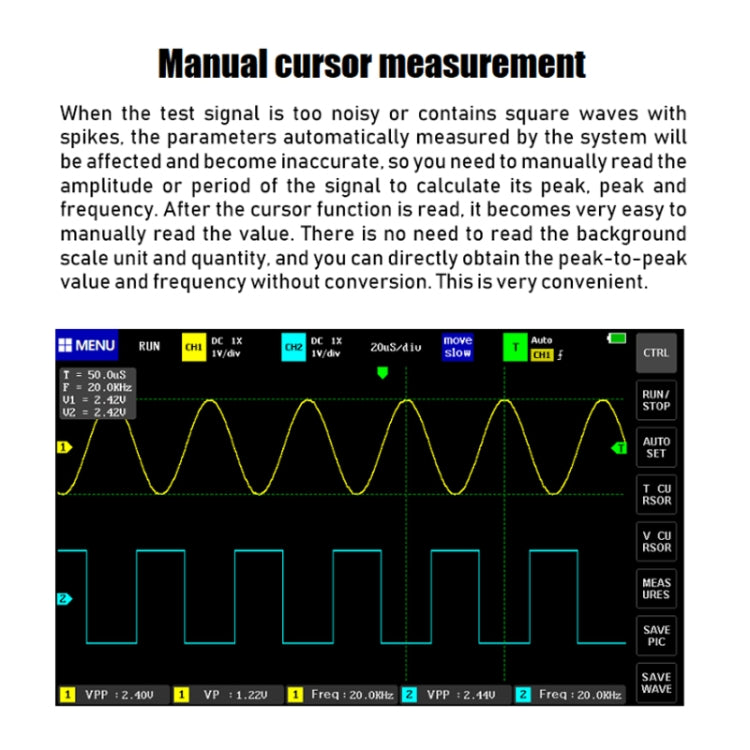

23. Cursor measurement function, convenient for manual measurement of period, frequency and voltage

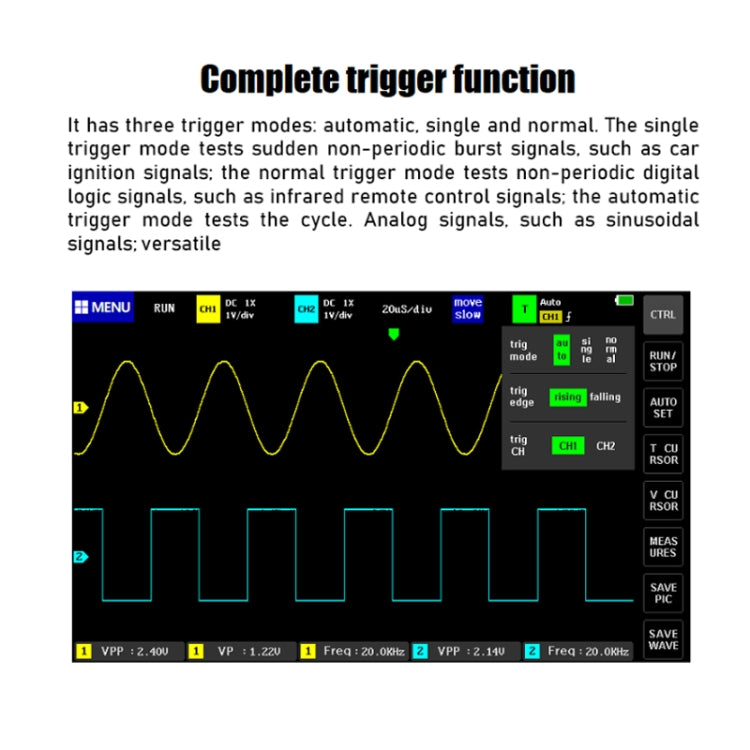

24. Complete trigger function (single, normal, automatic)
25. At any time, the waveform display (pause function) will be frozen

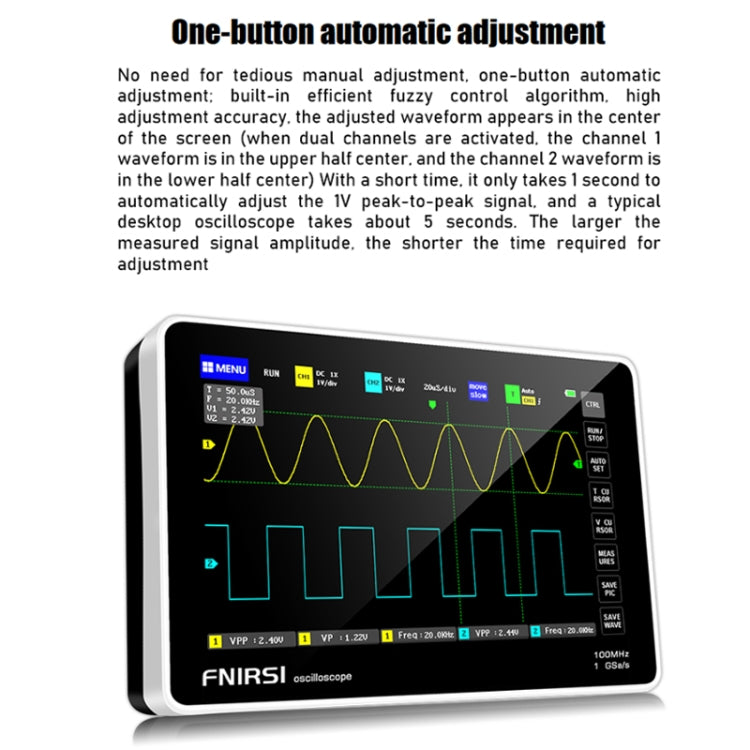

26. Equipped with efficient one-button AUTO

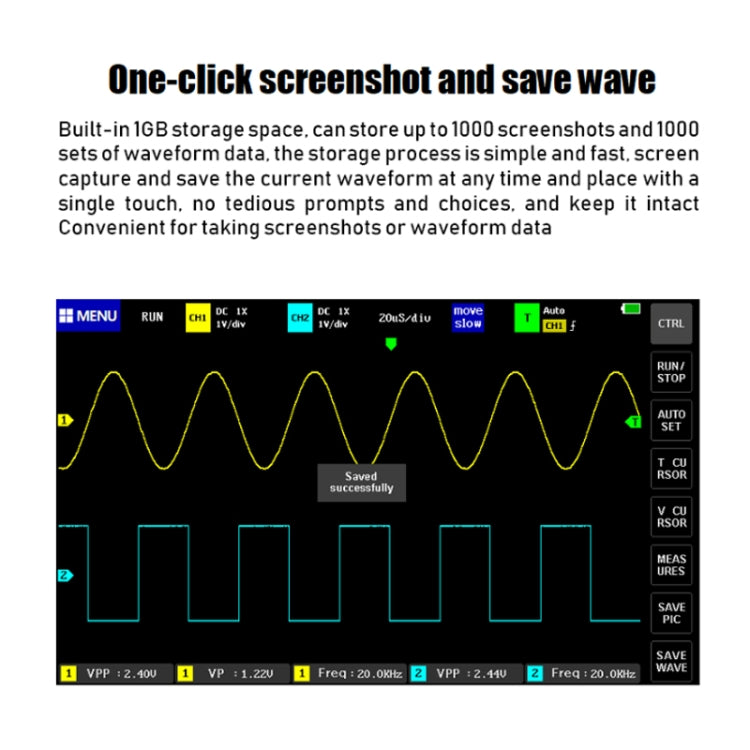

27. One-button waveform storage and screenshot
28. Built-in 1GB storage space, can store 1000 screenshots + 1000 sets of waveform data

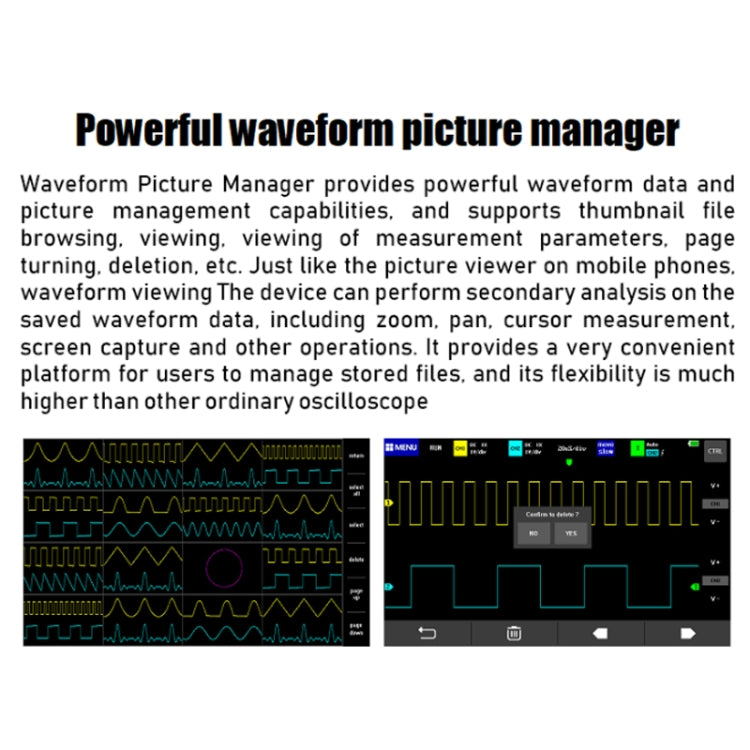

29. Powerful waveform image manager, supports thumbnail browsing, viewing, detailed viewing, page turning, deletion, and waveform zooming in, zooming out, moving, etc.

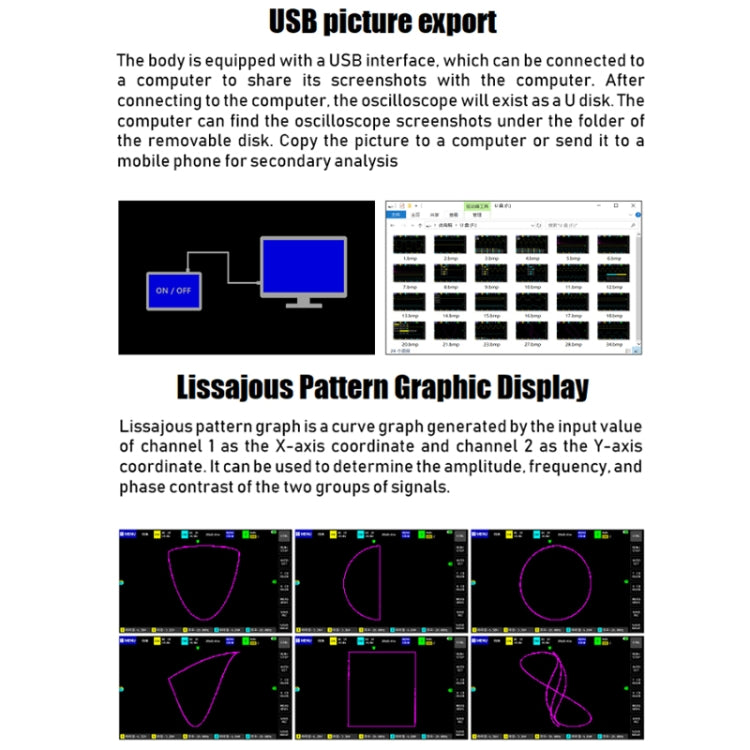

30. Equipped with a USB interface, it can be connected to a computer to share screenshots with the computer, which is convenient for secondary analysis
31. FFT display function, which can analyze the spectrum characteristics of the signal
32. Built-in 6000mAh rechargeable lithium battery, fully charged can be used continuously for 4 hours at the highest screen brightness
33. Memory compression technology, waveform refresh screen does not flicker
34. Screen brightness adjustment, background grid brightness adjustment
35. Ultra-thin, easy to carry
36. Power supply: lithium battery, 6000mAh (included)
37. Dimensions: 184x124x50mm

Packing list:
FNIRSI 1013D Oscilloscope Host x 1
Matched 100MHz probes (1X and 10X) x 2
USB cable x 1
US charging adapter x 1
