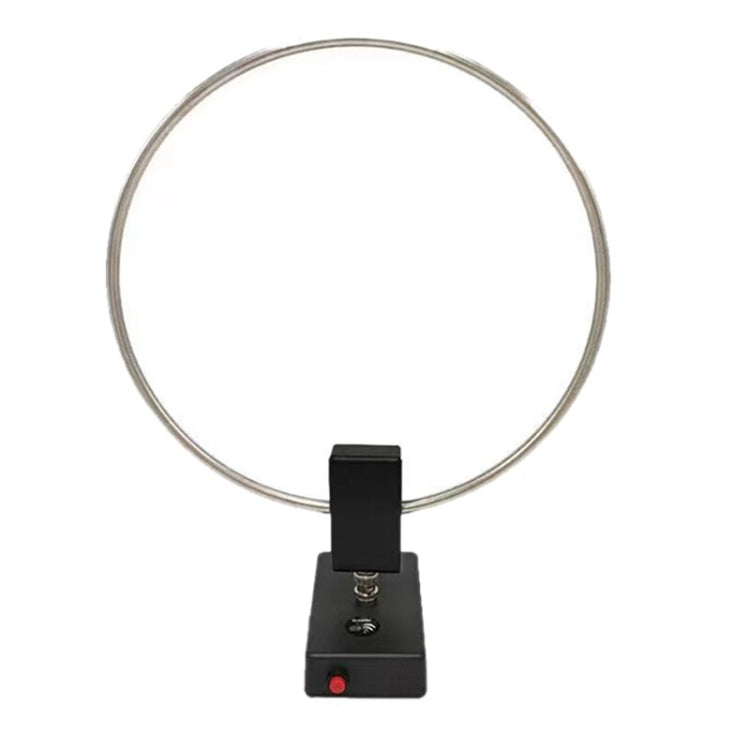

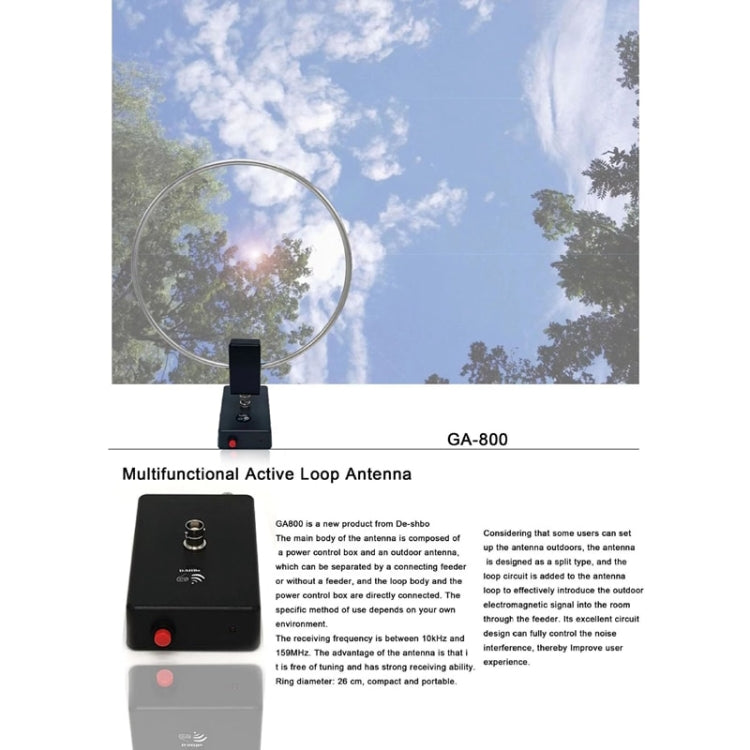

GA800 10KHz-159MHZ HF Radio Short Wave Antenna With Source Ring Shaped Antenna

GA800 10KHz-159MHZ HF Radio Short Wave Antenna With Source Ring Shaped Antenna

Regular price R 2,579.00
Regular price Sale price R 2,579.00
Sale Sold out
FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.


Features:

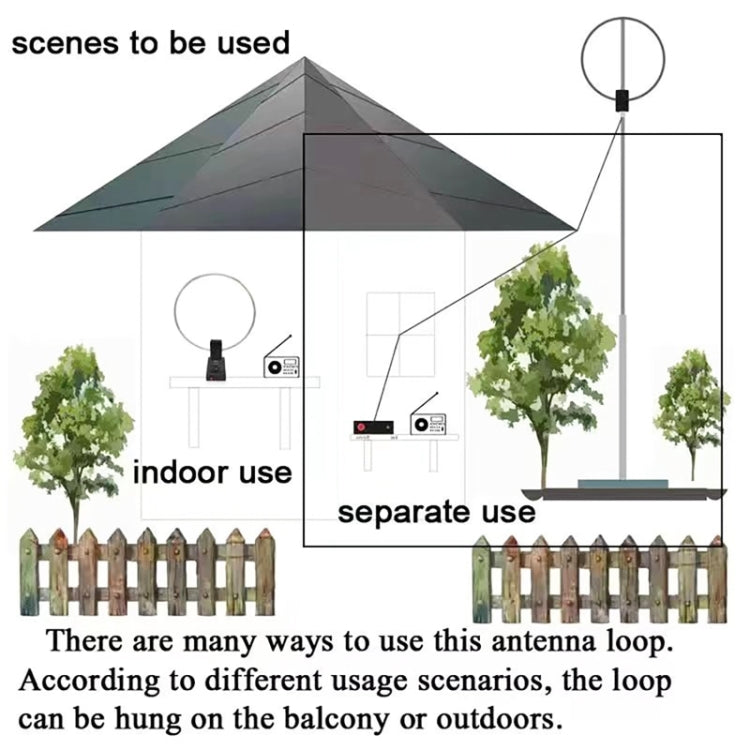

1. Independent switch, no tuning, can be used both indoors and outdoors (pay attention to waterproof when using outdoors
2. The antenna is used outdoors, the receiving effect is improved, and the noise reduction ability is stronger
3. Small size, easy installation, obvious effect, strong playability
4. Low noise, high frequency (FM, aviation, even U/V segment, etc.) reception is recommended to turn off the power

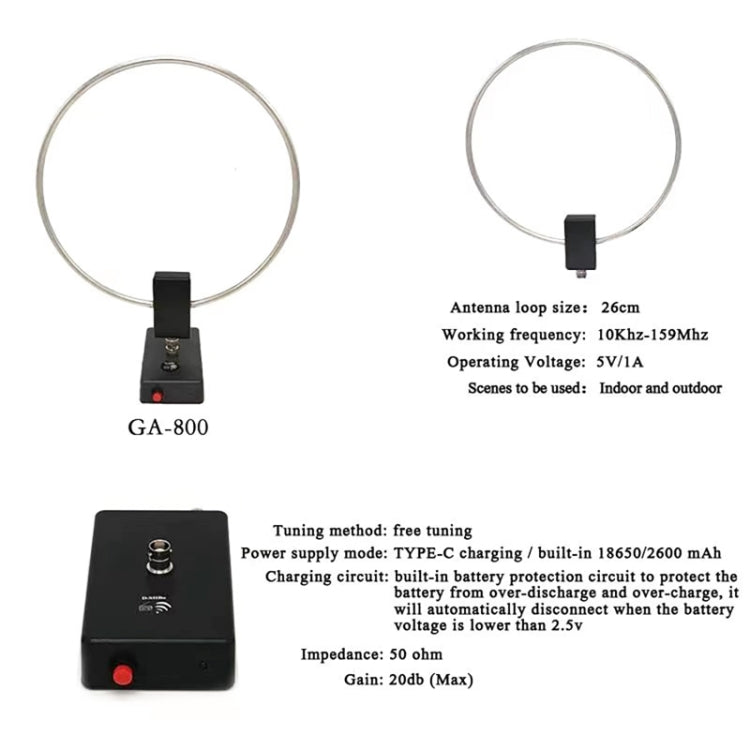

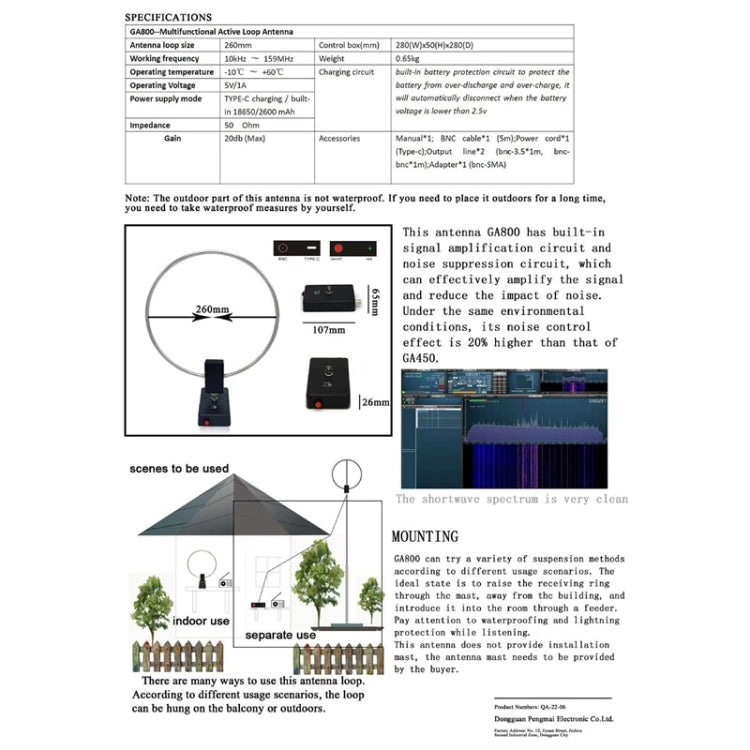

Specification:
1. Charging circuit: Built-in battery protection circuit to protect the battery from over-discharging and over-charging. Automatic disconnection when the battery voltage is lower than 2.5v
2. Material: plastic shell + stainless steel ring
3. Working voltage: 5V/1A
4. Working frequency: 10KHz-159MHz
5. Working temperature: -10 to 60 degrees Celsius
6. Battery capacity: 2600 mAh
7. Power supply mode: USB charging / built-in 18650 lithium battery
8. Impedance: 50 ohm
9. Gain: 20 db

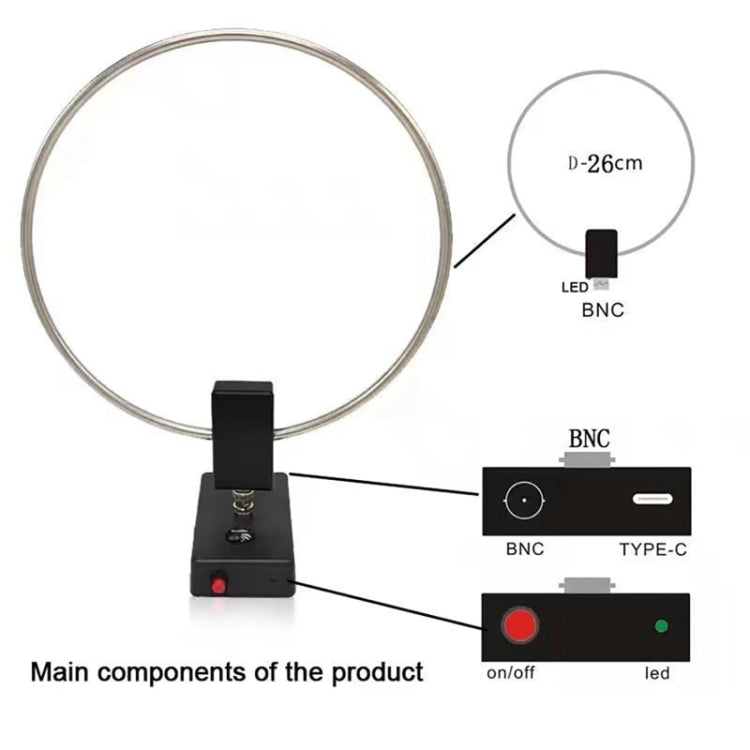

10. Antenna loop inner diameter: 260mm
11. Control box: 107 x 65 x 26mm

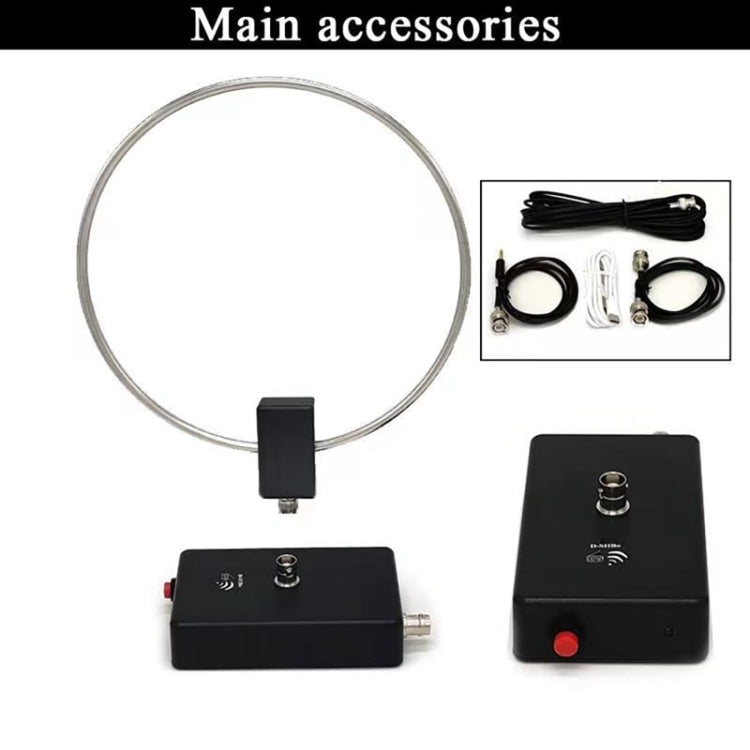

Package Included:
- 1 x antenna with control box
- 1 x manual
- 1 x BNC cable (5m)
- 1 x Power cable (Type-c/USB-c data cable)
- 1 adapter (BNC-SMA)
- 2 x output cables (BNC-3.5 x1m; BNC-BNC x 1m)
