ISDT Aircraft Model Lithium Battery 1-8S Electric Display Measuring Appliance

Name: ISDT Aircraft Model Lithium Battery 1-8S Electric Display Measuring Appliance
Brand: ISDT
SKU: TBD06037717
Price: 989.00 ZAR
Availability: InStock

R 989.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Working voltage range: 5.0V-36V
2. Balance port 1 string input voltage range: 0.8V-15V
3. Balance port 2-8 series input voltage range: 0.8V-4.8V
4. Support battery string number: 1-8S
5. Voltage measurement accuracy: 0.005V @4.2V
6. Cell balance accuracy: 0.005V
7. Support USB charging: QC 2.0/3.0 BC1.2, 12/2A (MAX)
8. Support smart battery: set charging and anti-power parameters, query battery information and usage
9. Supported battery types:
- LiHv (1-8S)/LiPo (1-8S)/LiFe (1-8S)
- Lilon (1-8S)/NiMH/Cd (1-10S)
10. Display type: 2.4 inches 320x240 260,000 colors IPS LCD
11. Visible 260,000 color display under strong sunlight
12. The exquisite and powerful BG-8S intelligent battery tester fully supports BattGO technology

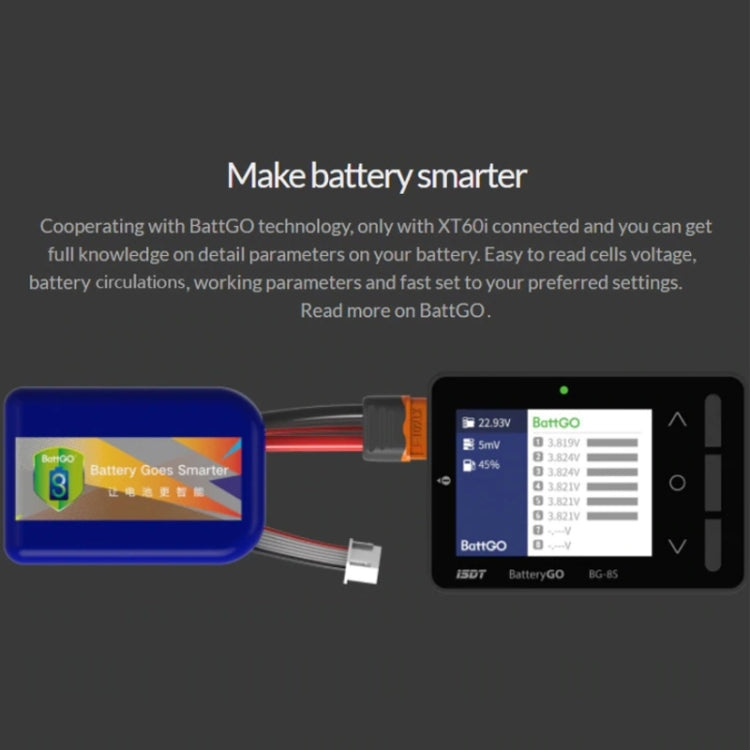

13. With BattGO technology, you can fully understand the detailed parameters of the battery just by connecting to XT60i

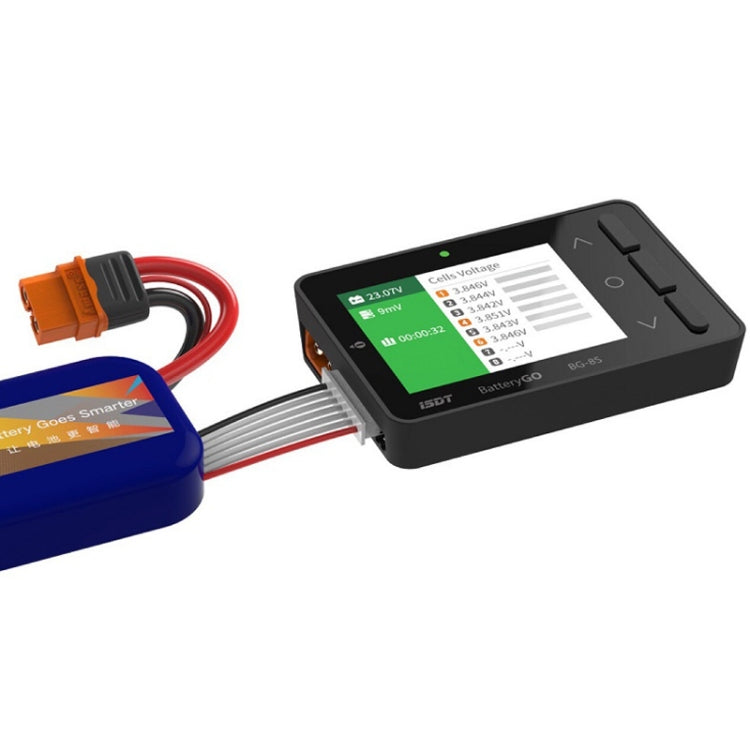

14. Easy to read battery voltage, battery cycle, working parameters and set up quickly
15. Automatically balance the battery voltage, advanced automatic balance algorithm, to ensure the balance of each cell, automatically enter the low power consumption mode after completion

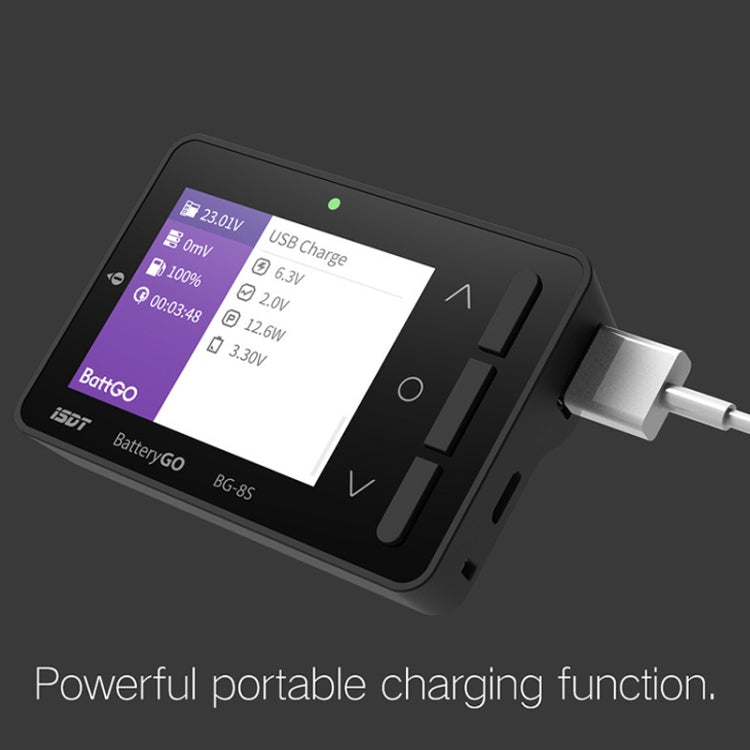

16. Powerful portable charging function, connect to your battery, BG-8S can be a power bank for your mobile devices
17. Support Qualcomm QC 2.0/3.0, compatible with BC1.2 and for Apple devices

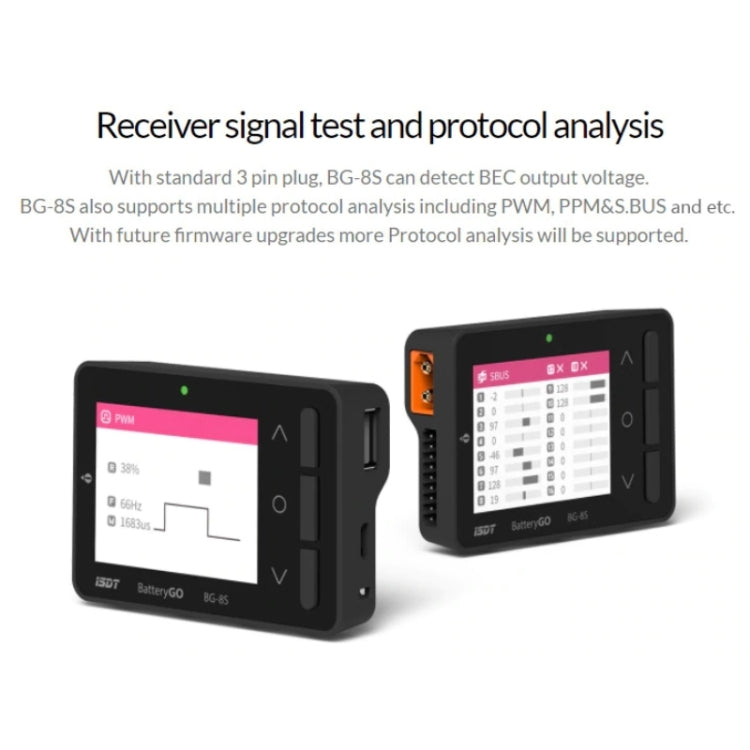

18. Receiver signal test and protocol analysis, BG-8S uses a standard 3-pin plug to detect BEC output voltage
19. BG-8S also supports multiple protocol analysis, including PWM, PPM&S.BUS, etc. Future firmware upgrades will support more protocol analysis

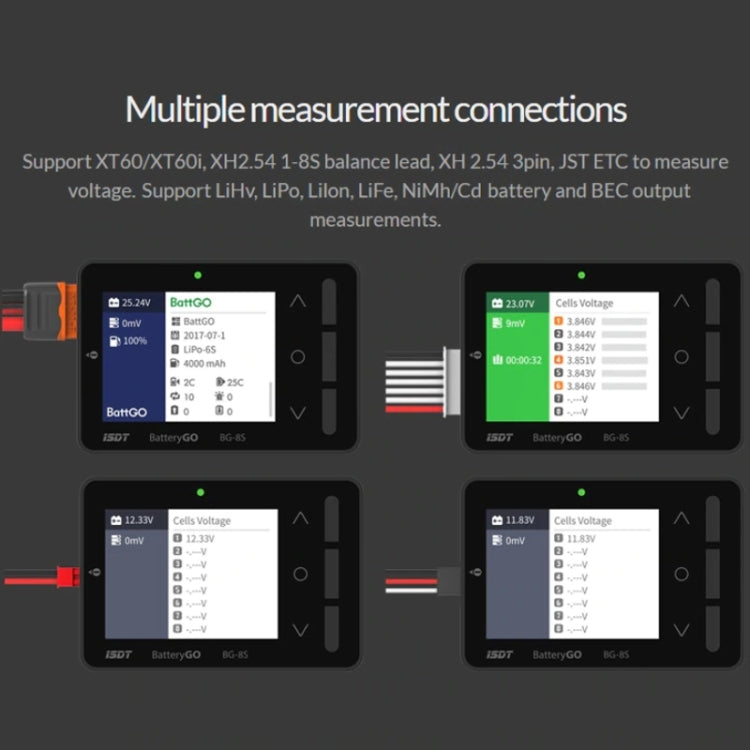

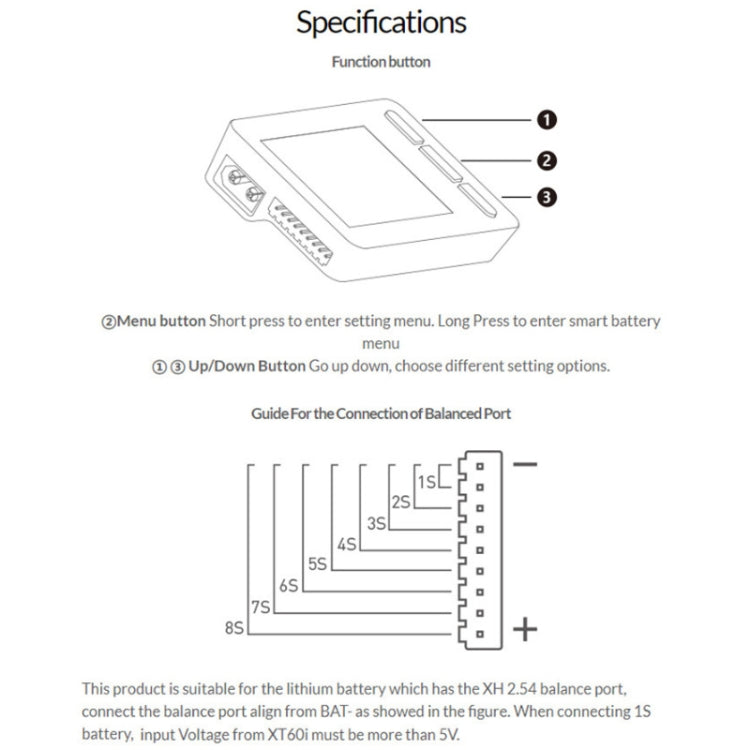

20. Support XT60/XT60i, XH2.54 1-8s balanced leads, XH2.54 3-pin, JST ETC measuring voltage
21. Support LiHv, LiPo, Lilon, LiFe, NiMh/Cd battery and BEC output measurement

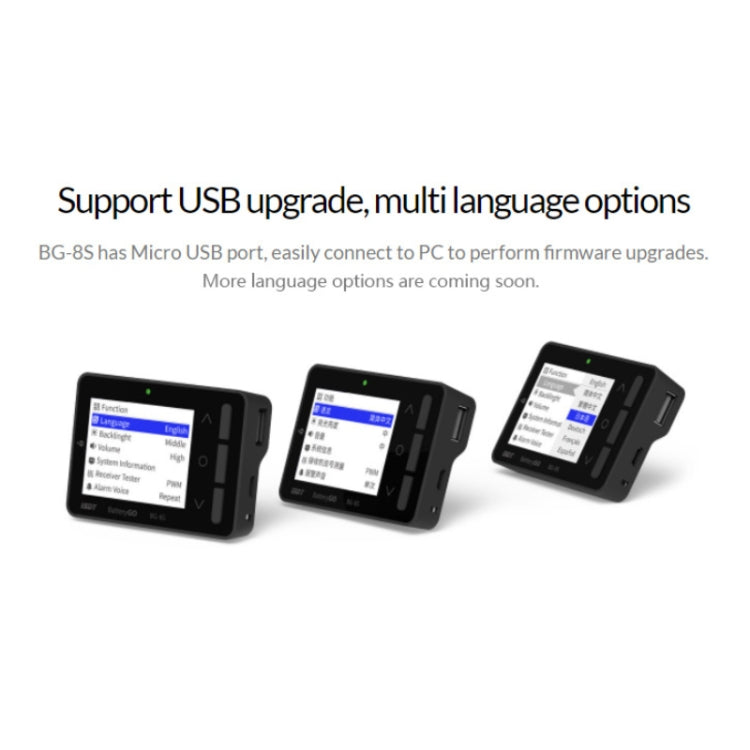

22. Support USB upgrade, multi-language selection
23. BG-8S has a Micro USB port, which can be easily connected to a PC for firmware upgrades

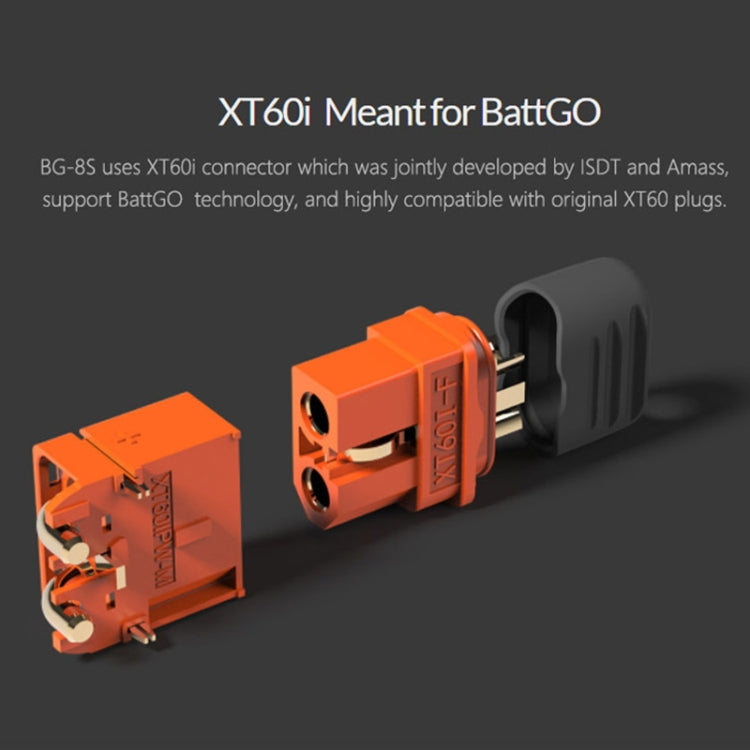

24. The XT60i is designed for BattGo
25. BG-8S adopts the XT60i connector jointly developed by ISDT and Amass, supports BattGO technology, and is highly compatible with the original XT60 plug
26. Dimensions: 80x55x19mm
27. Weight: 59 grams
