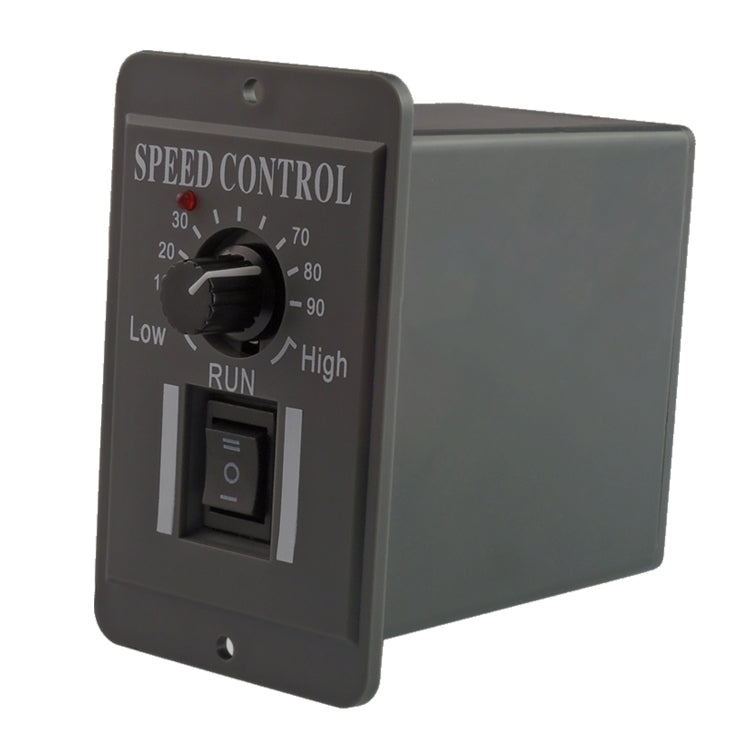

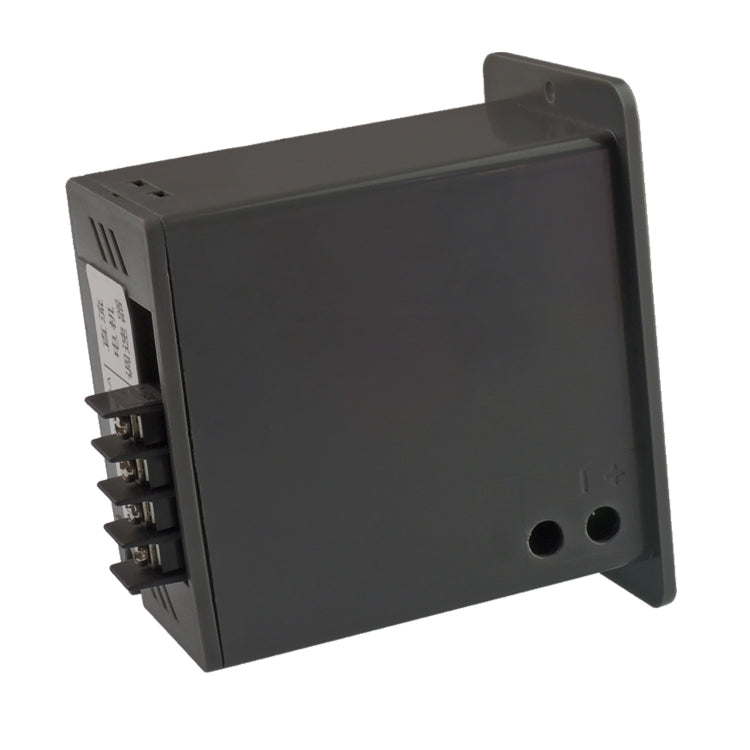

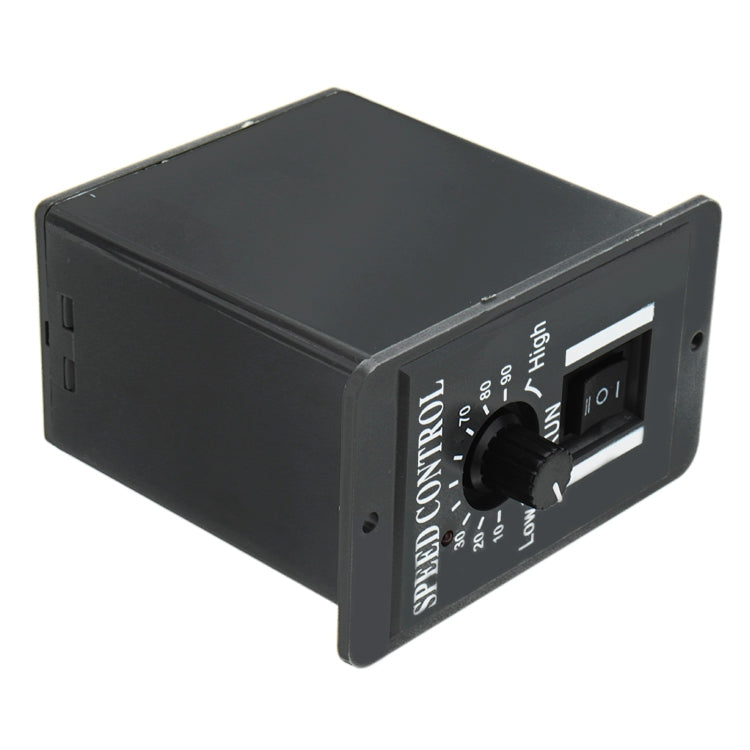

LDTR-WG0265 DC 6A Motor Speed Governor Slow Down Motor Controller Positive And Negative Rotating Control Switch 12V/24V/36V/48V (Black)
LDTR-WG0265 DC 6A Motor Speed Governor Slow Down Motor Controller Positive And Negative Rotating Control Switch 12V/24V/36V/48V (Black)
🔥 Buy 2 items, get 25% off 3rd item 🔥 Today only!
Couldn't load pickup availability
FREE Shipping
FREE Shipping
FREE SHIPPING on all orders. Fully Insured.
Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time 7 - 15 working days.
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
1. Input voltage range: DC 10V-60V
2. Rated current: continuous operating current within 6A
3. Function: control DC brush motor speed, forward, stop, reverse

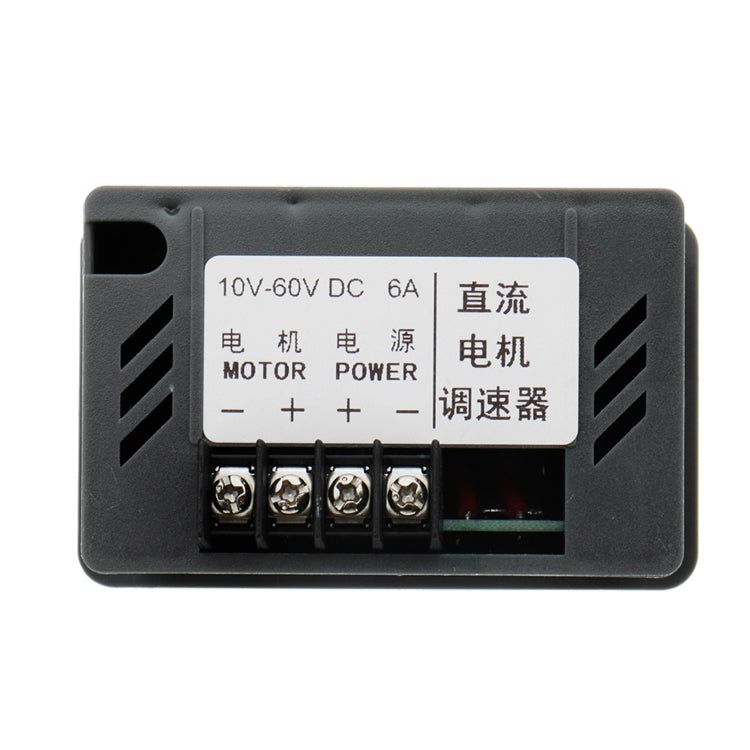

4. Installation method: panel type, and wiring according to wiring diagram
5. Brand: Landa tianrui
6. Model: LDTR-WG0265
7. Material: FR-4

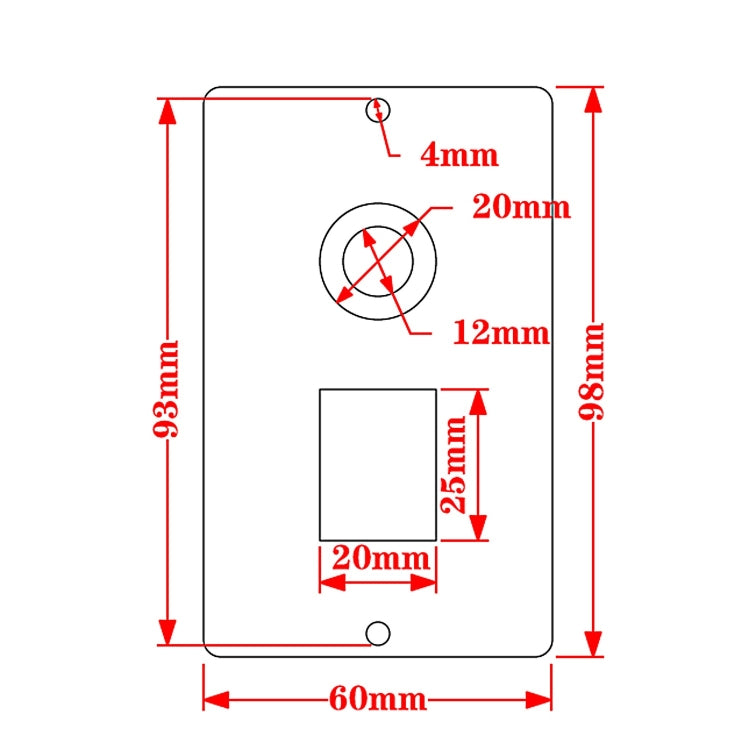

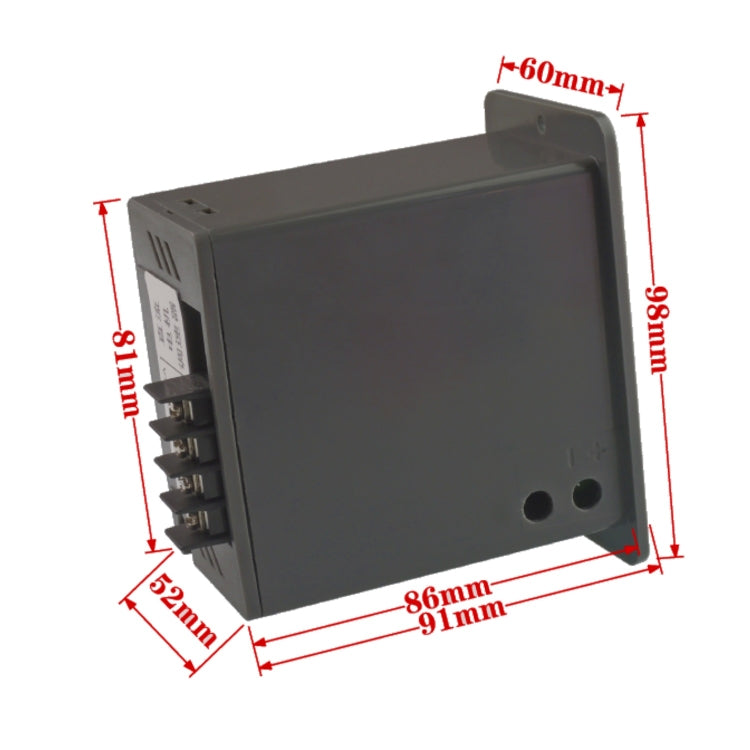

8. Dimensions: 9.8 cm * 9.1cm* 6cm
9. Weight: 124 g
10. Package Included: 1 x Motor Speed Controller
Note
1. The input of the DC motor governor is DC, and it cannot be directly connected to AC (for example, household 220V AC), otherwise it will burn out.
2. The positive and negative poles of the DC power cannot be reversed, otherwise the governor will be bad.
3. The motor is not divided into positive and negative. When the running direction is inconsistent with the expectation, the direction can be changed by adjusting the line sequence.

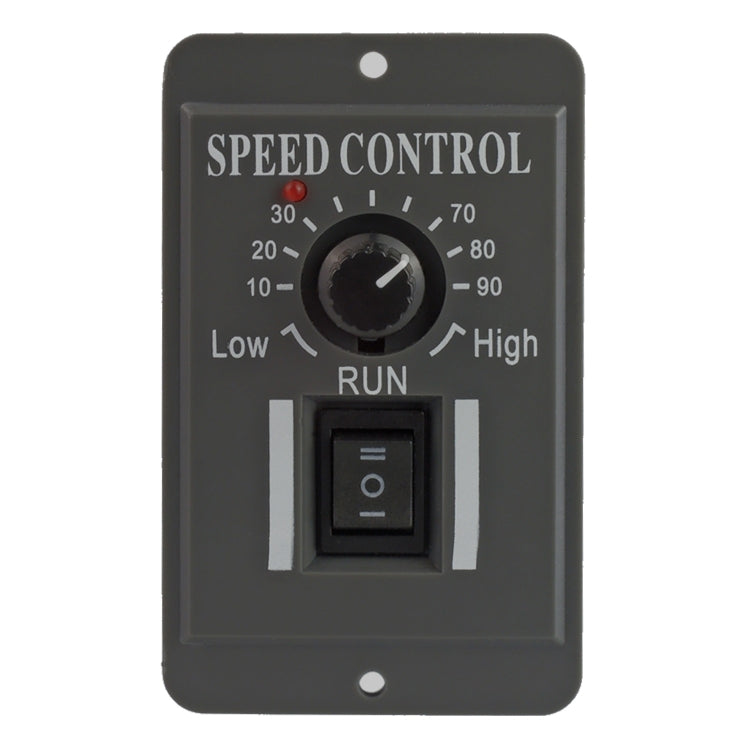

4. The potentiometer knob can change the governor output duty cycle, thus changing the motor speed.
