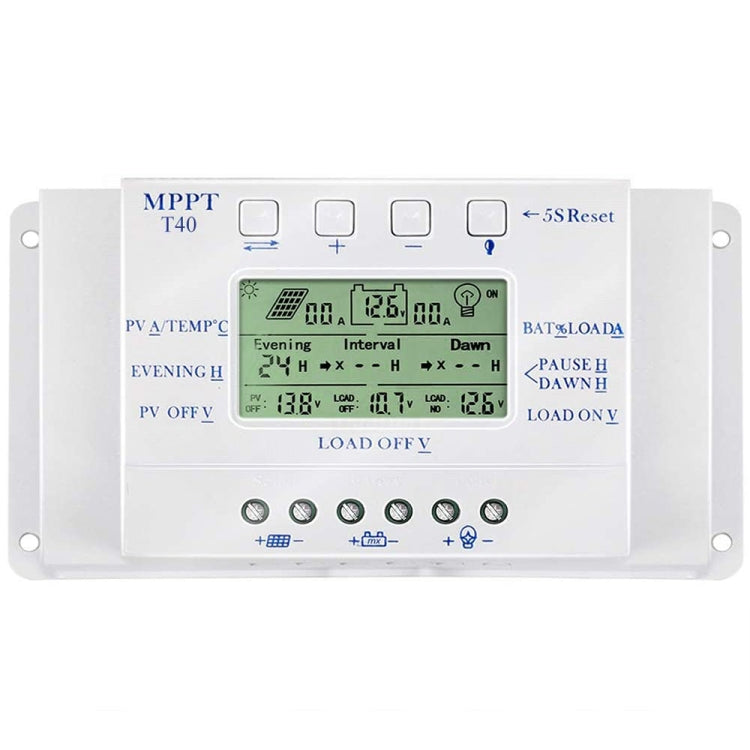

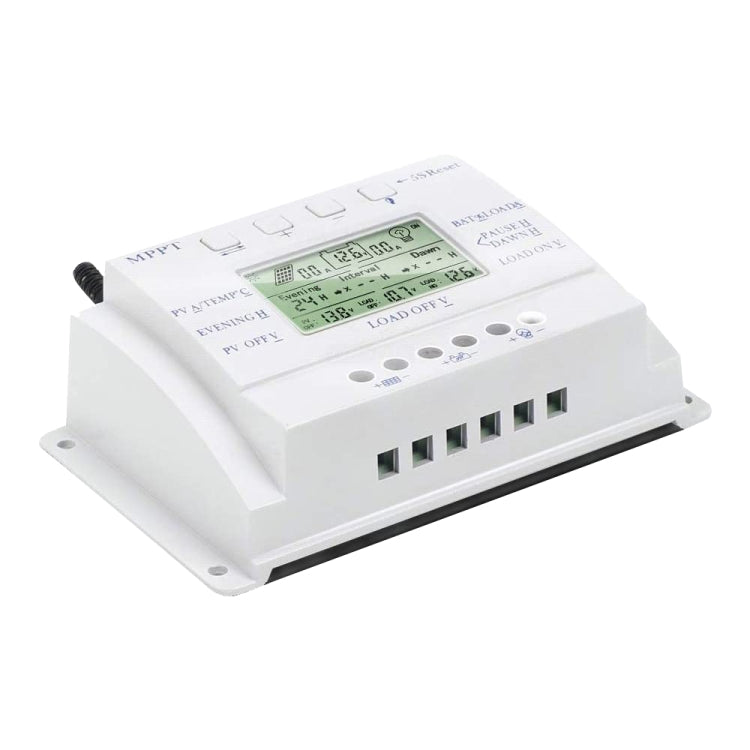

MPPT T40-40A Solar PWM Controller

Name: MPPT T40-40A Solar PWM Controller
Brand: PMC Jewellery
SKU: TBD05577840
Price: 1159.00 ZAR
Availability: InStock

R 1,159.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Features:
1. The characteristic of this controller is that the working voltage of the solar panel can be tracked to the maximum current emitted by the solar panel by intelligently adjusting the solar panel, so that the solar panel always works at the maximum power point of the V-A characteristic curve. Compared with ordinary solar controllers, the utilization of solar panel power generation has increased by 10-30%

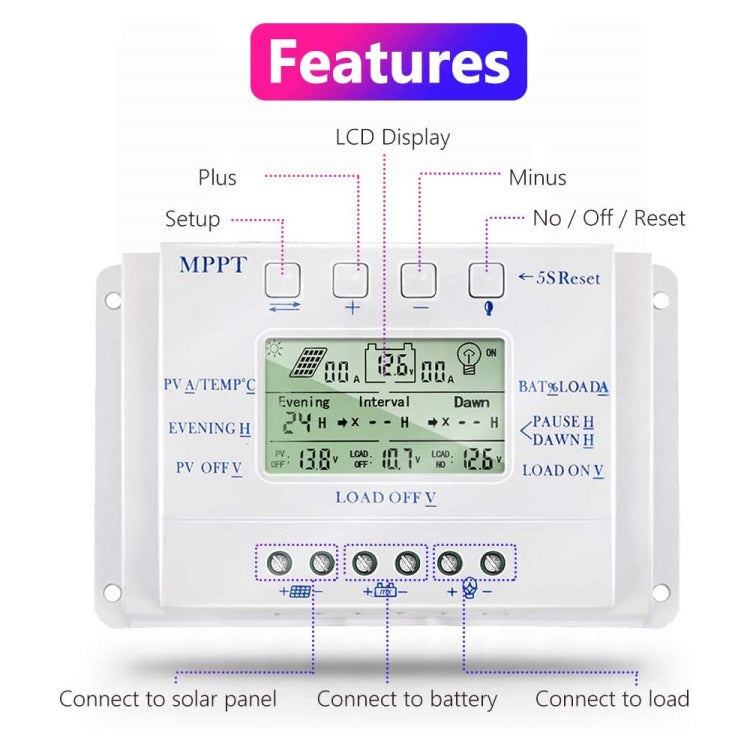

2. Vivid LCD graphic symbols, concise button mode
3. Intelligent PWM charging method with automatic temperature compensation
4. Adjustable slave discharge control parameters, settable load working mode
5. Battery reverse discharge, undervoltage, reverse connection protection and other protection functions

parameter:
1. Net weight: 0.43 kg
2. Size: 16.5x9.5x6 cm
3. Rated charging current: 40A
4. Floating charge voltage: 13.8V / 27.6V
5. Undervoltage protection: 10.6V / 21.2V
6. Over-discharge recovery voltage: 12.6V/25.2V
7. Working temperature: -10-60 degrees Celsius
8. Storage temperature: -30 -70 degrees Celsius

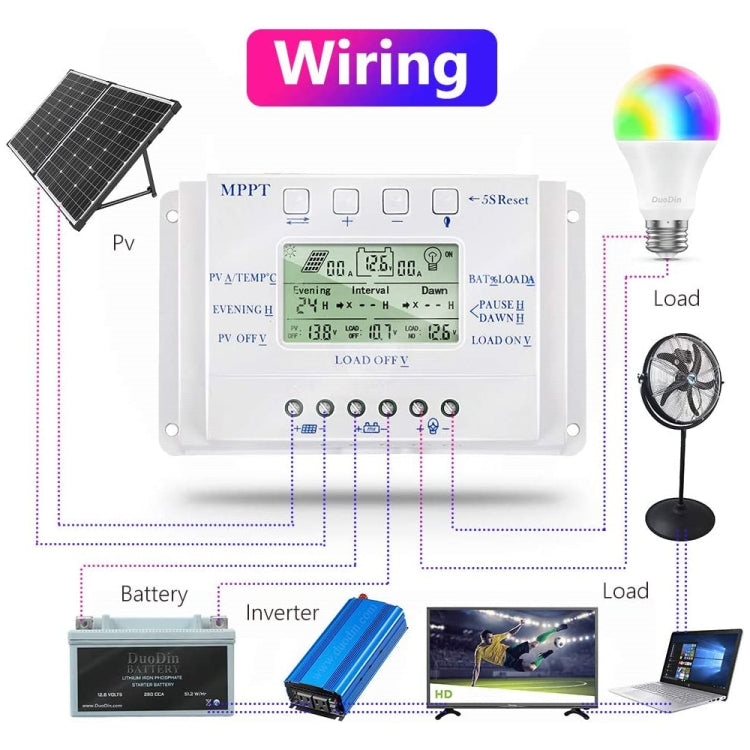

9. Wiring specification: less than or equal to No. 6 AWG (12 square millimeters)
