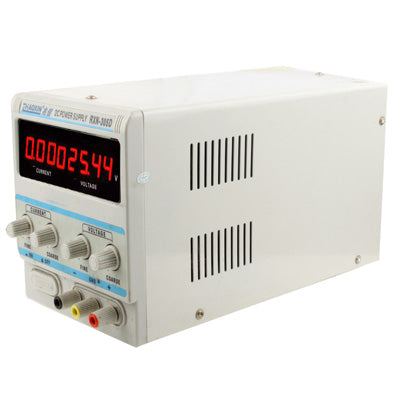

RXN-305D Linear Adjustable DC Power Supply, 30V / 5A

RXN-305D Linear Adjustable DC Power Supply, 30V / 5A

Regular price R 4,390.00
Regular price Sale price R 4,390.00
Sale Sold out
FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1) Single channel output

2) Front / behind output terminal

3) Internal radiator and electronic temperature control cooling

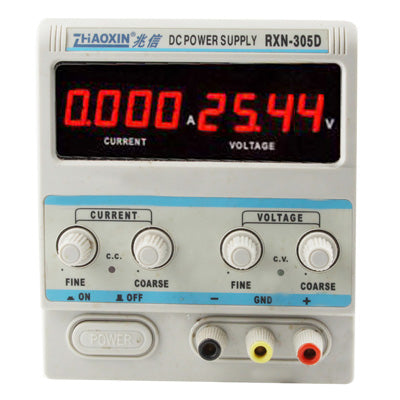

4) Digital or pointer meter display output voltage and output current

5) Current-limiting protection and users can set the current-liming protection point arbitrarily

6) Reverse polarity protection

7) Voltage Output: 0-30V

8) Current Output: 0-5A

9) Input voltage AC 220V± 10% 50Hz/60Hz (also can be AC 110V± 10% 50Hz/60Hz if required )

10) Working Condition Temperature: -10-40Degree Celsius Relative humidity: <90%

11) Storage Condition Temperature: -10-40Degree Celsius Relative humidity: <80%

12) Constant Voltage Operation Voltage stability: ≤ 0.01%+2mV

13) Load stability: ≤ 0.01%+2mV

14) Recovery time: ≤ 100uS

15) Ripple and noise: ≤ 1mVrms ( effective value )

16) Temperature coefficient: ≤ 200PPM/Degree Celsius

17) Constant Current Operation Current stability: ≤ 0.1%+3mA

18) Load stability: ≤ 0.2%+3mA

19) Ripple and noise: ≤ 2mArms ( effective value )

20) Voltage Display Precision 4 digits LED display: ± 1%

21) Current Display Precision 4 digits LED display: ± 1%

22) Size: 275 x 155 x 126mm
