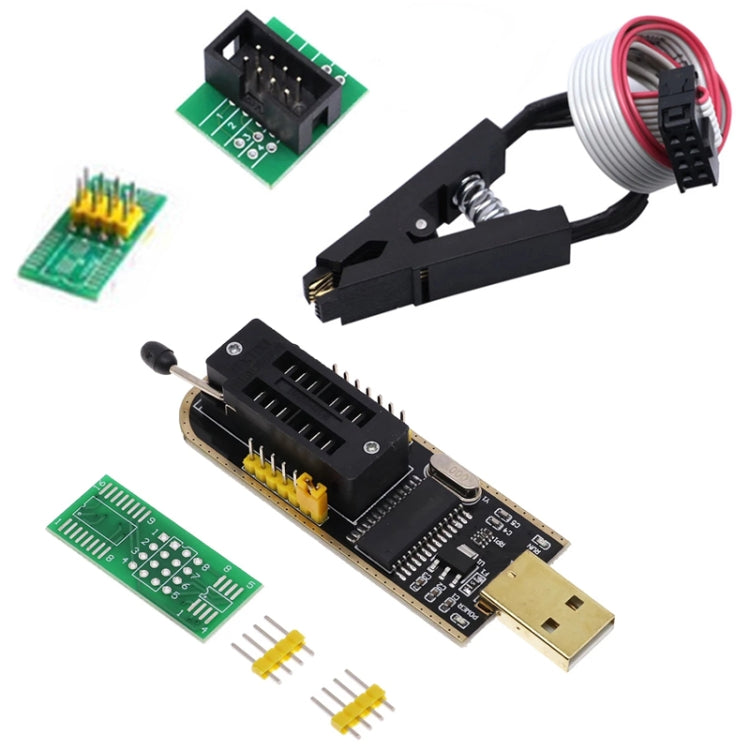

Test Clip With 2 Board+CH341A Programmer Module USB Motherboard Routing Liquid Crystals Disassembly Free SOP8 Test Tool

Name: Test Clip With 2 Board+CH341A Programmer Module USB Motherboard Routing Liquid Crystals Disassembly Free SOP8 Test Tool
Brand: PMC Jewellery
SKU: TBD0604399403
Price: 239.00 ZAR
Availability: InStock
Rating: 4.0 (1 reviews)

R 239.00

Sale Sold out

FREE DELIVERY on all orders.

🔥 Buy 2 items, get 25% off 3rd item 🔥 Today only!

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Product features:
1. Adopts FT232BL chip with external EEPRON (93C46)
2. Support Windows 10
3. Support 3 power supply modes: 5V external power supply, 3.3V external power supply, external power supply (requires 3.3V-5V)
4. With 3 LEDs: TXD LED, RXD LED, POWER LED
5. GND, RXD, TXD, 3V3, 5V: using a curved pin pin out
6. The rest of the function PIN: reserved pads CTS, RTS

Instructions for use: (to access the MCU as an example)
1. GND: connected to GND
2. RXD: connect to MCU.TX (Signal flow: MCU.TX - FT232 - PC.RX)
3. TXD: connect to MCU.RX (signal flow: PC.TX - FT232 - MCU.RX)
4. 3V3/5V: output 3.3V or 5V (the module is powered by USB, the jumper cap must be jumped to 3.3V or 5V)
5. RTS: connect to MCU.CTS (signal flow: PC.RTS - FT232 - MCU.CTS)
6. CTS: connect to MCU.RTS (Signal flow: MCU.RTS - FT232 - PC.CTS)
