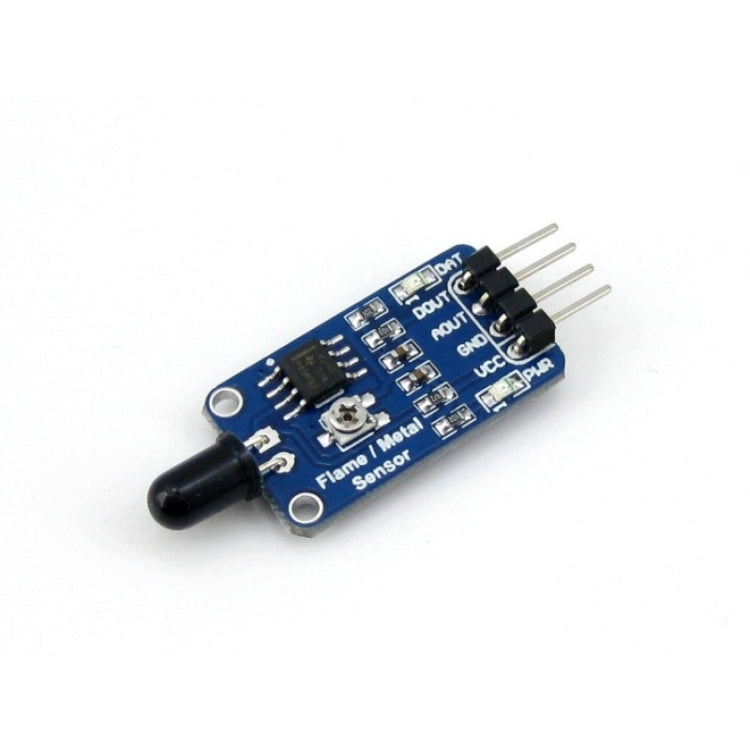

Wareshare Flame Sensor
Wareshare Flame Sensor
Sale
Sold out
Pre-order
Regular price
R 209.00
Regular price
Sale price
R 209.00
Unit price
per
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Modules Expansions Accessories
• Brand: Wareshare
• Compatibility: flame detection systems
• Material: electronic components
• Key feature: adjustable sensitivity
• Color/Variant: N/A
• Intended use: fire detection applications
• Category: Consumer Electronics
Overview
1. Sensitive to flame spectrum
2. Features wide range voltage comparator LM393
3. Adjustable sensitivity
4. Signal output indicator
Specifications
1. Spectrum range: 760nm ~ 1100nm
2. Detection angle: 0 - 60 degree
3. Power: 3.3V ~ 5.3V
4. Operating temperature: -25 ~ 85 degree C
5. Dimension: 27.3mm * 15.4mm
6. Mounting holes size: 2.0mm
Applications
1. Fire detection
2. Fire fighting robot
3. Fire alarm
• Brand: Wareshare
• Compatibility: flame detection systems
• Material: electronic components
• Key feature: adjustable sensitivity
• Color/Variant: N/A
• Intended use: fire detection applications
• Category: Consumer Electronics
Overview
1. Sensitive to flame spectrum
2. Features wide range voltage comparator LM393
3. Adjustable sensitivity
4. Signal output indicator
Specifications
1. Spectrum range: 760nm ~ 1100nm
2. Detection angle: 0 - 60 degree
3. Power: 3.3V ~ 5.3V
4. Operating temperature: -25 ~ 85 degree C
5. Dimension: 27.3mm * 15.4mm
6. Mounting holes size: 2.0mm
Applications
1. Fire detection
2. Fire fighting robot
3. Fire alarm
