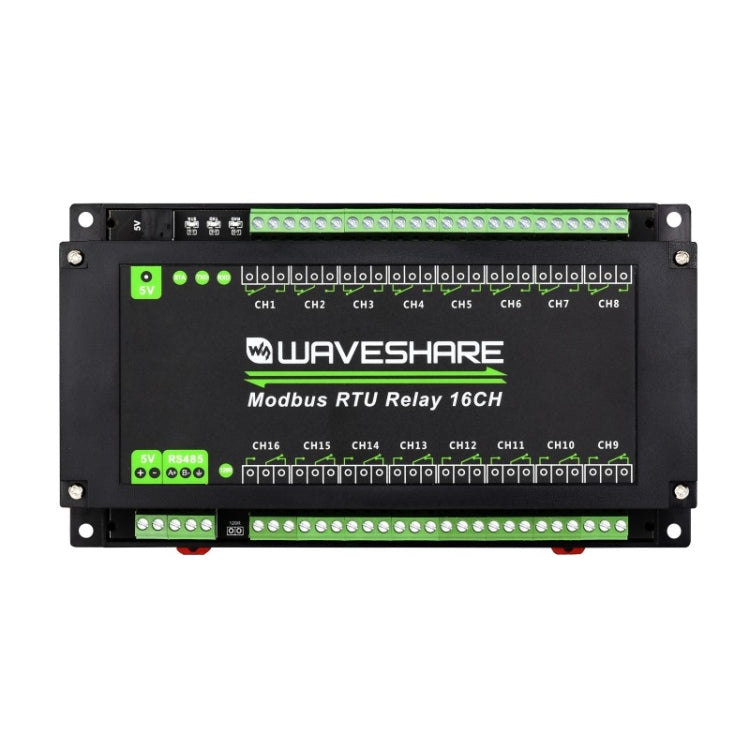

Waveshare 24921 Modbus RTU 16-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits

Name: Waveshare 24921 Modbus RTU 16-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits
Brand: Waveshare
SKU: TBD05765283
Price: 1309.00 ZAR
Availability: InStock

R 1,309.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Features:

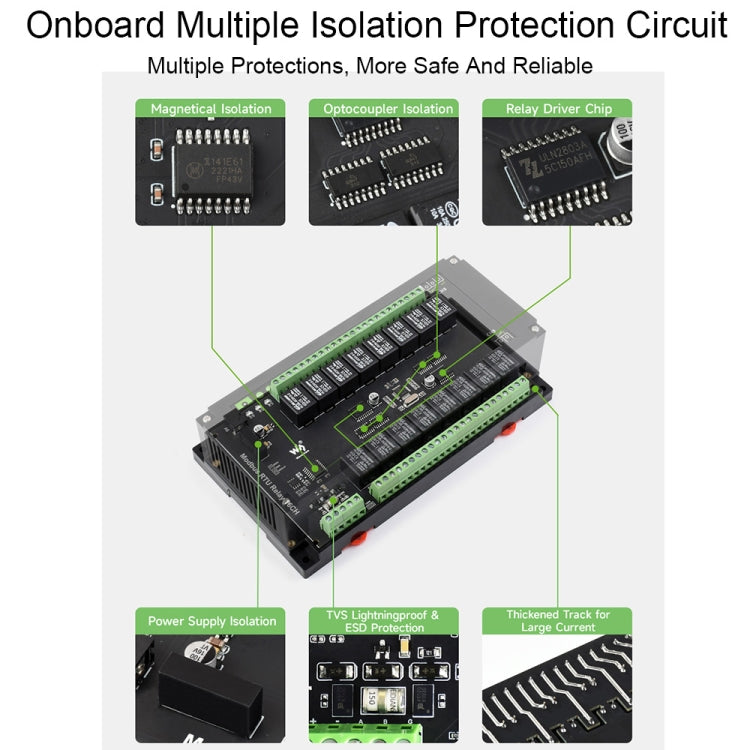

1. This product is an industrial-grade 16-channel relay module controlled by RS485 bus, using Modbus RTU protocol, built-in power isolation, ADI magnetic isolation, resettable fuse, TVS diode and other protection circuits, and equipped with ABS case.
2. Modbus RTU 16 channel relay is very easy to use. Due to its fast communication speed, stability, reliability and security, it is ideal for industrial control equipment and/or applications with high communication requirements.

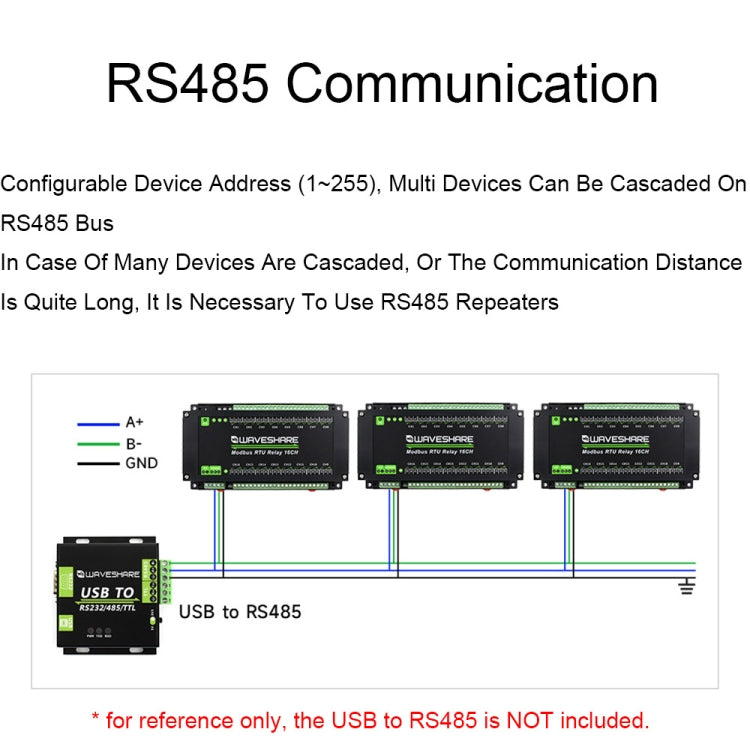

3. Configurable device address (1-255), multiple devices can be cascaded on the RS485 bus
4. It has the function of blinking and blinking. By passing parameters to the command, the relay can be opened for a period of time and then automatically closed
5. On-board integrated power isolation, providing stable isolation voltage, no additional power supply is required at the isolation end
6. Onboard integrated ADI magnetic isolation, which can realize signal isolation, high reliability, strong anti-interference and low power consumption
7. Onboard resettable fuse and TVS (transient voltage suppressor), effectively suppress surge voltage and transient peak voltage in the circuit, provide overcurrent/overvoltage, lightning protection, anti-static
8. On-board optocoupler isolation to prevent the relay from being interfered by the high-voltage circuit
9. On-board dedicated relay driver chip, built-in freewheeling diode protection, stronger and more stable driving capability
10. Anti-reverse connection circuit to prevent accidental damage to the circuit by wrong connection

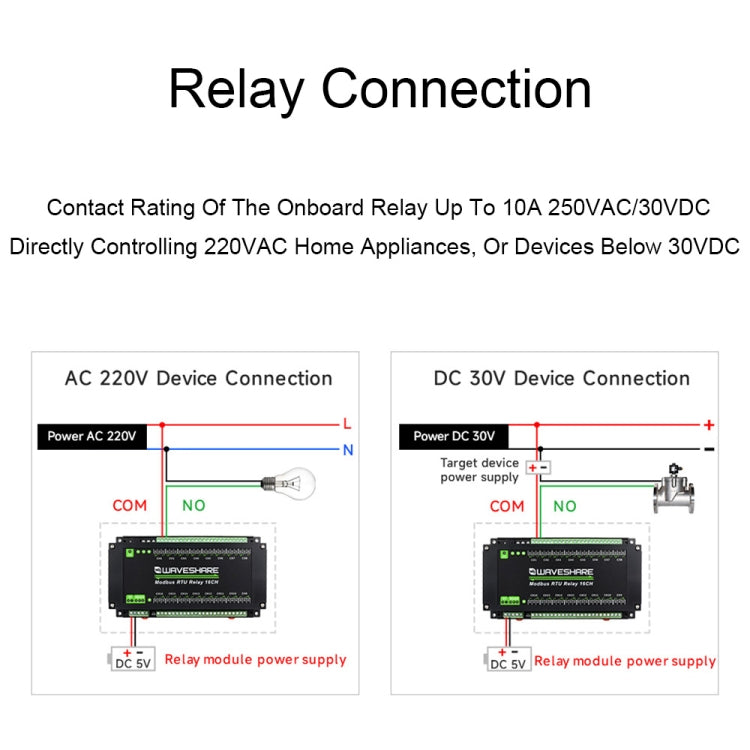

11. High quality relay, contact rating: ≤10A 250VAC/30VDC

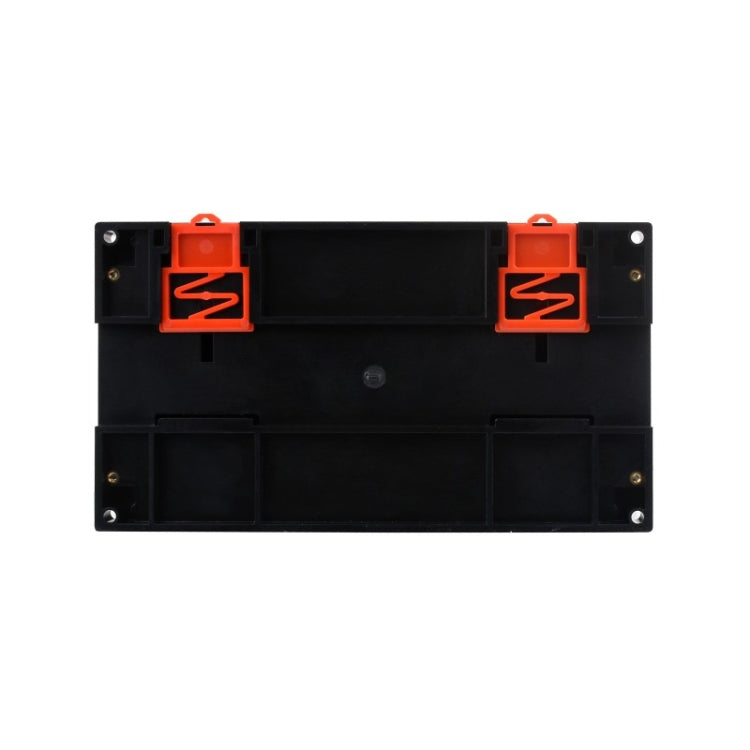

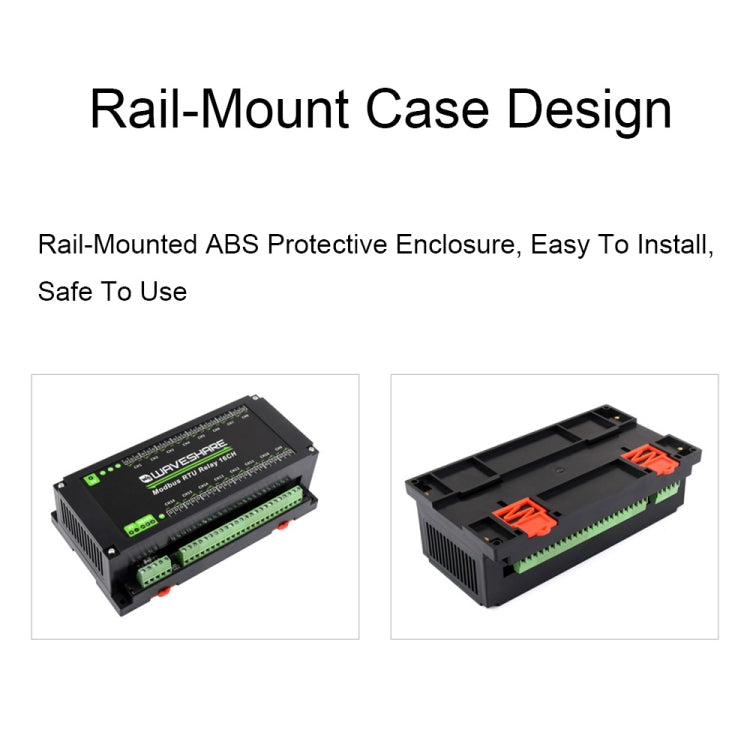

12. Rail-type ABS shell, easy to install and safe to use
13. There are 3 LEDs for indicating MCU status and signal sending and receiving status

Product parameters:
1. Working voltage: 5V
2. Communication interface: RS485
3. Baud rate: 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
4. Default communication format: 9600, N, 8, 1
5. Relay channel: 16
6. Contact information: 1NO 1NC
7. Communication protocol: standard Modbus RTU protocol
8. RS485 address: 1-255
9. LED indicator light:
STA: MCU indicator light, it keeps flashing when the MCU is working normally
TXD: TX indicator light, lights up when sending data
RXD: RX indicator light, lights up when receiving data

Packing list:
-Modbus RTU relay 16CH x1
-US Plug 5V 2A power supply (with EU head adapter) x1
