Waveshare Audio Expansion Module for Raspberry Pi Pico, Concurrently Headphone / Speaker Output

Waveshare Audio Expansion Module for Raspberry Pi Pico, Concurrently Headphone / Speaker Output

Regular price R 489.00
Regular price Sale price R 489.00
Sale Sold out
FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Features

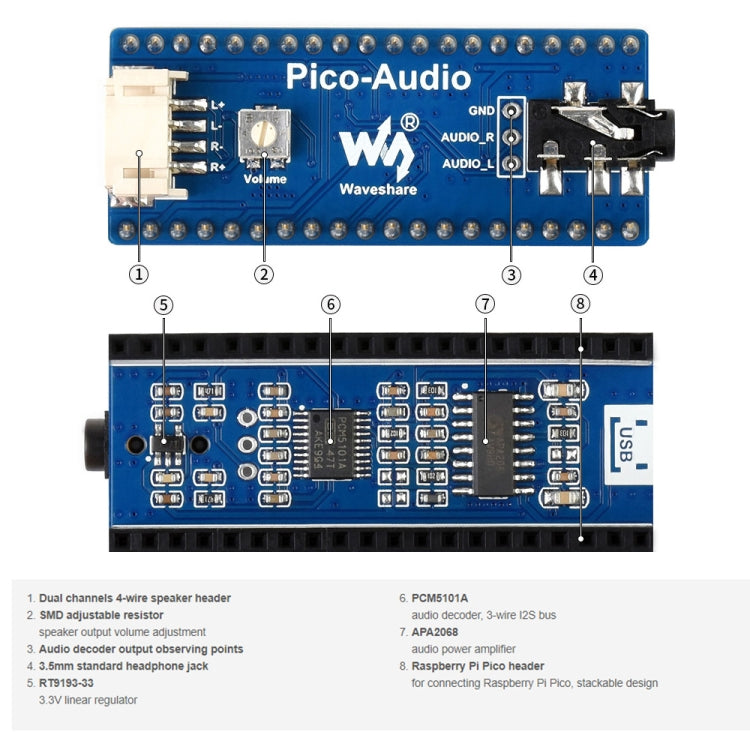

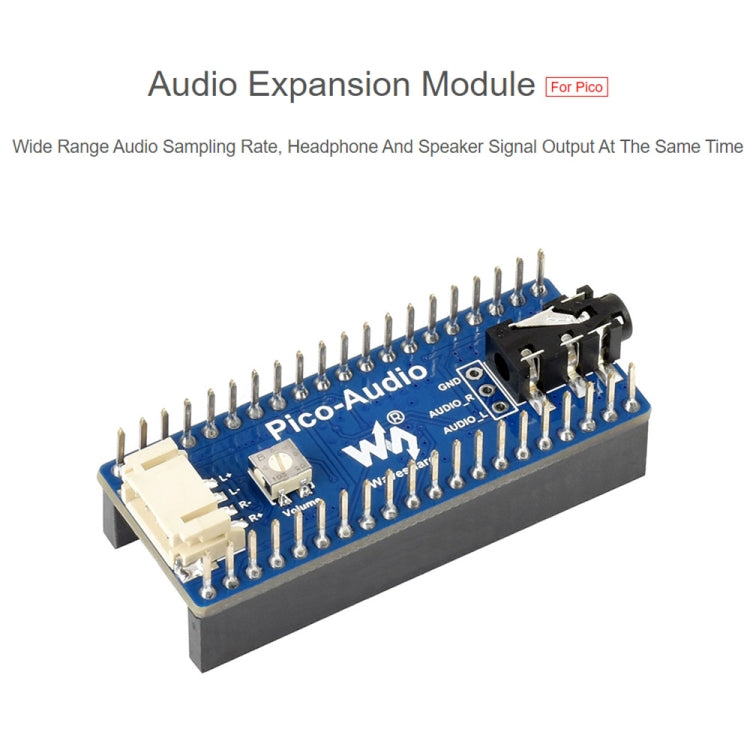

The Pico-Audio is an audio expansion module designed for Raspberry Pi Pico, which incorporates PCM5101A low power stereo decoder, and uses I2S bus for transmitting audio signal. It supports wide range audio sampling rate, allows headphone and speaker signal output at the same time.

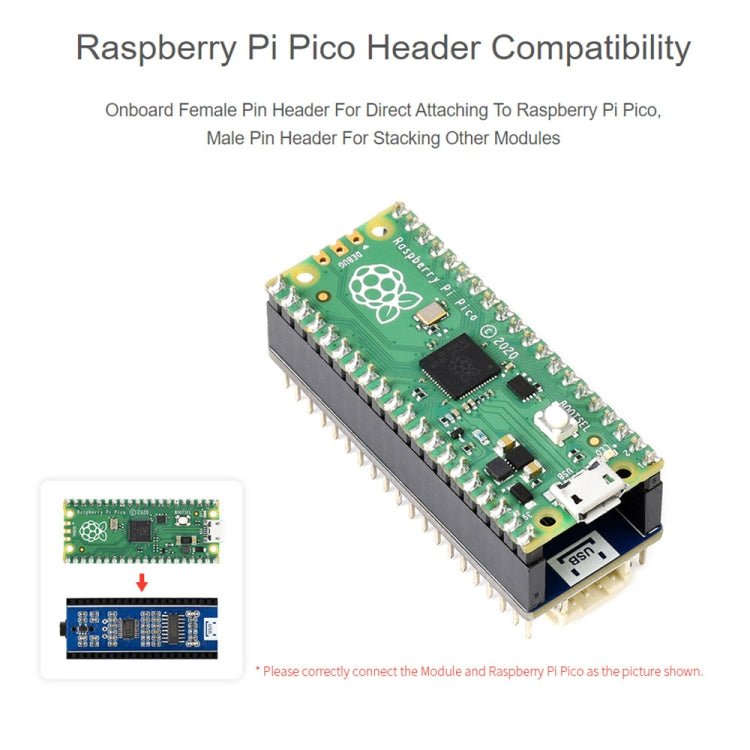

1. Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
2. Standard 3.5mm audio jack, for connecting external headphone
3. Dual channels speaker headers, for direct driving speakers
4. 8~384000Hz audio sampling rate
5. Stereo sound effect output
6. Using 3-wire I2S, effectively reducing EMI
7. Come with development resources and manual (Raspberry Pi Pico audio play code, sound card code)

Specification
1. Operating voltage: 5V
2. Logic level: 3.3V
3. Audio decoder: PCM5101A
4. Audio BUS: I2S
5. DAC SNR: 106 dB
6. Speaker driving: 2.6W/channel (4ohms BTL)

Package List
1. Pico-Audio x1
2. 8ohms 5W speaker x1
