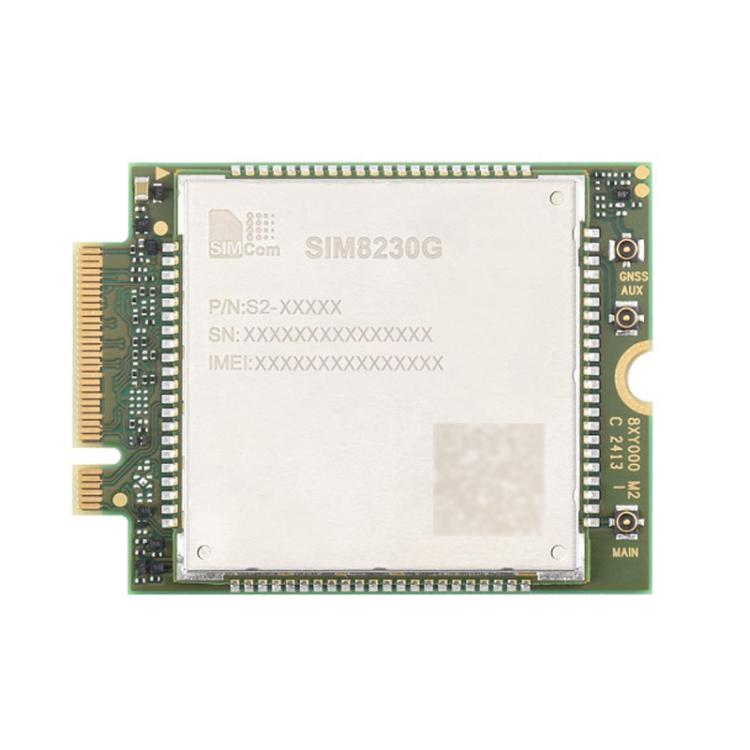

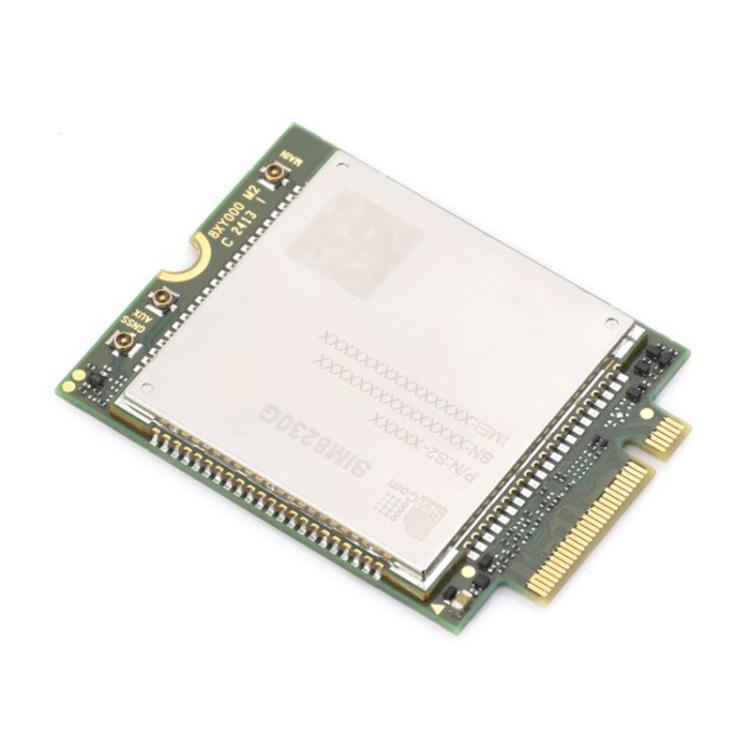

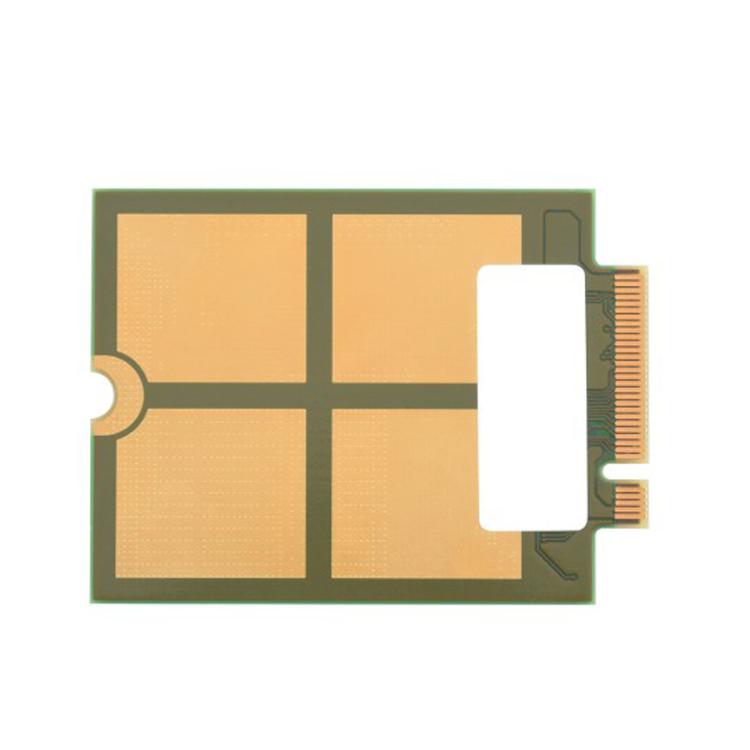

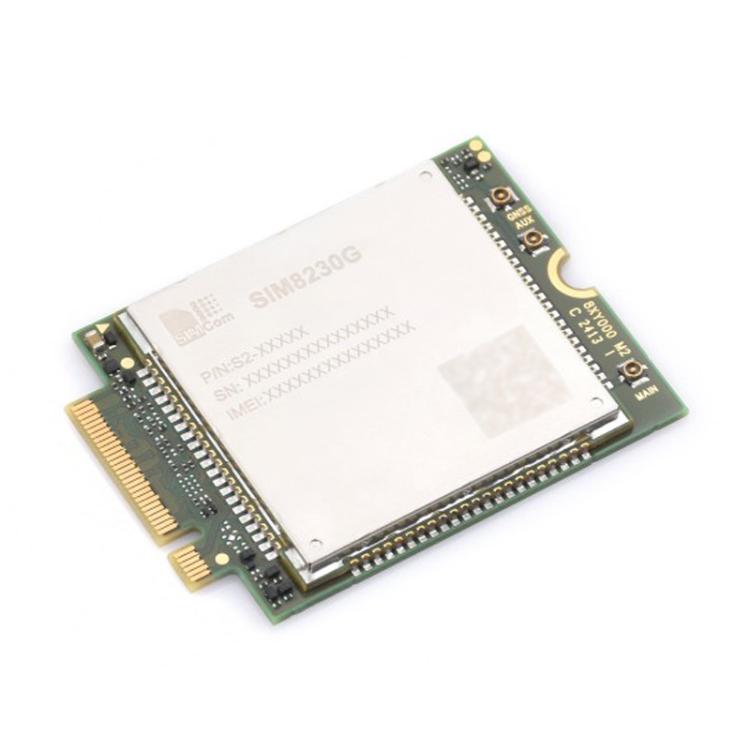

WAVESHARE SIM8230G-M2 Qualcomm Snapdragon X35 CoreXpress RedCap Module Smart Gateway Development Board

• Product type: Modules Expansions Accessories
• Brand: WAVESHARE
• Compatibility: Qualcomm Snapdragon X35
• Material: M.2
• Key feature: Multi-band 5G NR / LTE support
• Color/Variant: RedCap
• Intended use: Efficient data communication
• Category: Electronics Module

1. Multi-band 5G NR / LTE-FDD / LTE-TDD module, supporting 5G standalone (SA) mode and up to 220Mbps download rate
2. Strong expansion capability, rich interfaces, including USB 2.0 and GPIO, etc., and support for a variety of network protocols
3. Adopting M.2 form factor, its AT commands are compatible with SIM7600/SIM8200/SIM8260 series modules
4. Designed for efficient and reliable data communication under various radio propagation environments, and can be widely adapted to various application scenarios
5. Standard M.2B KEY interface
6. 5G RedCap module with low power consumption and light weight
7. 5G standard: 3GPP R16
8. Chip solution: Qualcomm Snapdragon X35
9. Communication protocol: TCP/IP, IPv4, IPv6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
10. Dial-up Internet: RNDIS, ECM, PPP
11. Short message (SMS): support MT, MO, CB, Text, PDU
12. Firmware upgrade: support firmware upgrade via USB interface
13. SIM card: 1.8V/2.95V
14. Antenna Interface: 3 x IPEX-4 interface
15. Supply Voltage: 3.4V - 4.4V
16. Operating temperature: -30 to 70 degrees Celsius

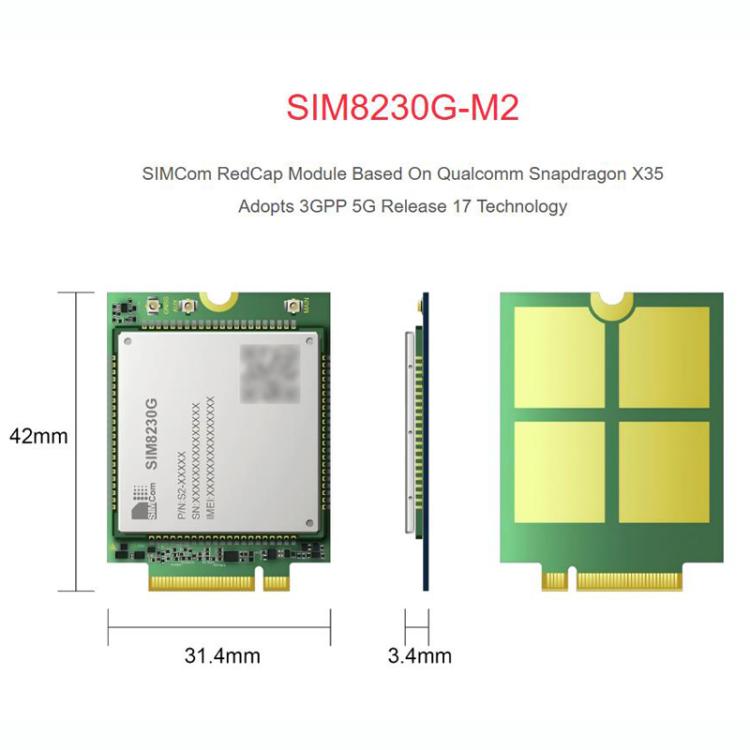

17. Size: about 4.2 x 3.14 x 0.34cm
