Yahboom MCU RCT6 Development Board STM32 Experimental Board ARM System Core Board, Specification: APM32E103RET6
Yahboom MCU RCT6 Development Board STM32 Experimental Board ARM System Core Board, Specification: APM32E103RET6
In stock
🔥 Buy 2 items, get 25% off 3rd item 🔥 hurry while stock lasts!
Couldn't load pickup availability
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
FREE Shipping
FREE Shipping
FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.
Handling time: 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time: 5 - 10 working days.
Overseas Warehouse: Shipping from China.
Duties and Taxes
- For orders up to and including R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
- For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

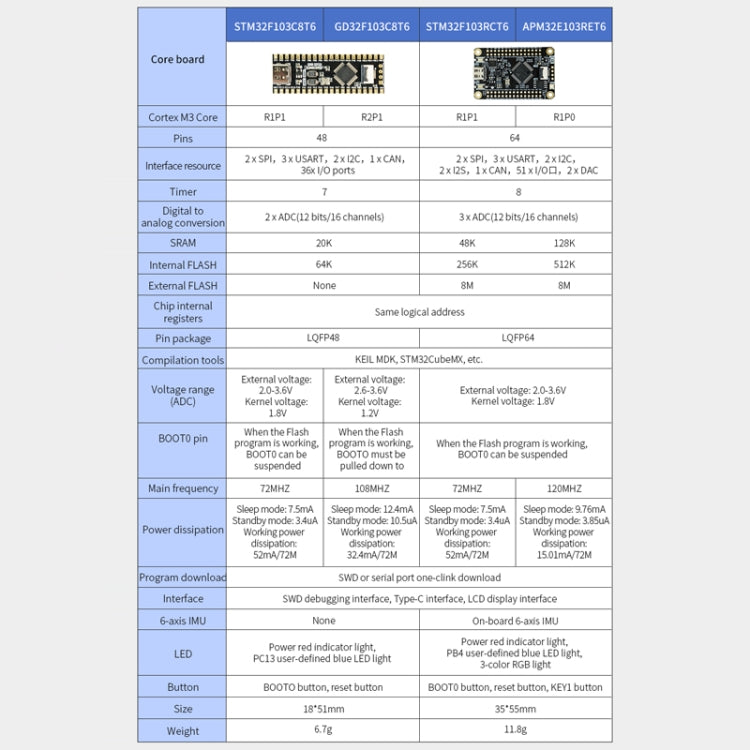

1. STM32F103C8T6: It is a model with a high market share in the single-chip microcomputer market, and is widely used in electronic design competitions, smart cars, robots, flight control, industrial control and other fields
2. GD32F103C8T6: It is a domestic alternative to STM32F103C8T6. The peripheral pins are exactly the same as 3. STM32F103C8T6. It is equipped with a new generation of Cortex M3 core, with higher CPU frequency, lower power consumption and higher cost performance.
4. STM32F103RCT6: Contains all the pins of STM32F103C8T6 and some other peripheral pins, which can directly use the STM32 large-capacity standard library
5. APM32E103RET6 is a domestic alternative to STM32F103RCT6. It has a higher main frequency clock and lower operating power consumption. The built-in flash is 2 times that of RCT6, and the SRAM is 2.7 times that of RCT6. It is more cost-effective

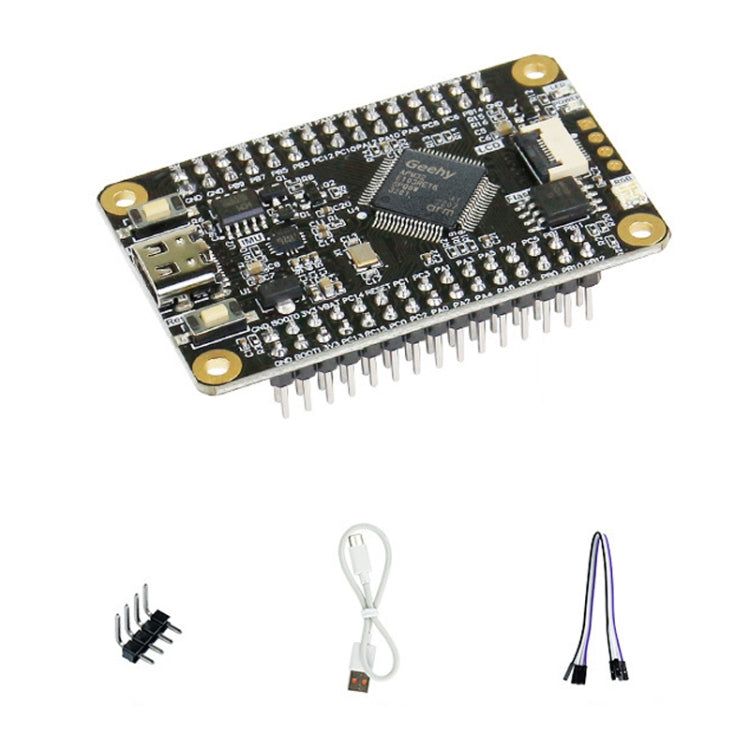

6. The board is equipped with STM32 small system circuit, among which STM32F103RCT6 and APM32E103RET6 are also equipped with a 6-axis IMU on board, which can be used to obtain motion attitude
7. The core board leads to all 1/0 port resources
8. With SWD simulation debugging download interface, compared with traditional JTAG debugging, it is more reliable in high-speed mode, and the probability of download failure is smaller
9. Immersion gold technology, small size, reasonable and standardized layout and routing, high-quality SMD crystal oscillator, high quality
10. Using the Type-C interface, it can be used for power supply, program download and serial communication
11. C8T6 is equipped with high-quality 1x20 pin headers to ensure firm contact. At the same time, it adopts half-hole technology to facilitate customers to solder leads
12. RCT6/RET6 is equipped with high-quality 2x15 pin headers to ensure firm contact, and can be placed on a universal board or breadboard according to requirements

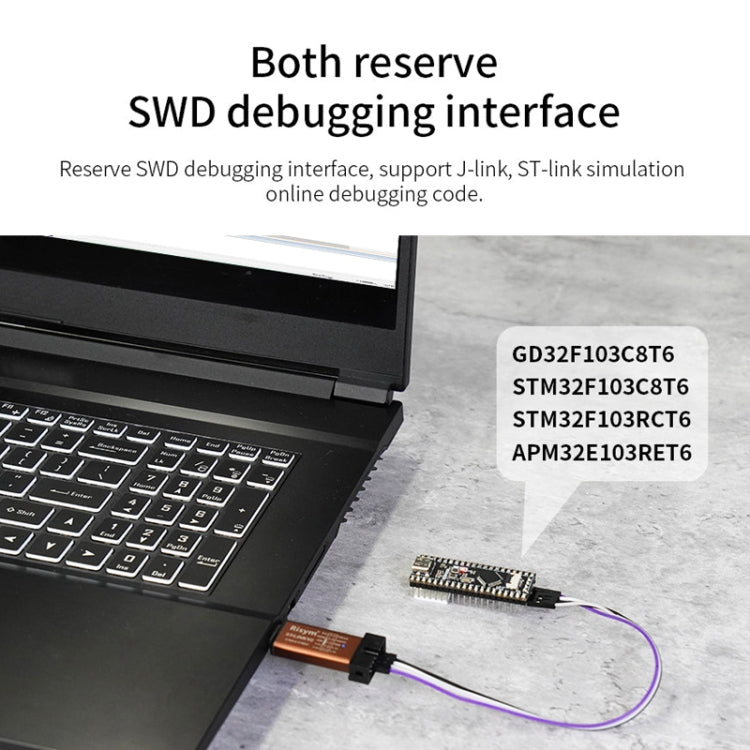

13. Reserve SWD debugging interface, support J-link, ST-link simulation online debugging code
14. The onboard 8P FPC connector supports the connection of a 0.96-inch TFT color display, which can be used to display Chinese characters, character strings, and pictures
15. GD32F103C8T6/STM32F103C8T6 size: 18x51mm
16. APM32E103RET6/STM32F103RCT6 size: 35x55mm
17. GD32F103C8T6/STM32F103C8T6 weight: 6.7 grams
18. APM32E103RET6/STM32F103RCT6 weight: 11.8 grams

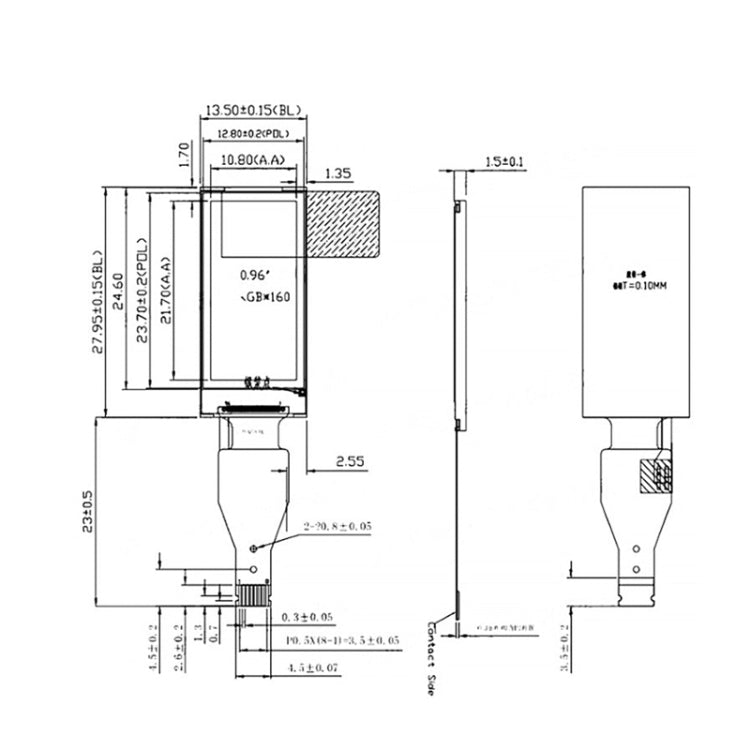

TFT color screen:
1. Size: 0.96 inches
2. Material: HD IPS LCD
3. Resolution: 80(H)RGBx160(V)
4. Driver chip: ST7735S
5. Communication interface: iic
6. Display color: full color
7. Display area: 10.8(H)x21.7(V)mm
8. Panel size: 13.5(H)x27.95(V)x1.5(D)mm
9. Pixel pitch: 0.135(H)x0.1356(V)mm
10. Connection method: plug-in type 8Pin (0.5mm pitch plug-in type)
11. Working current: 20ma
12. Working voltage: 3.3V
13. Working temperature: -20~70 degrees
14. Backlight type: side-lit LED backlight
