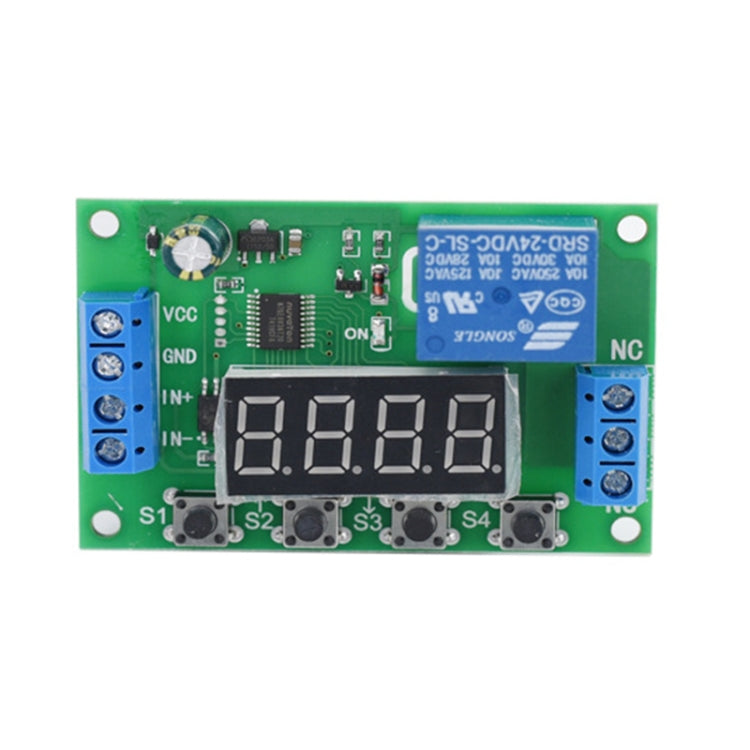

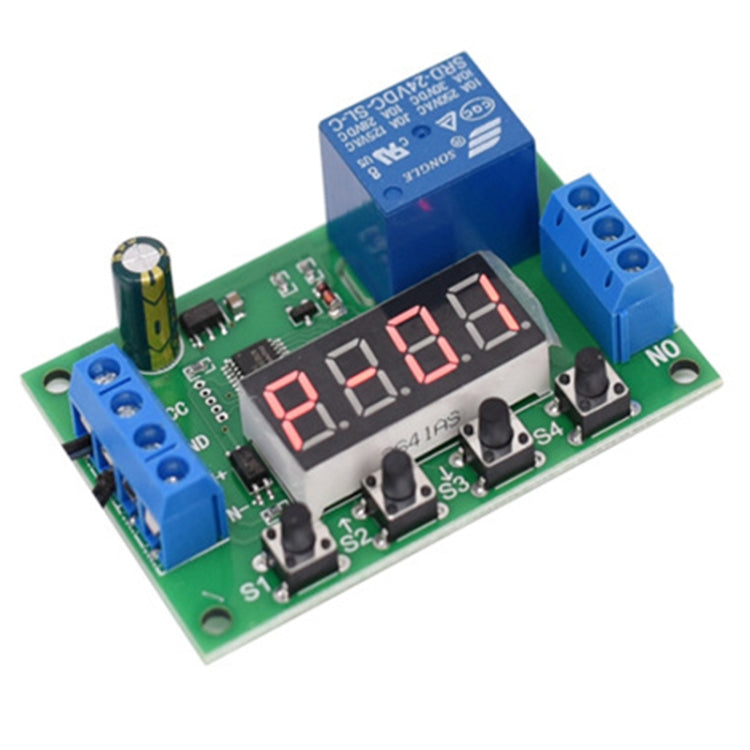

12V Time Relay Module Trigger OFF / ON Switch Cycle Timing Relay Board

• Product type: Relay Module
• Compatibility: 12V systems
• Material: Not specified
• Key feature: Multifunctional time relay
• Color/Variant: Not specified
• Intended use: Automation and control
• Category: Arduino & SCM Supplies

Specifications
1. Supply voltage: DC 12V
2. Trigger terminal voltage: DC 5~30V (can also be triggered by button)
3. Relay control current: 10A

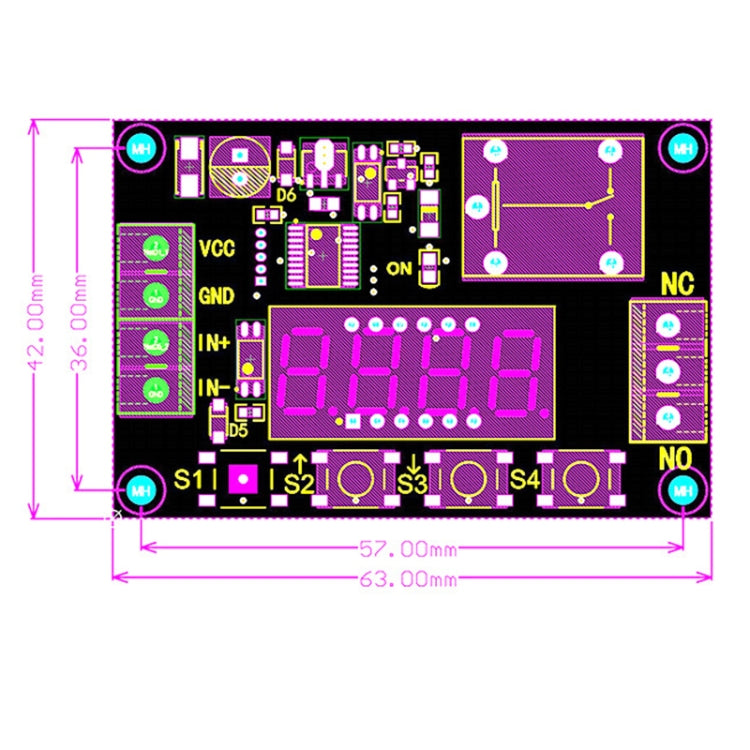

4. Module size: 63 x 42 x 20mm (length, width and height)

About The Product
1. Multifunctional time relay module, a variety of working voltages are optional, DC12V

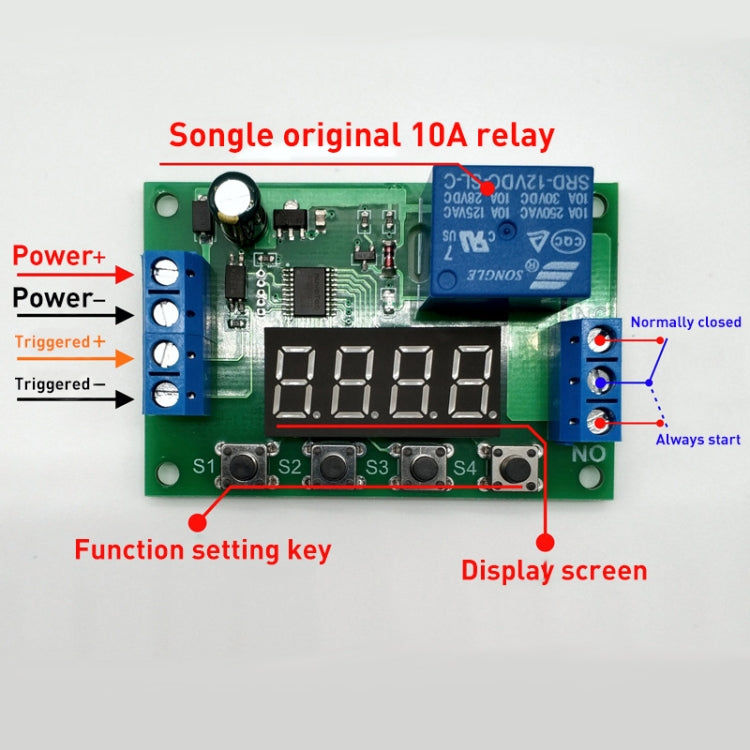

2. The output terminal is isolated from the circuit by a relay, which can control low-voltage electrical appliances and 220V lines, with a control capacity of up to 10A.
3. There are as many as 27 working modes to meet various testing and automatic control applications, and the delay time is adjustable from 0.01 seconds to 999 minutes.
4. The trigger port can be triggered by a voltage signal, or it can be triggered by a button.
