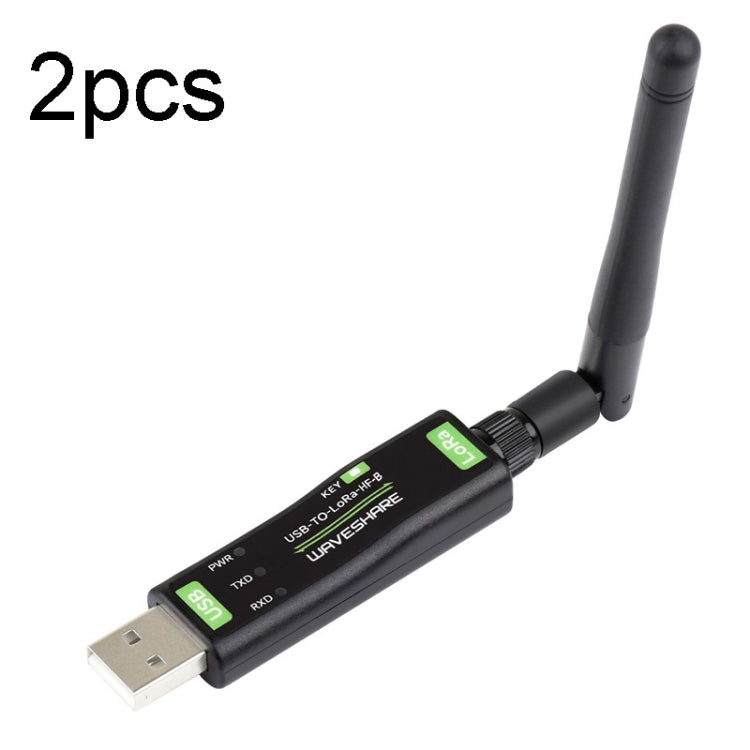

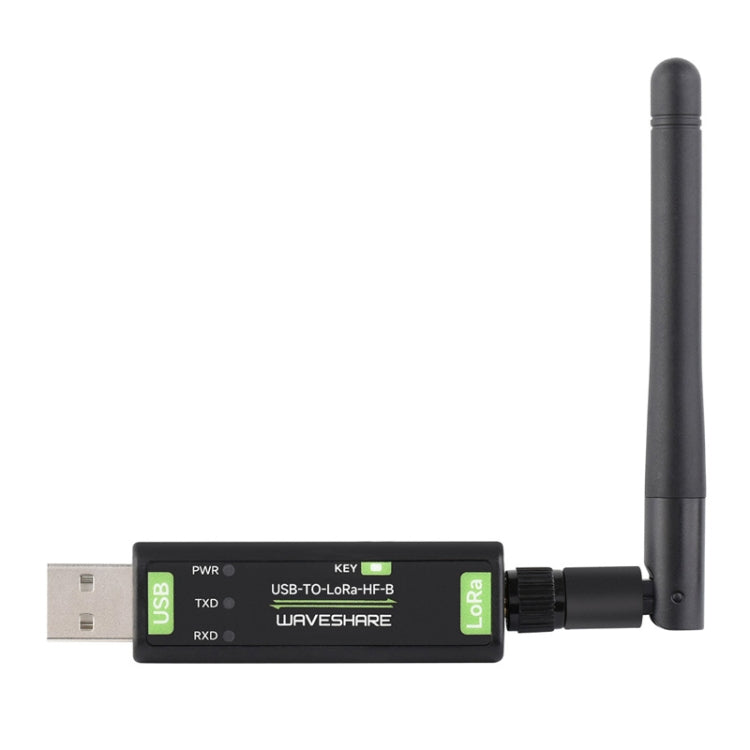

2pcs Waveshare 24516 USB To LoRa Data Transfer Module Based On SX1262 HF Version Using XTAL Crystal Oscillator

Name: 2pcs Waveshare 24516 USB To LoRa Data Transfer Module Based On SX1262 HF Version Using XTAL Crystal Oscillator
Brand: WAVESHARE
SKU: TBD0426277704
Price: 809.00 ZAR
Availability: InStock

R 809.00

Sale Sold out

FREE DELIVERY on all orders.

🔥 Buy 2 items, get 25% off 3rd item 🔥 Today only!

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

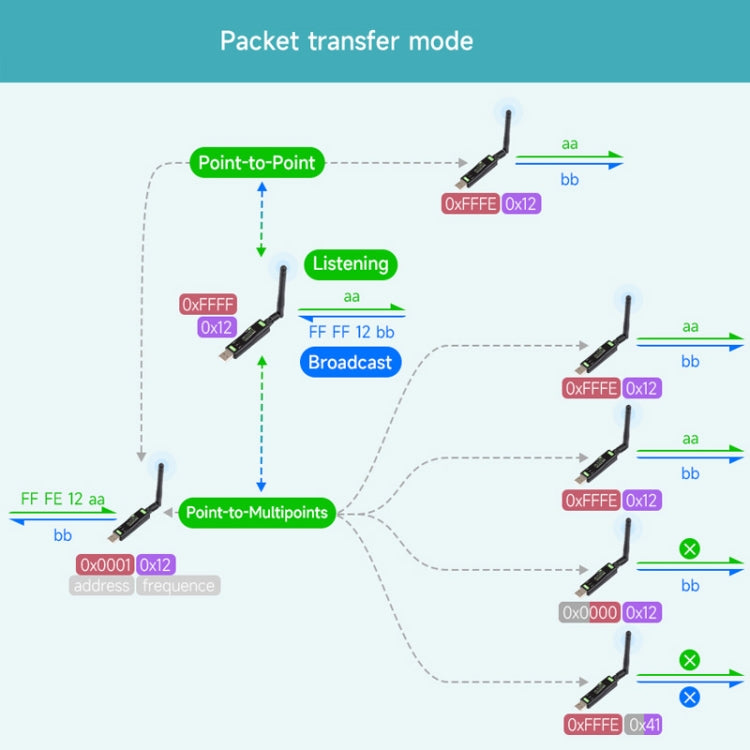

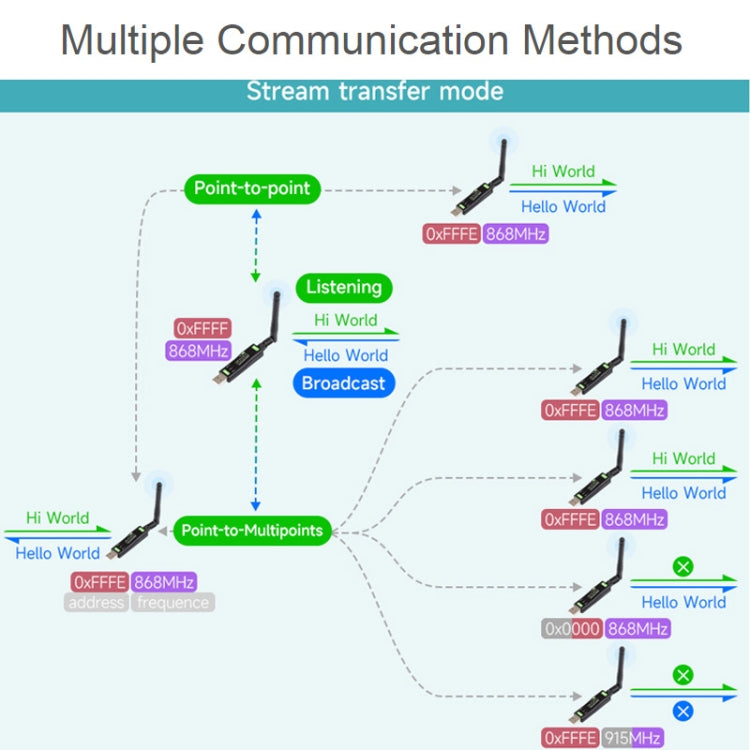

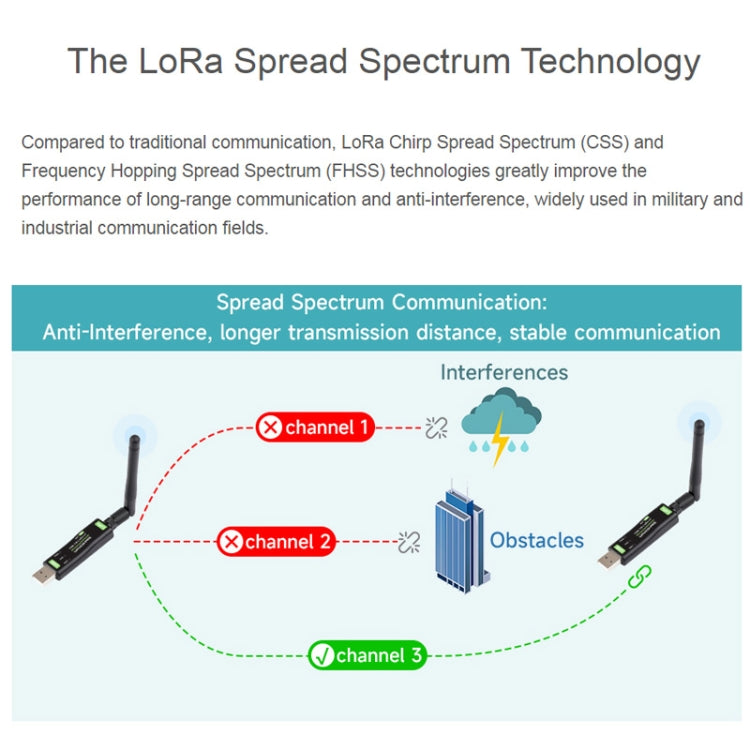

1. This product is a wireless data transmission terminal based on the USB interface of the SX1262 solution. Using LoRa modulation and demodulation technology, it has the characteristics of strong anti-interference and long-distance communication, and the communication distance can reach 5KM. It supports point-to-point, point-to-multiple, relay networking, AES encryption and other communication methods. It is small in size and easy to install. It is suitable for standard or non-standard user protocol wireless data transmission and equipment control of industrial control.
2. Use SX1262 solution, with -148dBm receiving sensitivity and 22dBm transmitting power
3. Support preamble detection, with CRC, automatic subpacket, 960 byte cache function

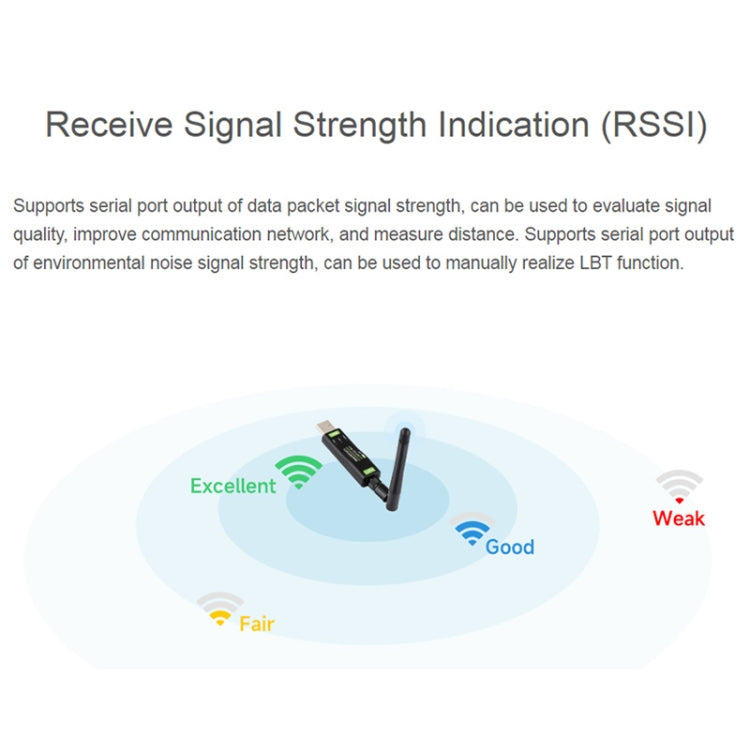

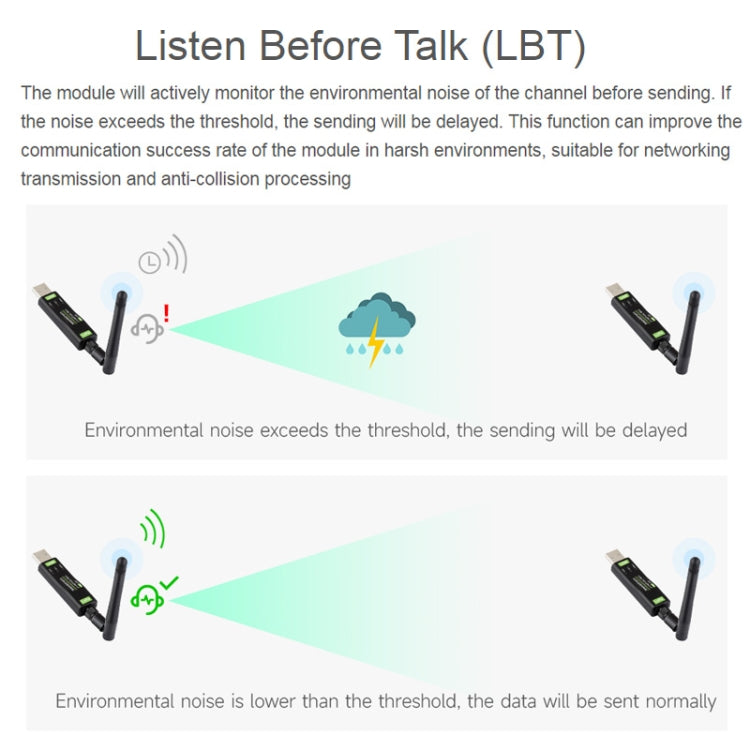

4. Support LBT transmission, RSSI output, AT command set setting

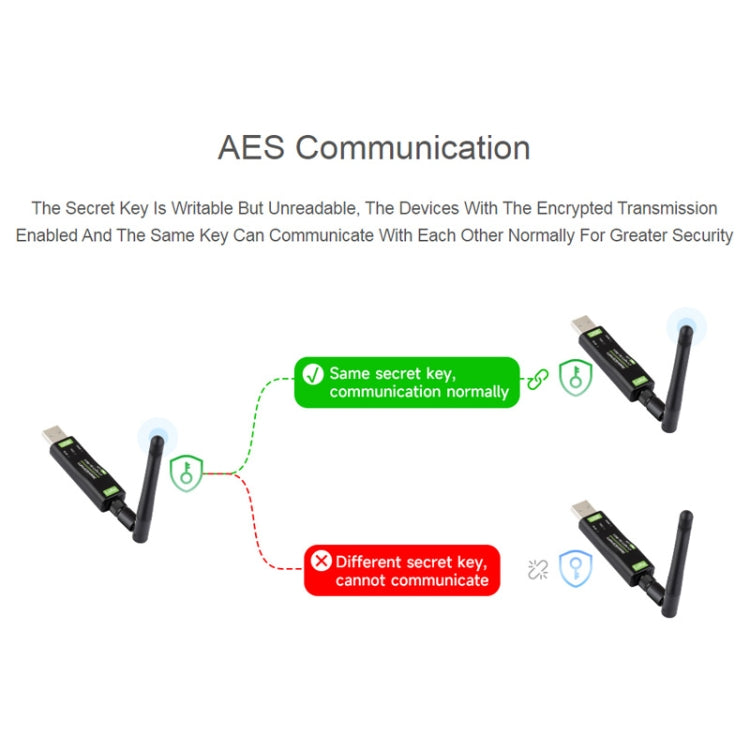

5. Support AES encrypted communication to ensure the security of data transmission

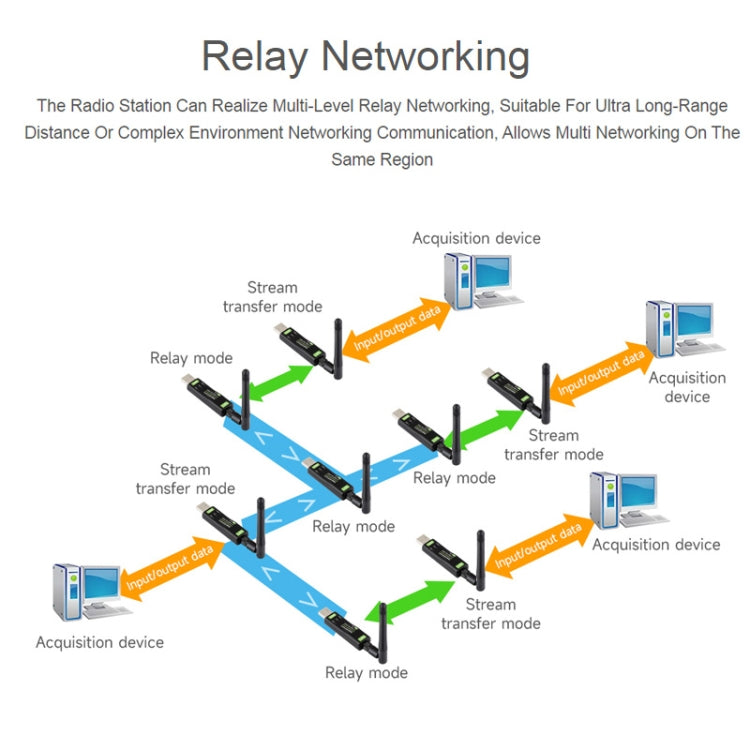

6. Support multi-level relay networking to increase the distance of wireless communication

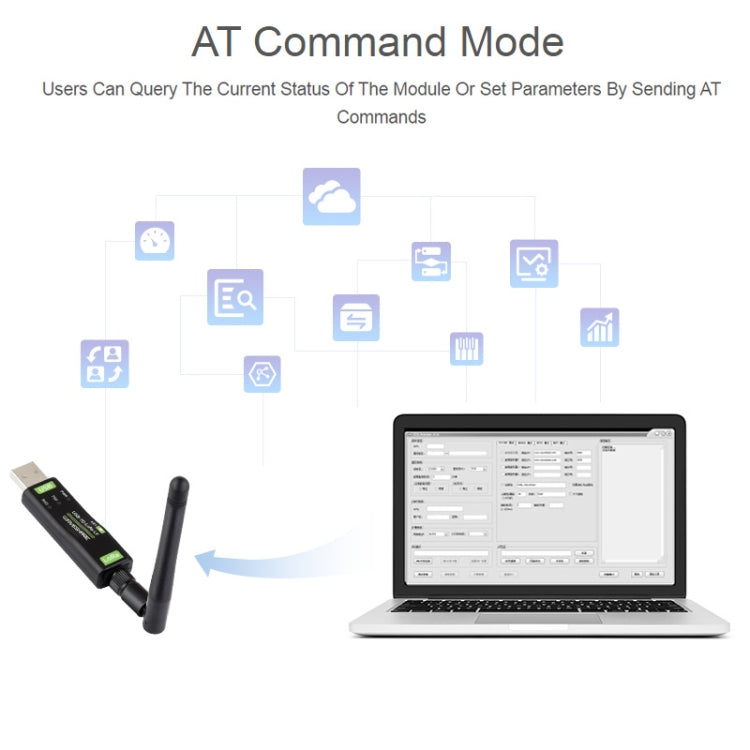

7. Support PC configuration and firmware upgrade
8. Provide a complete supporting manual

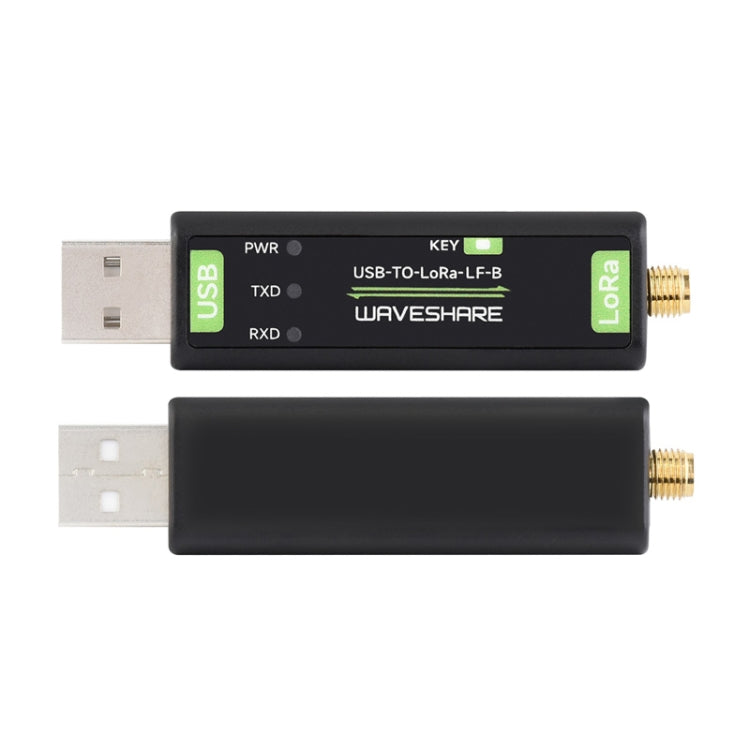

Shape parameters:
-Interface type: USB Type A

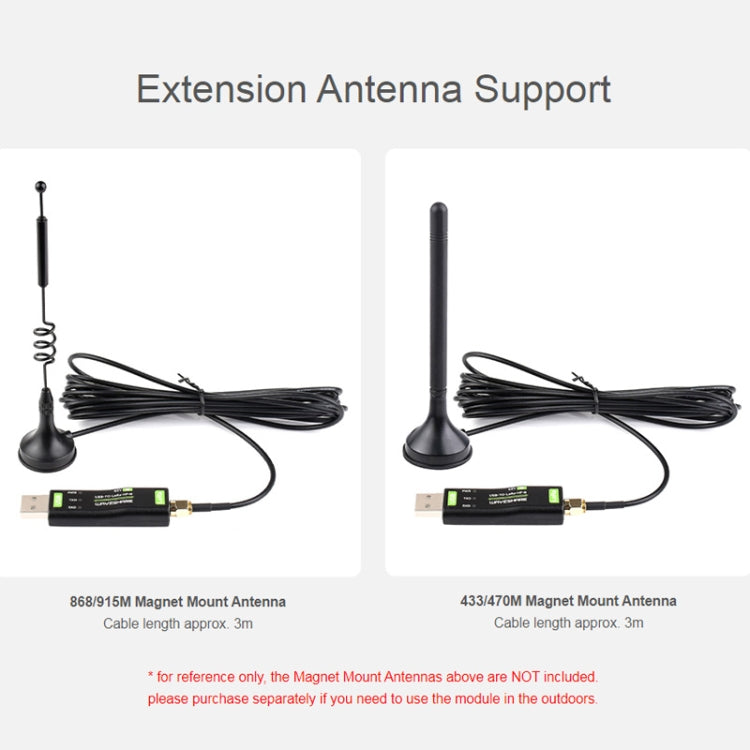

-SMA-KE female socket: 6dBi omnidirectional antenna × 1
-Shell: ABS shell
- Dimensions: 56.40 × 18.40 × 12.52mm

Wireless parameters:
- Frequency band: Sub-GHz (410~510MHz, 850~930MHz)
- Signal modulation: LoRa
-Encryption type: AES128
- Transmitting power: +22dBm Max
-Receiving sensitivity: -148dBm

Serial parameters:
- Baud rate: 1200 ~ 115200bps
- Parity bit: none, odd parity, even parity
-Data bits: 8 ~ 9 bits
- flow control: N/A

Environmental requirements:

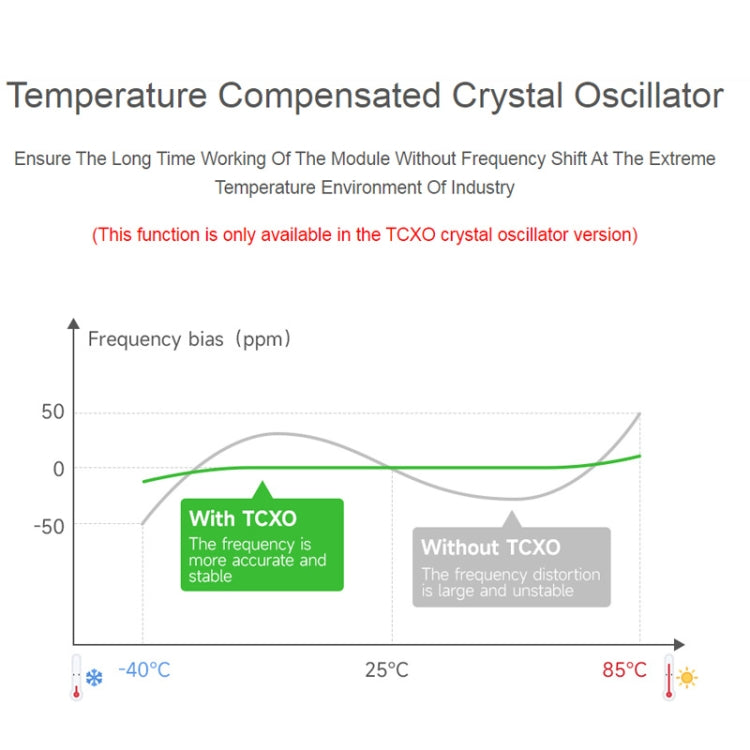

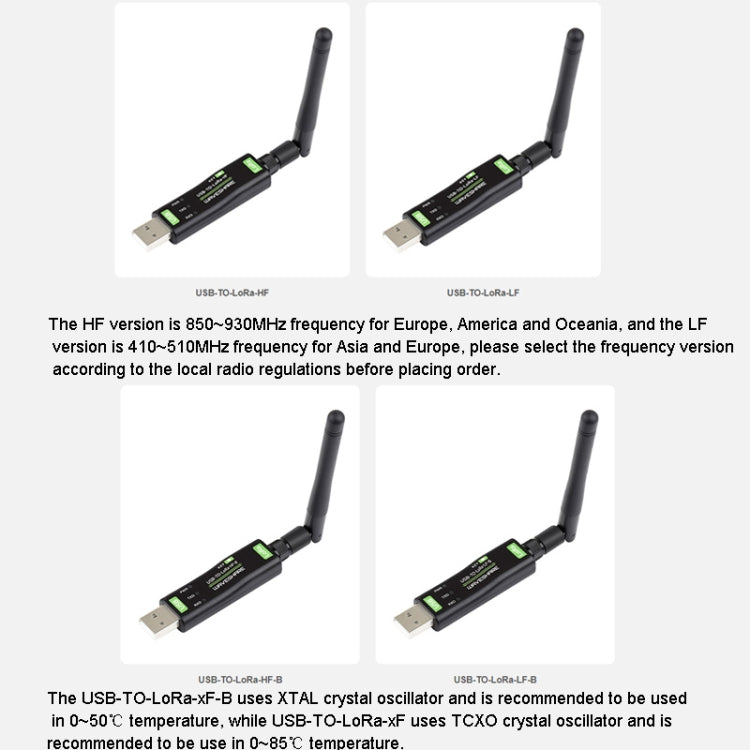

- Operating temperature: TCXO version 0 ~ 85 degrees Celsius, XTAL version: 0 ~ 50 degrees Celsius
- Humidity range: 5% ~ 95% relative humidity
