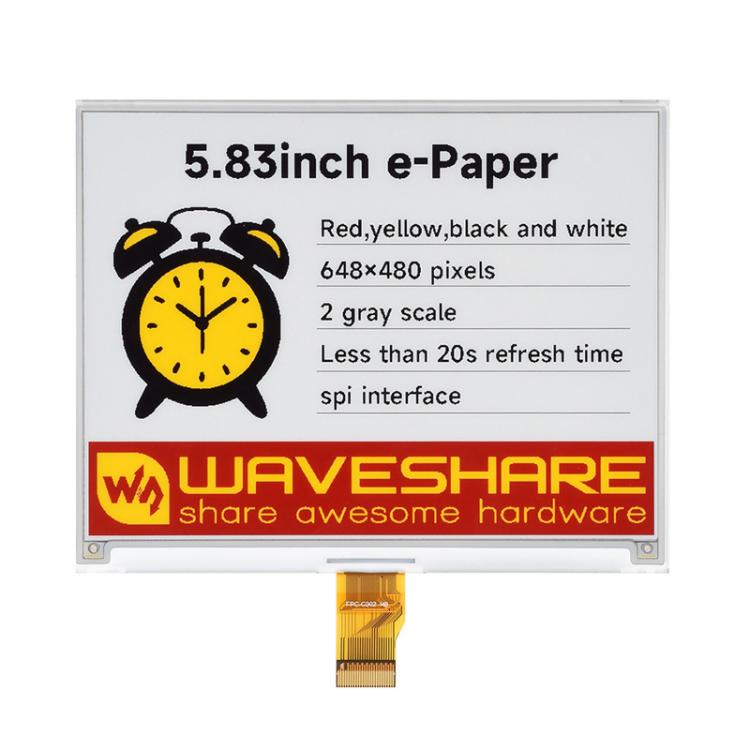

WAVESHARE 5.83 Inch E-Paper 4 Color E-Ink Display Module, Spec: Raw Display

• Product type: LCD & LED Display Module
• Brand: WAVESHARE
• Compatibility: Raspberry Pi, Jetson Nano, ESP32, Arduino, STM32
• Material: Not specified
• Key feature: Fast refresh rate
• Color/Variant: Red, yellow, black, white
• Intended use: Everyday use
• Category: Arduino & SCM Supplies

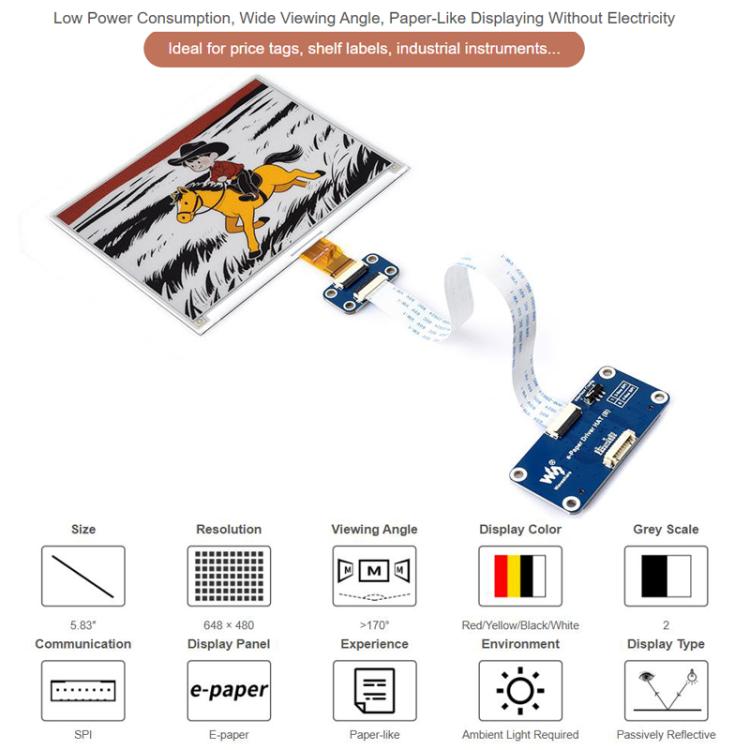

1. Operating voltage:- Bare screen version: 3.3V - Module version: 3.3V/5V 2. Communication interface: 3-wire SPI, 4-wire SPI 3. Dot pitch: 0.1833 x 0.1833mm4. Resolution: 648 x 480 pixels5. Display color: red, yellow, black, white 6. Gray scale level: 2 7. Fast refresh: 12s 8. Global refresh: 20s 9. Refresh power consumption: less than 100mW 10. Sleep current: less than 0.01uA (close to 0) 11. Viewing angle: more than 170 degrees12. Display size: about 118.78 x 88.22 mm13. External size:- Bare screen: about 125.4 x 99.5 x 1.2mm- Module: about 30.5 x 65mmFeatures:1. Based on Raspberry Pi 40PIN interface design, suitable for Raspberry Pi series motherboards, Jetson Nano2. Reserved SPI control interface, can be connected to Raspberry Pi / Jetson Nano / ESP32 / Arduino / STM32 and other motherboards3. On-board level shifter chip, compatible with 3.3V and 5V level interface4. Suitable for shopping mall price tags, asset and equipment tags, electronic shelf tags and conference name tags, etc.
