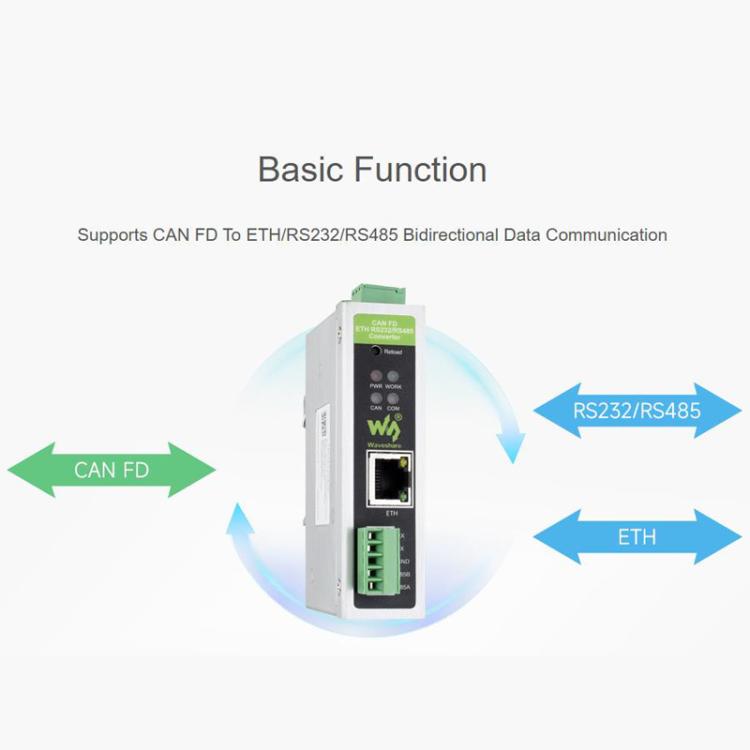

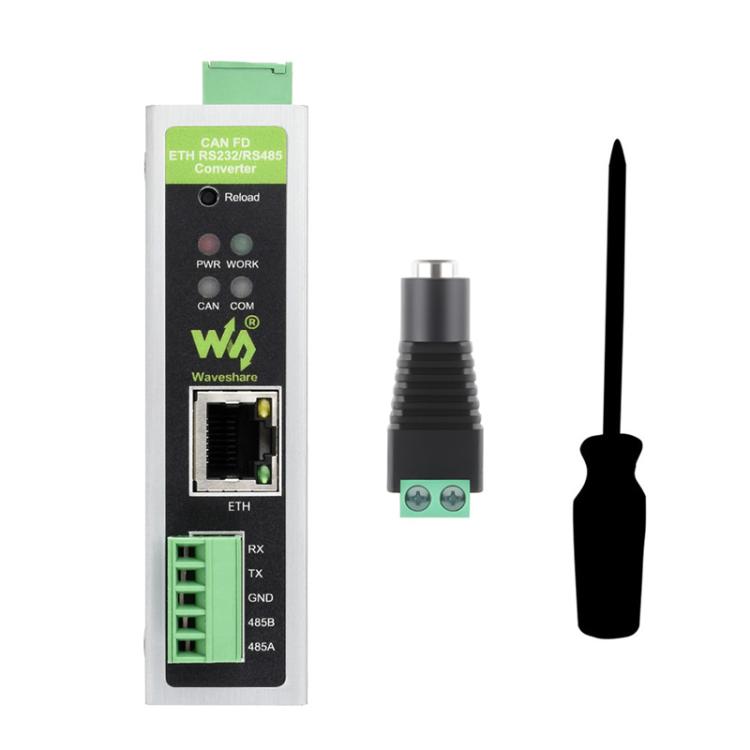

WAVESHARE CAN FD Protocol Converter Bidirectional Data Communication, Supports 5 Data Conversion Modes And CAN 2.0A/2.0B Protocols

• Product type: Modules Expansions Accessories
• Brand: WAVESHARE
• Compatibility: CAN FD, CAN 2.0A/2.0B
• Material: Not specified
• Key feature: Supports 5 data conversion modes
• Color/Variant: Not specified
• Intended use: Data communication
• Category: Electronics Module

1. Operating voltage: DC 9V - 36V
2. Installation: rail mounted
3. Reload button: long press to restore the use of settings

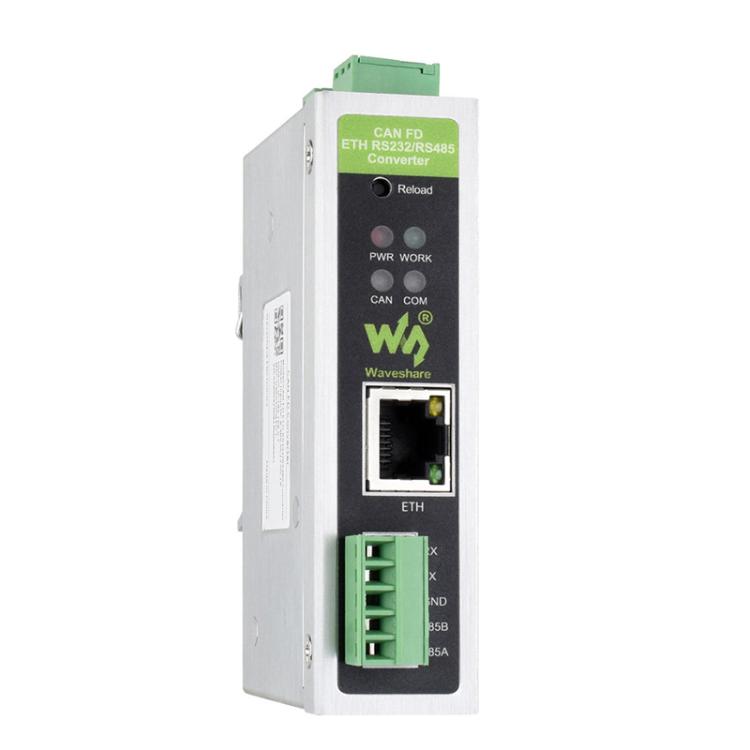

4. Indicator: POWER, WORK, COM, CAN
5. CAN port specification: 1 CAN port, support CAN FD, compatible with CAN 2.0A/2.0B

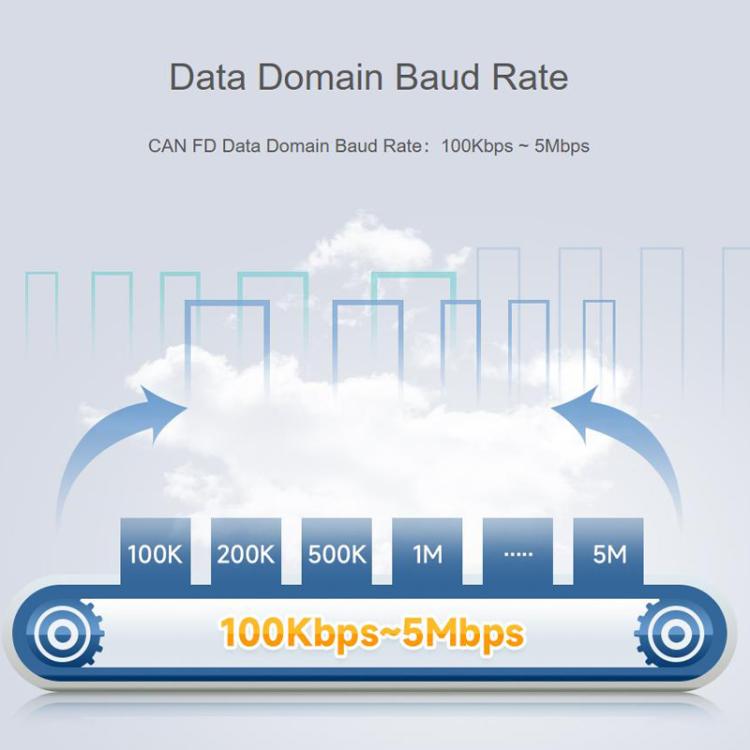

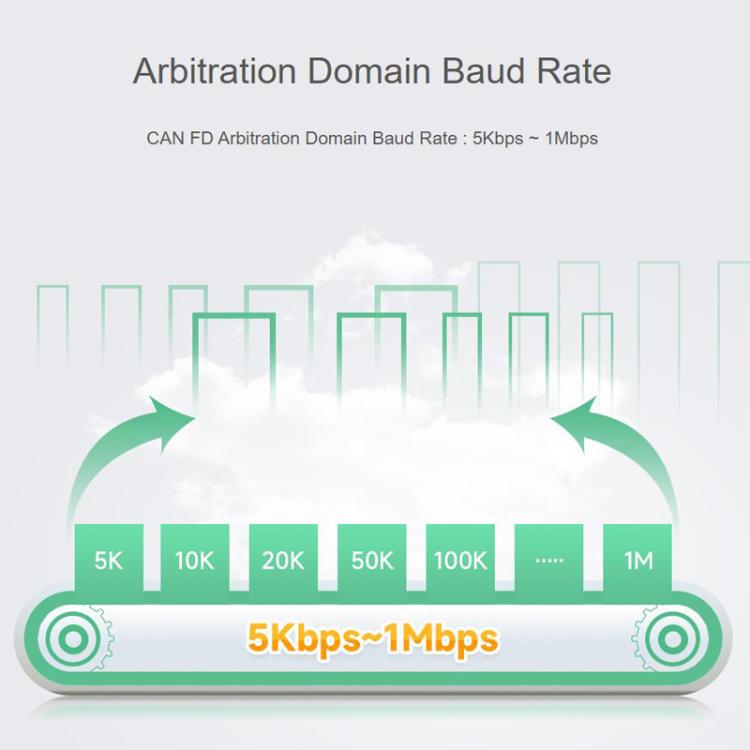

6. CAN port baud rate: 5Kbps - 1Mbps; data domain baud rate: 100Kbps - 5Mbps

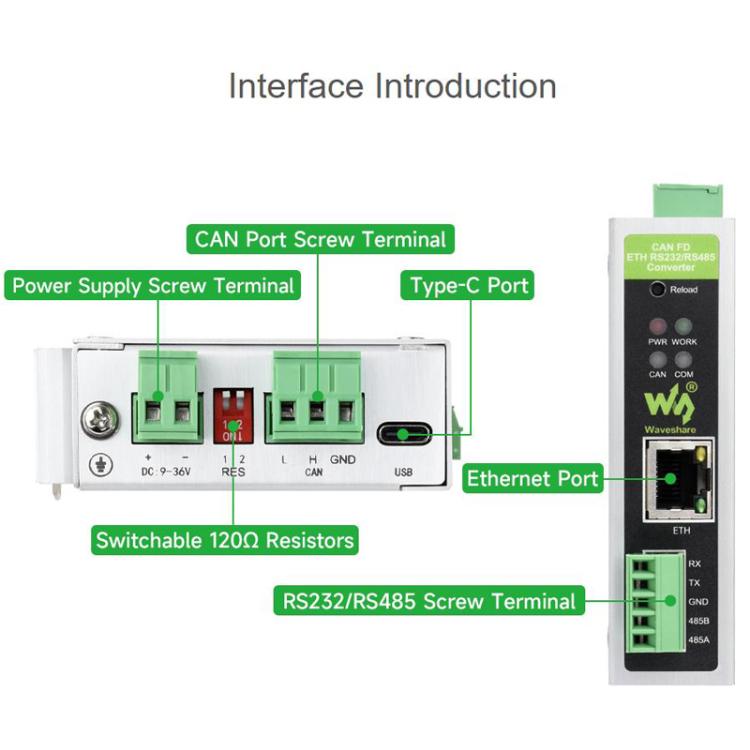

7. Termination resistor: built-in two 120-ohm termination resistors, dial any one of the dial code to ON, and connect a 120-ohm resistor in parallel, two dial code to ON, and connect two 120-ohm resistors in parallel
8. Network port specification: RJ45, 10/100Mbps, cross direct connection adaptive
9. Serial port specification: support one way RS485 or RS232 access

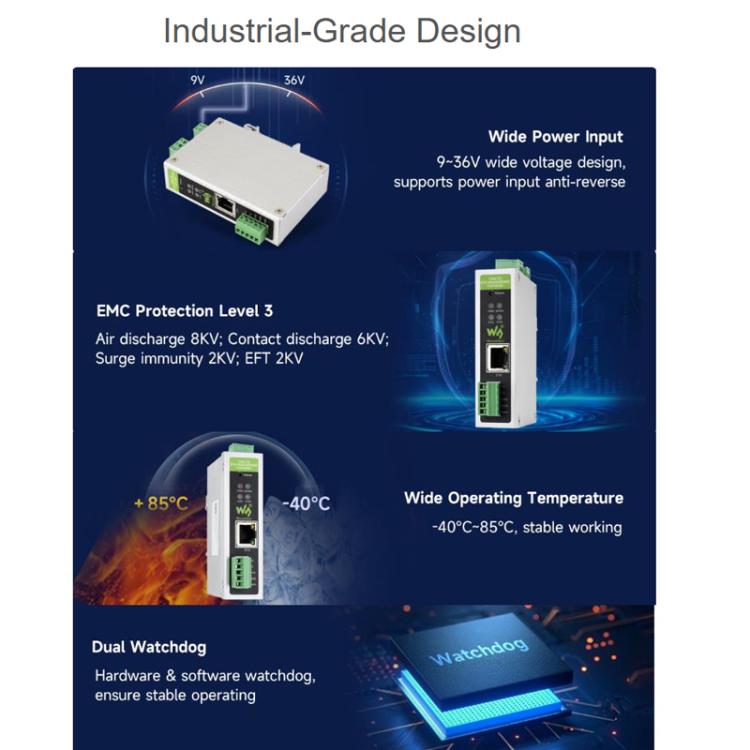

10. Operating temperature: -40 - 85 degrees Celsius
11. Storage temperature: -40 - 105 degrees Celsius
12. Operating/storage humidity: 5%RH ~ 95%RH (no dew)
13. Network protocol: TCP server, TCP client, UDP server, UDP client (network port)
14. Modbus gateway: Network port: CAN FD to Modbus TCP (master/slave);
15. Serial port: CAN FD to Modbus RTU (master/slave)
16. Send/receive messages: supports configuration of up to 64 messages

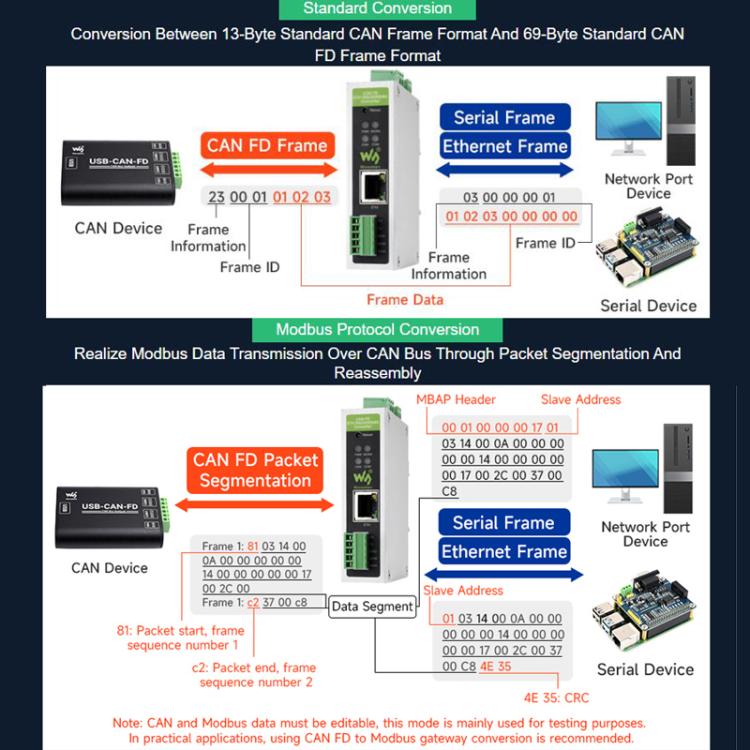

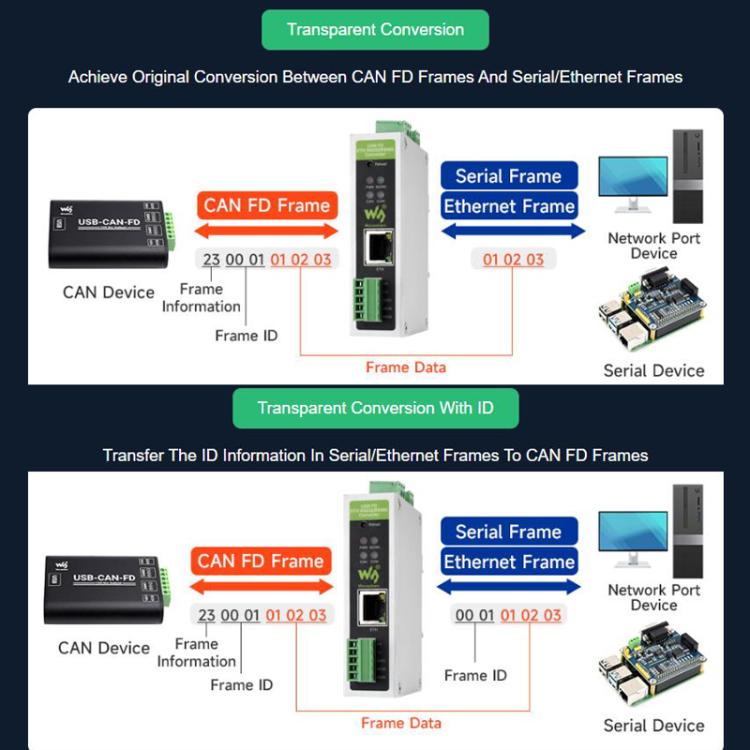

17. Conversion modes: transparent conversion, transparent conversion with ID, standard conversion, Modbus conversion, customized header and footer conversion
18. CAN ID: supports standard frame, extended frame

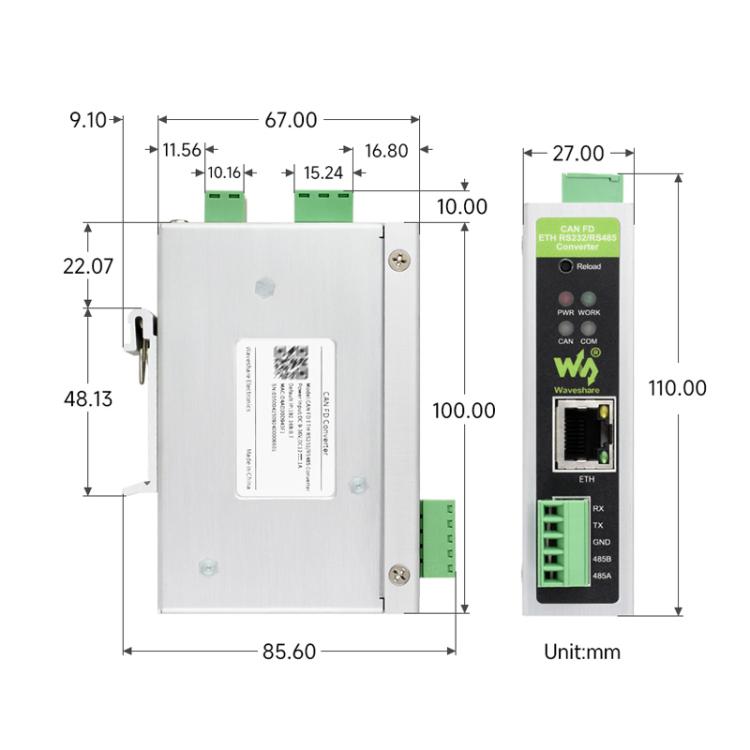

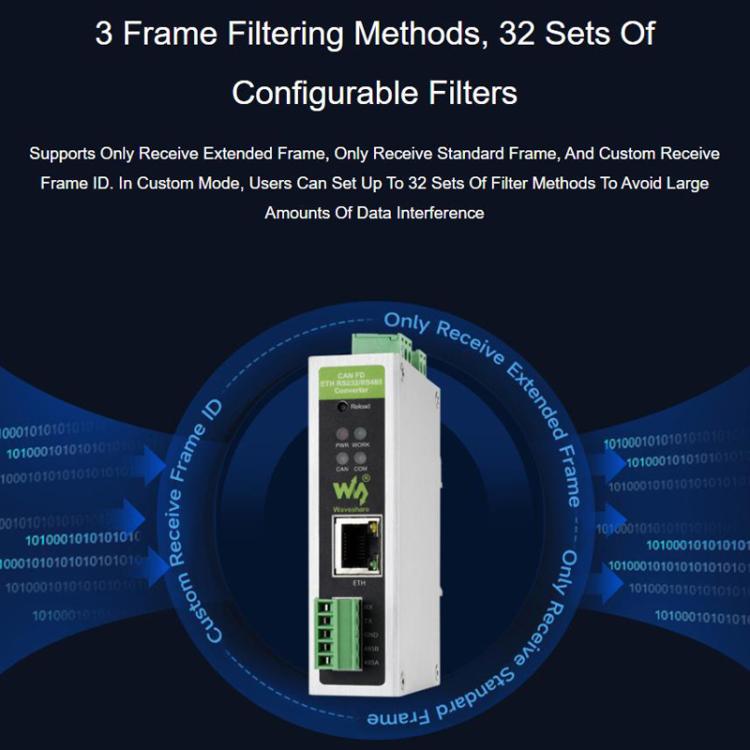

19. Frame ID filtering: supports standard frames only, extended frames only, customized input frame IDs (up to 32 groups)
20. Packed frame number and time: support customized packed frame number, customized packed time (network port)
21. Conversion direction: support bi-directional conversion, only serial/network port to CAN, only CAN to serial/network port
22. Firmware upgrade: support the upper computer firmware upgrade

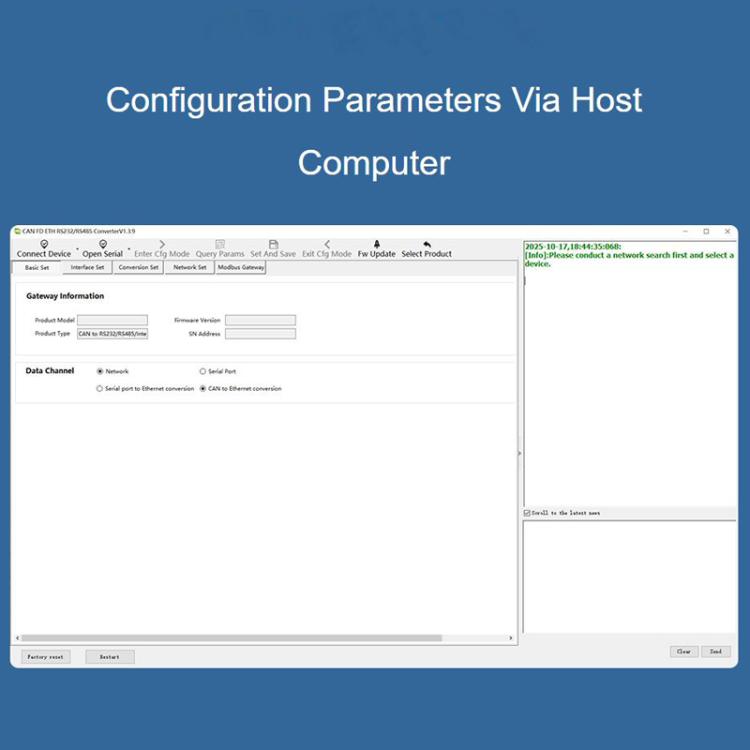

23. Parameter configuration: AT command, host computer software configuration

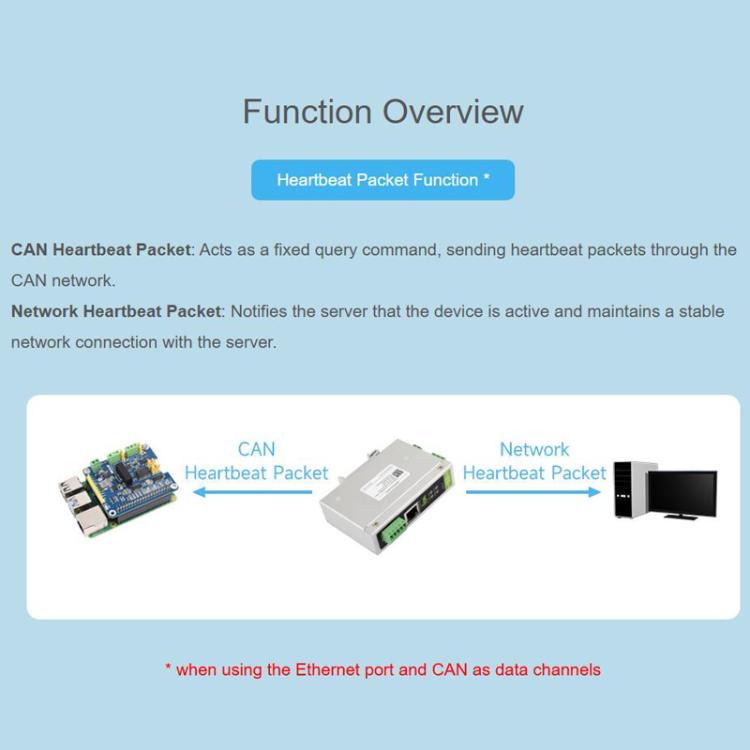

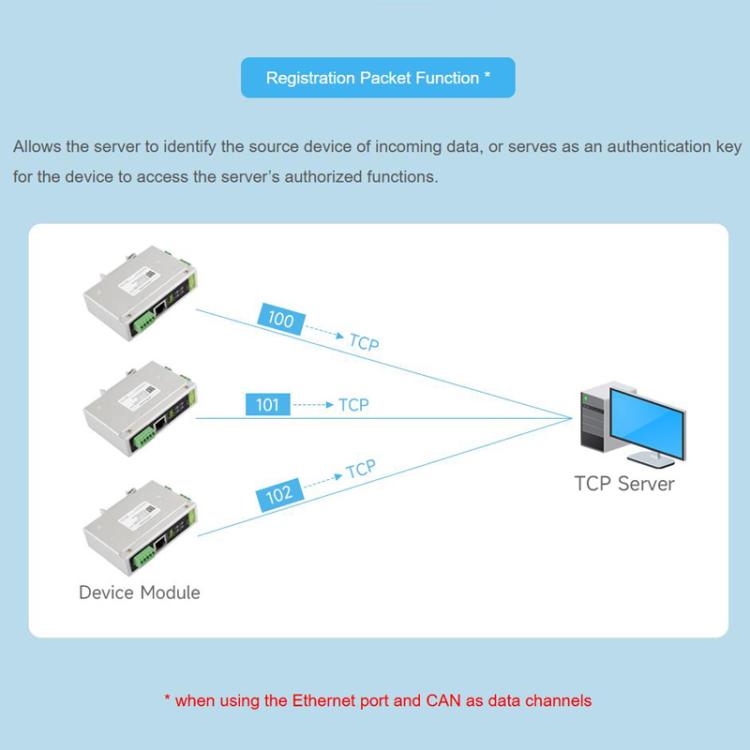

24. Other functions: support for heartbeat packets, registration packets; normal, loopback, listen-only mode (network port)
