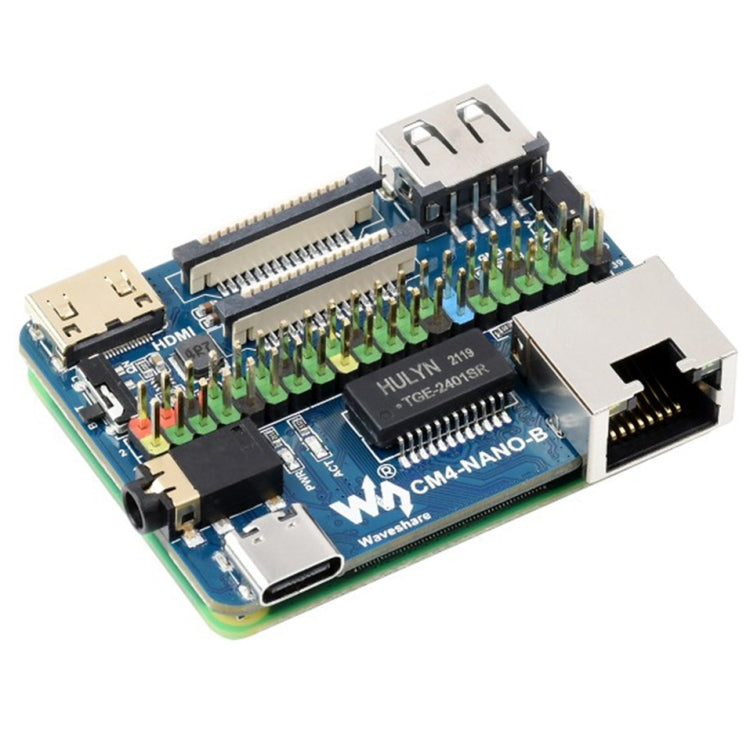

Waveshare Nano Base Board B for Raspberry Pi CM4

Name: Waveshare Nano Base Board B for Raspberry Pi CM4
Brand: WAVESHARE
SKU: DIY0256
Price: 469.00 ZAR
Availability: InStock

R 469.00

Sale Sold out

FREE DELIVERY on all orders.

Quantity

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Suitable for evaluating the Raspberry Pi CM4 Or being integrated into end products

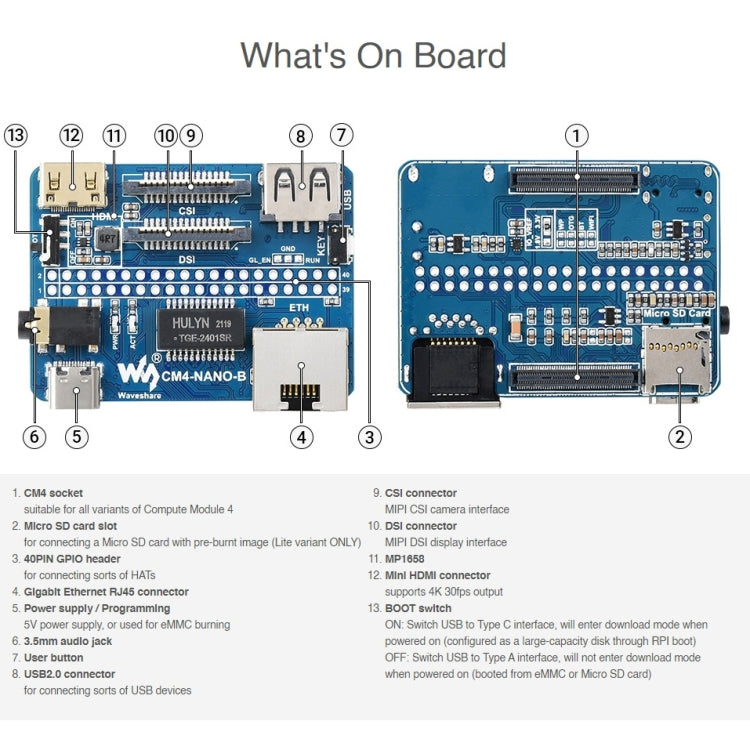

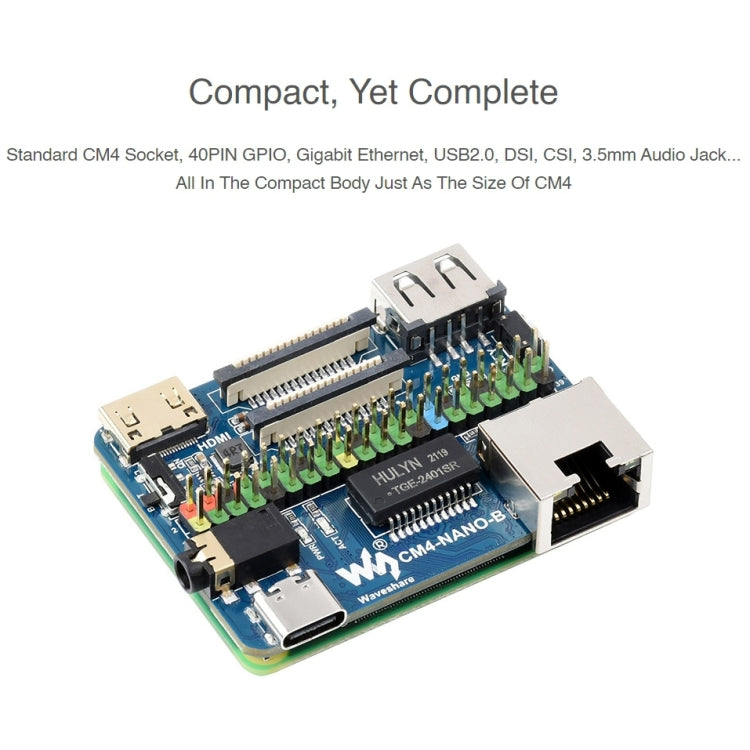

2. Standard CM4 socket, 40PIN GPIO, gigabit ethernet, USB2.0, DSI, CSI, 3.5mm Audio Jack...
3. All in the compact body just as the size of CM4

Specifications:
1. CM4 socket: Suitable for all variants of Compute Module 4
2. Networking: Gigabit Ethernet RJ45 connector
3. Connector: Raspberry Pi 40PIN GPIO header x 1
4. USB: USB 2.0 Type A connector x 1
5. Display: MIPI DSI port x 1 (15pin 1.0mm FPC connector)
6. Camera: MIPI CSI-2 port x 1 (15pin 1.0mm FPC connector)
7. Video: Mini HDMI port x 1, supports 4K 30fps output
8. Audio: 3.5mm jack

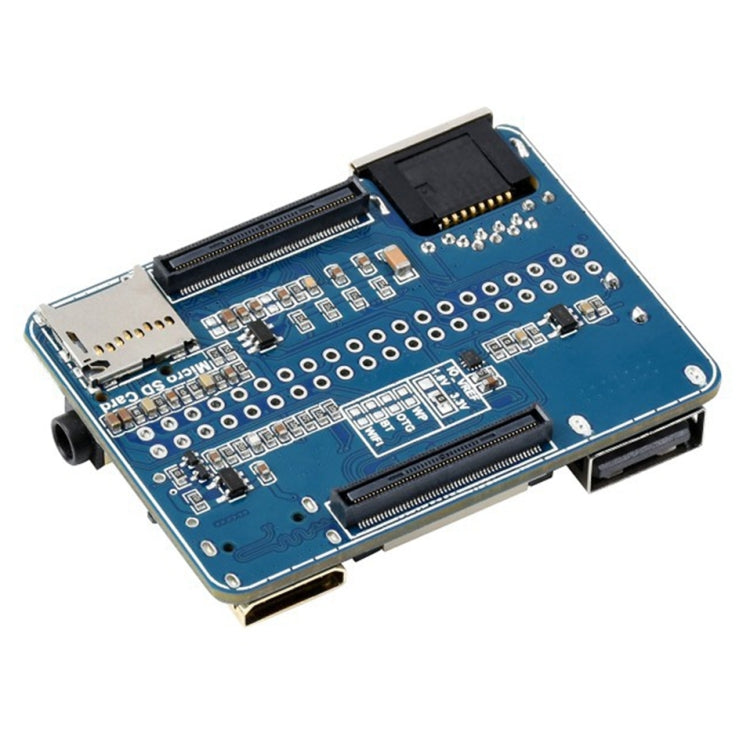

9. Storage: Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
10. Power input: 5V

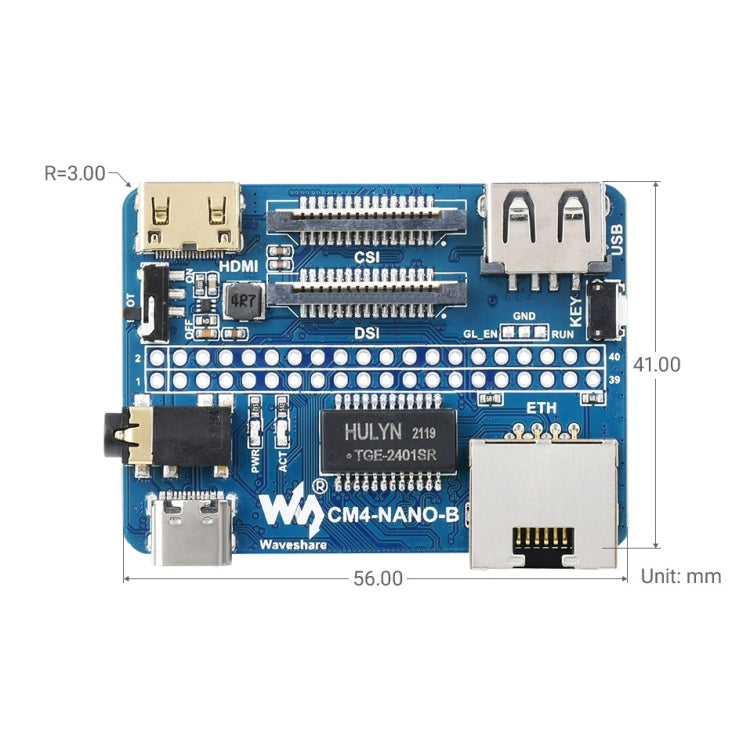

11. Dimension: 56 x 41mm

Package list:
1. CM4-NANO-B x 1
3. 2*20PIN color-coded straight pinheader x 1
