Waveshare Raspberry Pi PoE+ HAT Ethernet Expansion Board for Raspberry Pi 3B+/4B

• Product type: Modules Expansions Accessories
• Brand: WAVESHARE

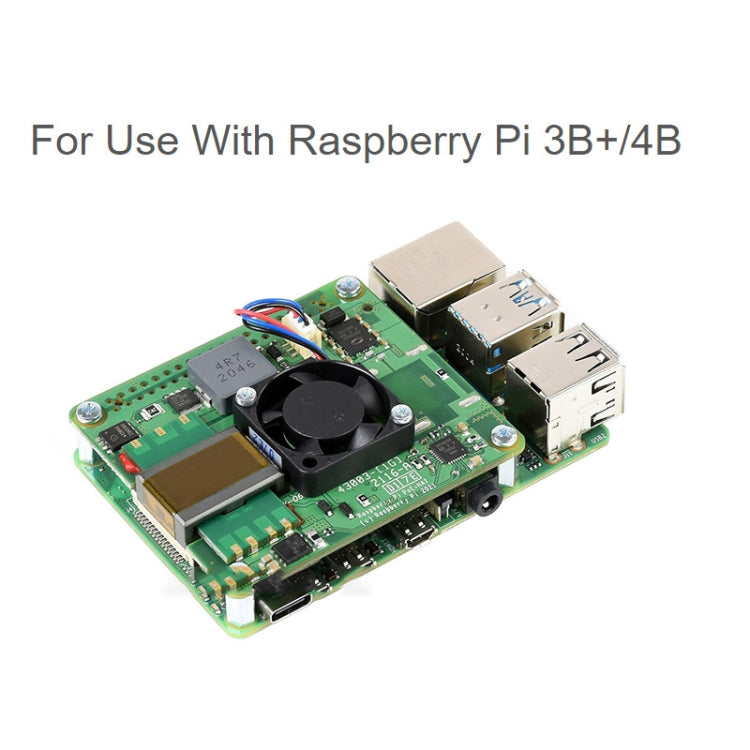

• Compatibility: Raspberry Pi 3B+/4B
• Material: Not specified
• Key feature: Power Over Ethernet functionality
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Electronics Module

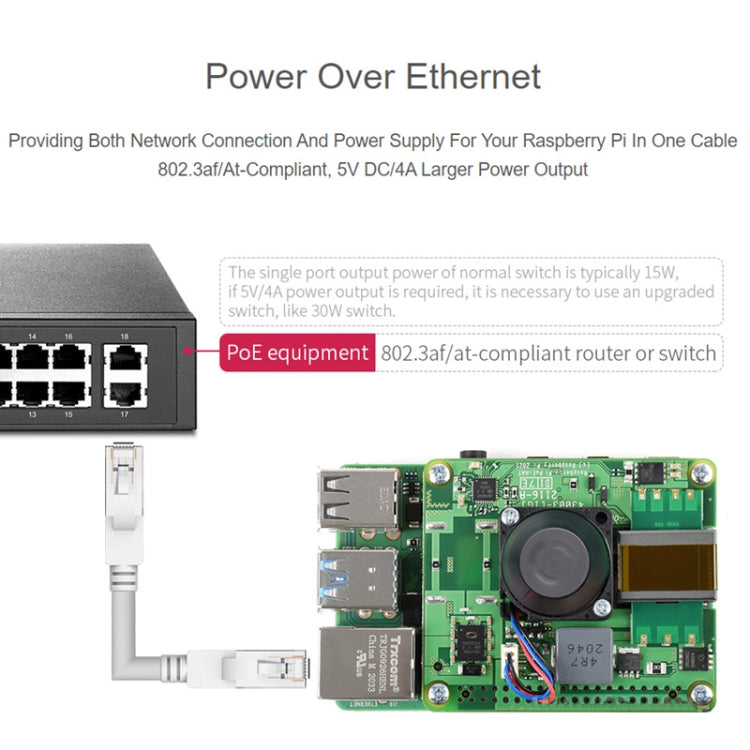

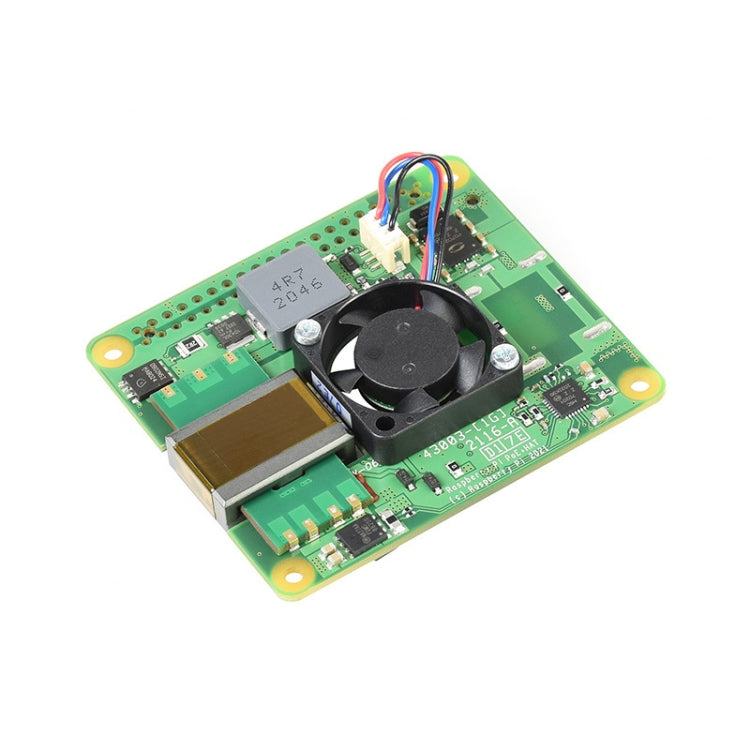

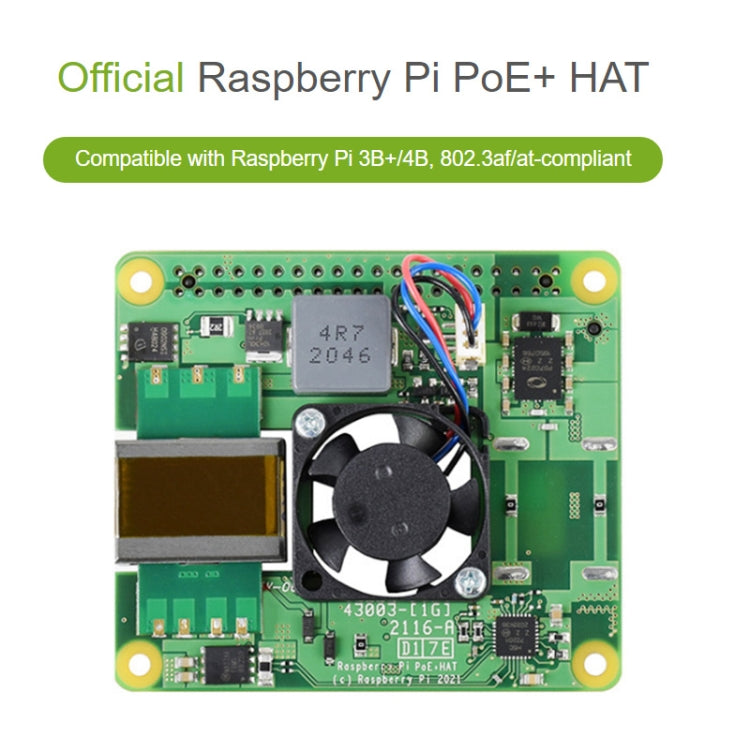

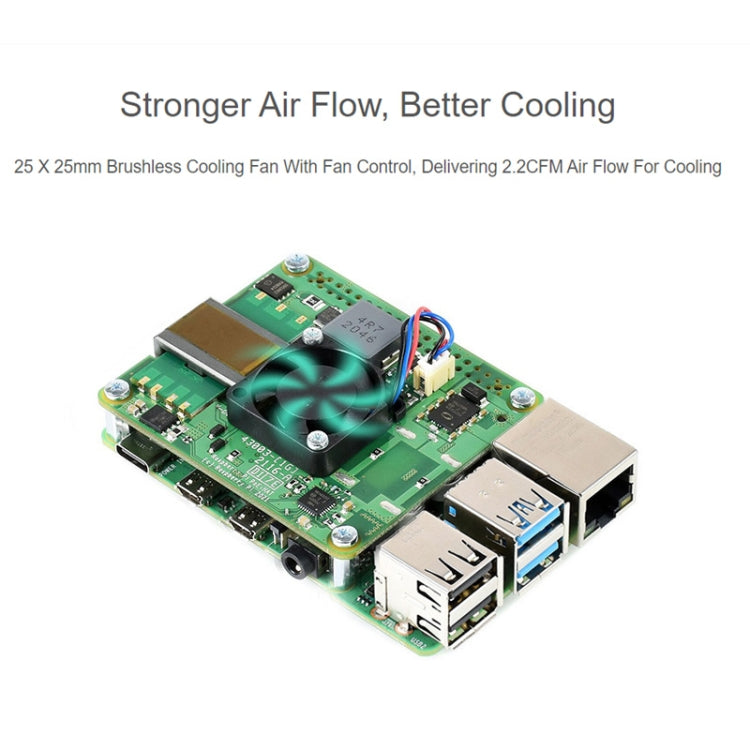

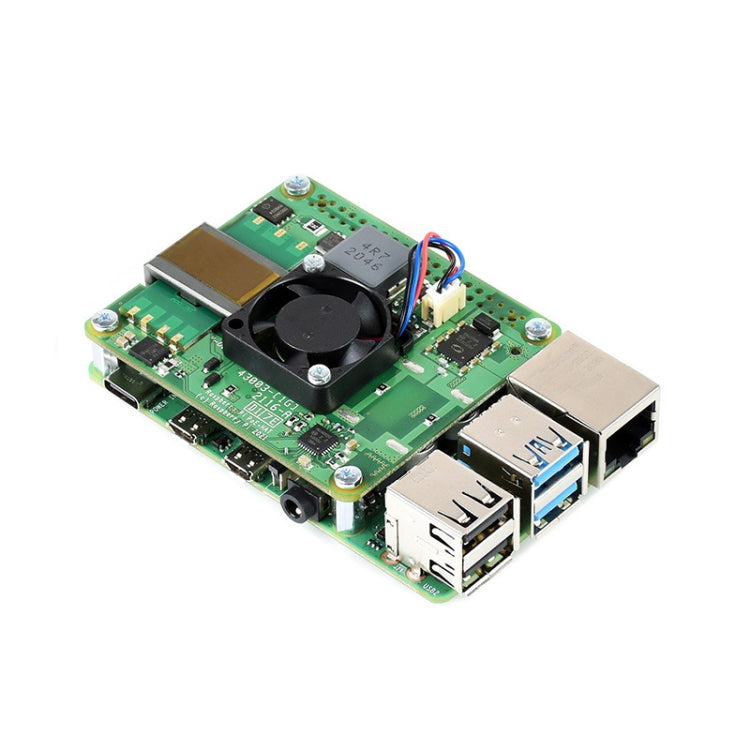

Product Overview1. The Raspberry Pi PoE+ HAT is a Power Over Ethernet (PoE+) accessory for the Raspberry Pi 3B+/4B. Compared to its predecessor Raspberry Pi PoE HAT, it features better cooling effect, implementing the 802.3af/at standard with 5V DC/4A larger power output, providing enough power for both Raspberry Pi 3B+/4B at max load and other peripherals at the same time. 2. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.Specification1. PoE standard: 802.3af/at 2. Input voltage: 37-57 V DC, Class 4 device 3. Output voltage/current: 5V DC/4A 4. Current sense: Yes 5. Transformer design: Planar 6. Fan: Controllable brushless cooling fan, delivering 2.2 CFM for processor cooling 7. Fan size: 25 x 25mm 8. Feature: Fully isolated switched-mode power supply 9. Compatible with: Raspberry Pi 3B+/4BPackage List1. Raspberry Pi PoE+ HAT x1 2. Standoffs pack x1
